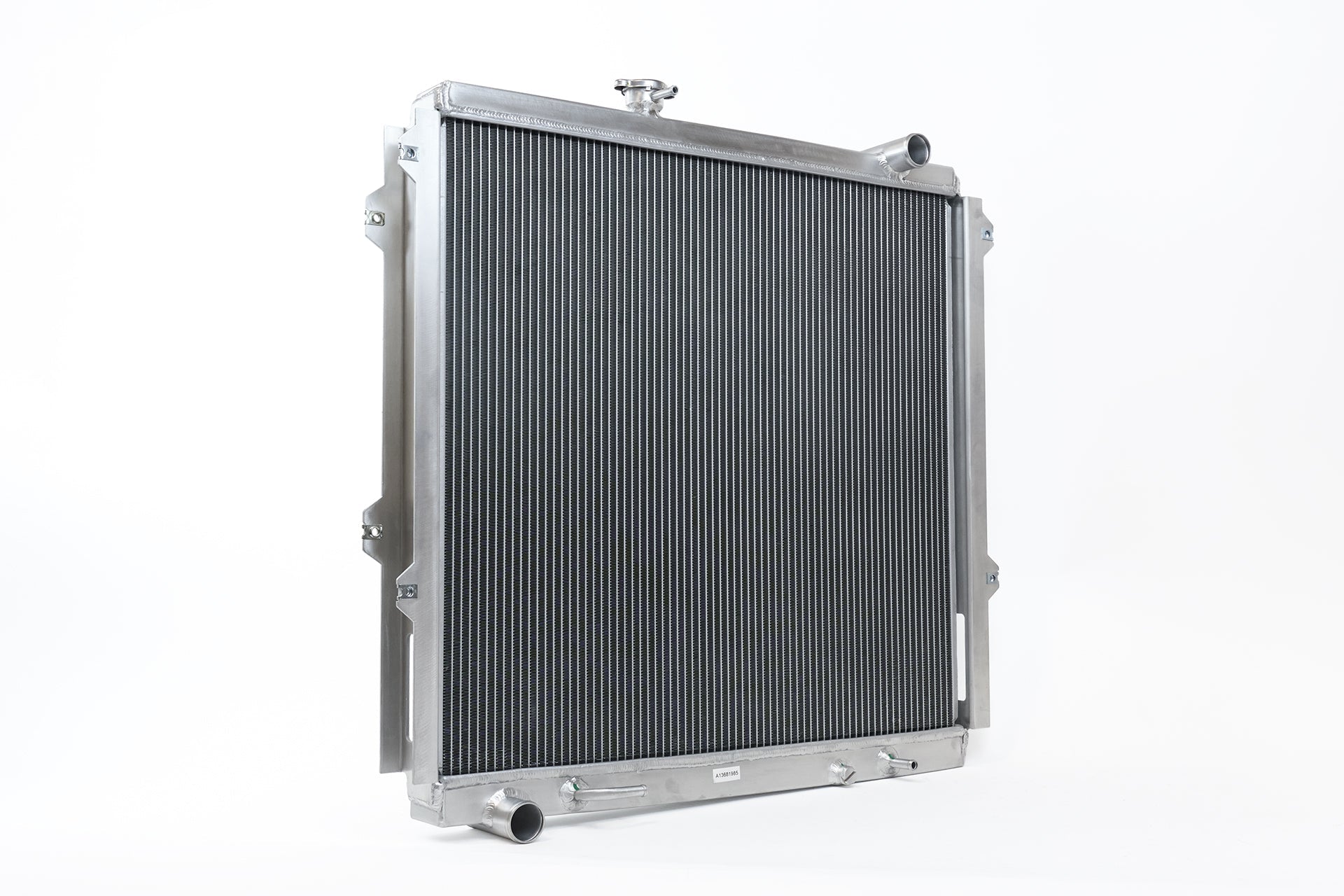

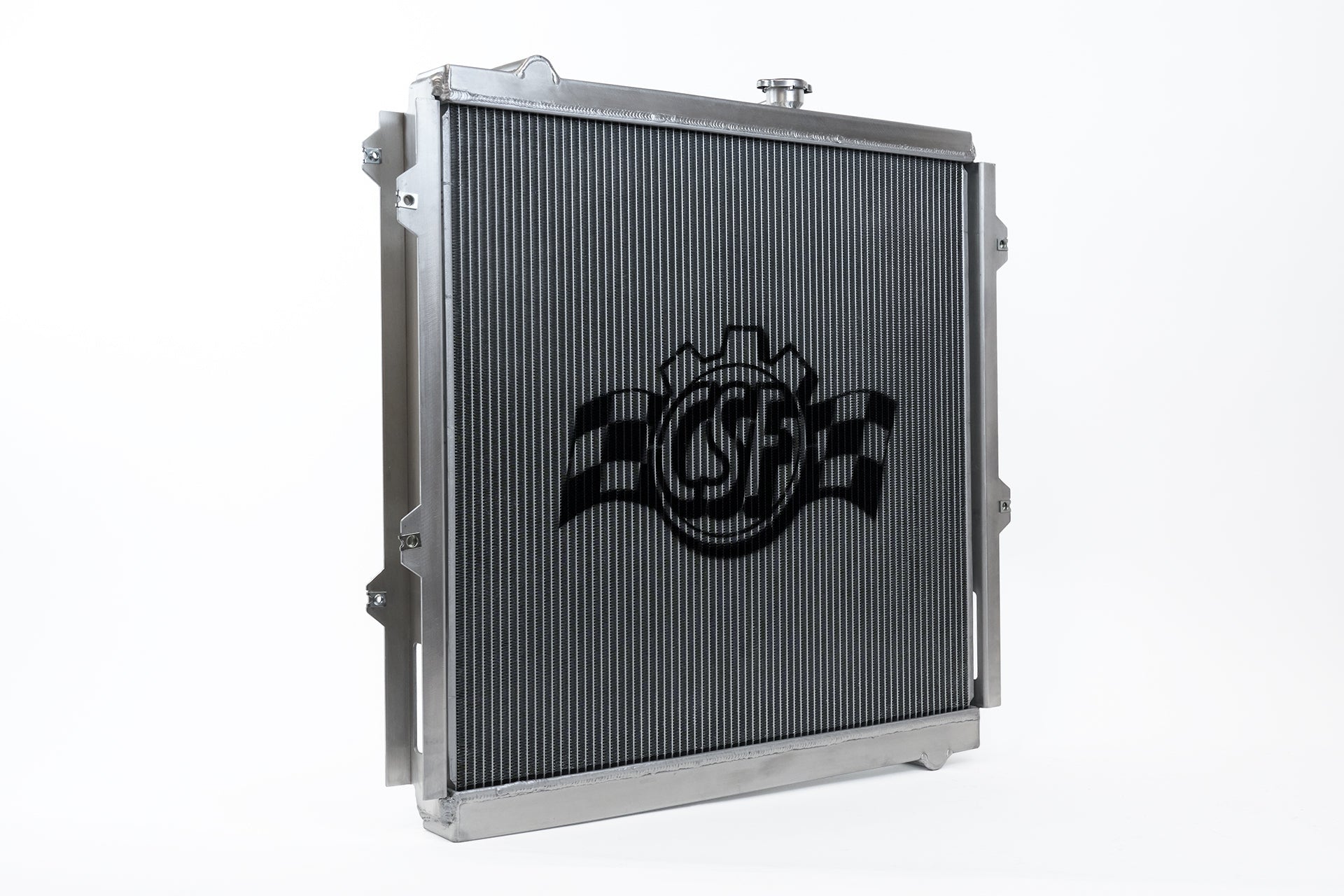

3rd Gen Toyota 4Runner Heavy-Duty All-Aluminum Radiator

The 3rd Gen Toyota 4Runner has been a long time favorite amongst off-road enthusiasts. Since its release, this generation of 4Runner has been regarded as one of the best off-road platform available. Even at over 20 years of age, you will still see countless of these SUVs both around town and on the trails. Despite their legendary reliability and durability, as these SUVs age there is always room for improvement. While the engines will basically run forever, there are plenty of supporting systems that can use some shoring up. The OEM cooling system is fairly robust and can keep up with most daily driven 4Runners. However, this changes a bit once you start throwing bigger tires on them and pushing them to the limit. That's why CSF developed the new Heavy-Duty All-Aluminum Radiator for the 96-02 Toyota 4Runner.

The 2-Row 42mm aluminum core not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes found on many other aluminum radiators. Additionally, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The end tanks are made from high grade aluminum and TIG welded to the core for extra strength. In contrast, the OEM crimped onto plastic end tank design is much weaker and creates a weak point where failure is more likely. Because the CSF radiator is designed as a true plug-and-play drop-in fit application, installation requires absolutely no modifications, trimming, or cutting. CSF even includes pre-cut double sided adhesive foam strips to help seal the fan shroud against the radiator. This improves airflow efficiency off the fan. In addition, the CSF radiator features a built-in transmission fluid cooler. The transmission cooler is a heavy-duty high-performance 5 plate design that connects to the OEM hoses. This upgraded built in cooler is great dealing with the added heat and stress from towing, low gear crawling, and vehicles equipped with oversized tires. While plenty of people understand the impacts of oversized tires, it is always good to provide additional information. By increasing the diameter of your tires, you are reducing the effective gear ratio. This means the engine and transmission have to work harder to move the tires. Obviously this will end up generating excess heat, and the CSF radiator is designed to handle it.

Features

• 2-Row - 42mm Ultra-High-Performance Core

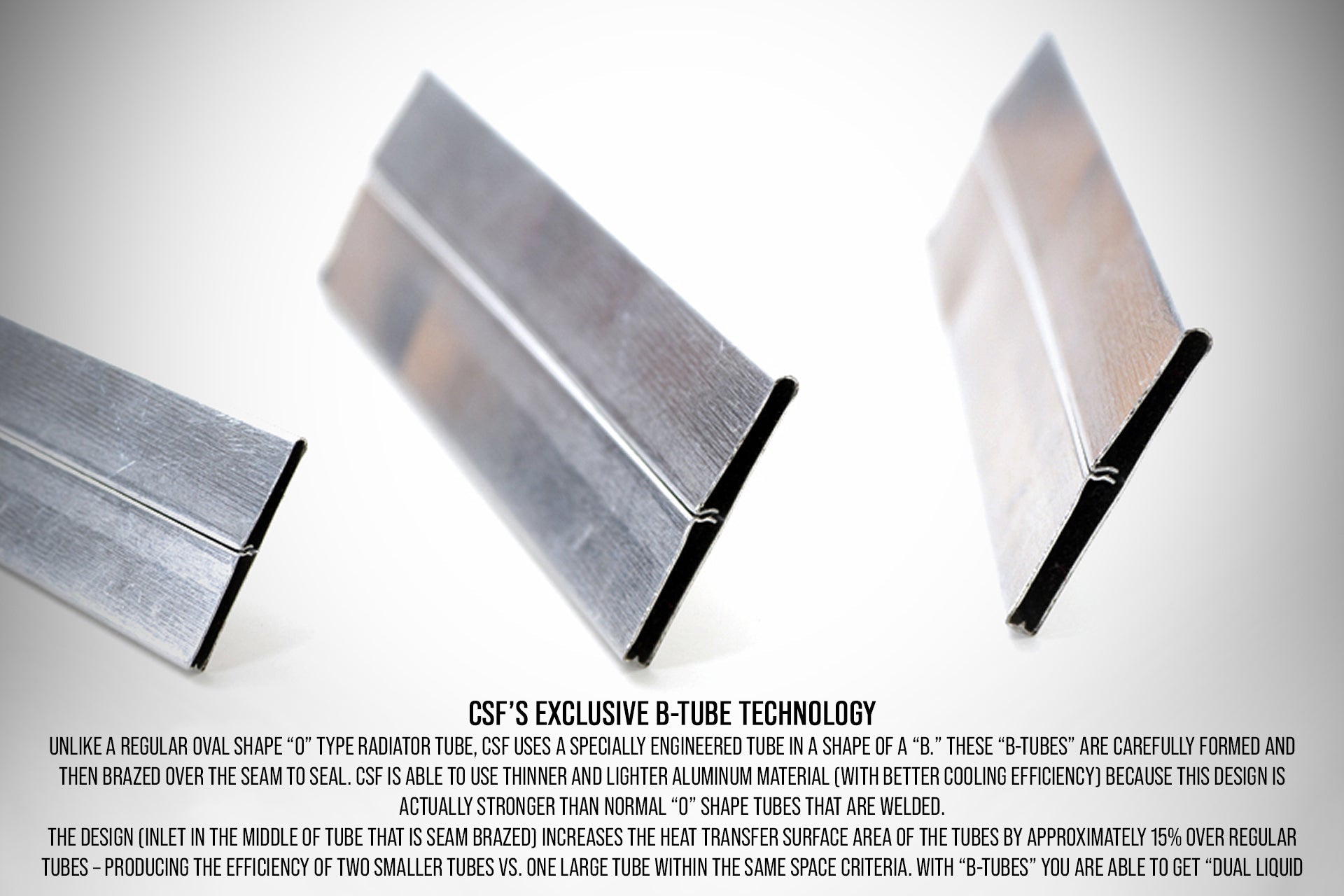

• Cooling Tubes with CSF's Exclusive B-Tube Technology

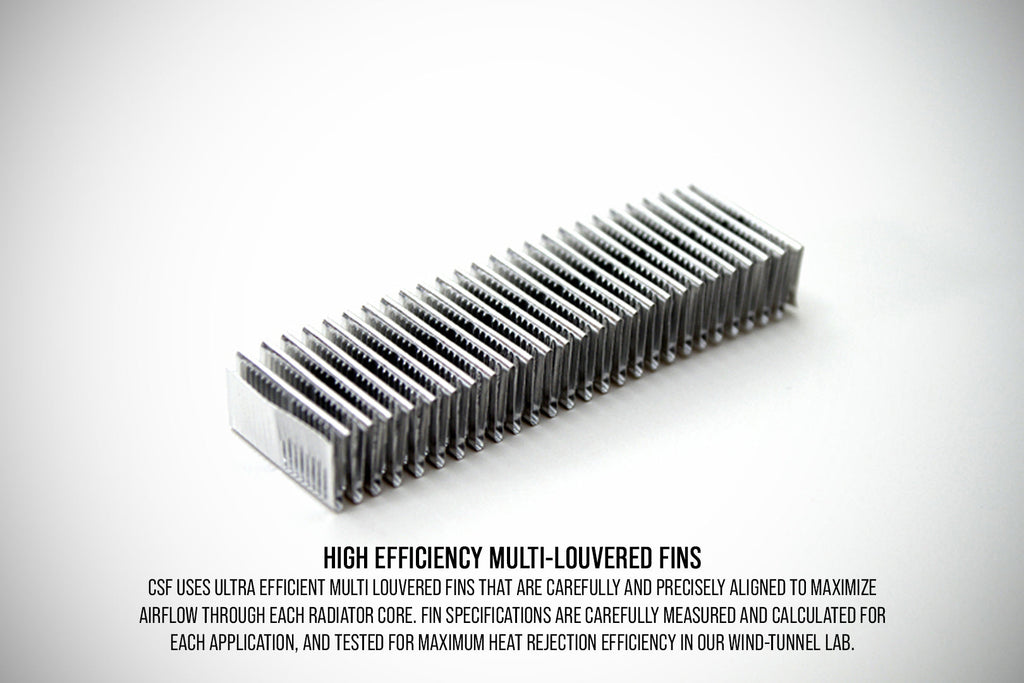

• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

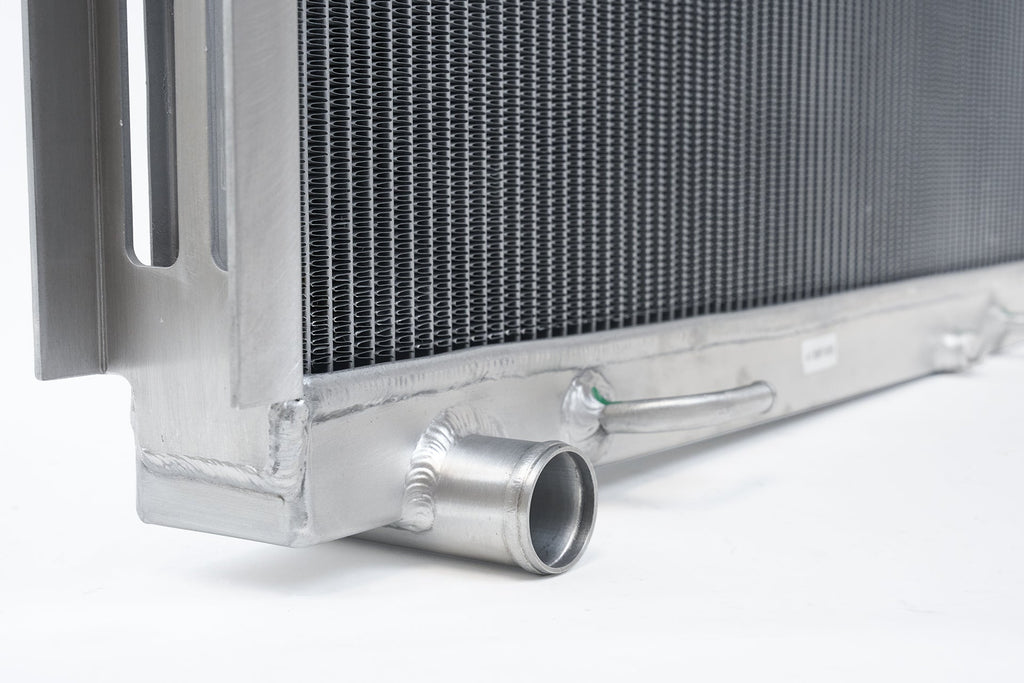

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

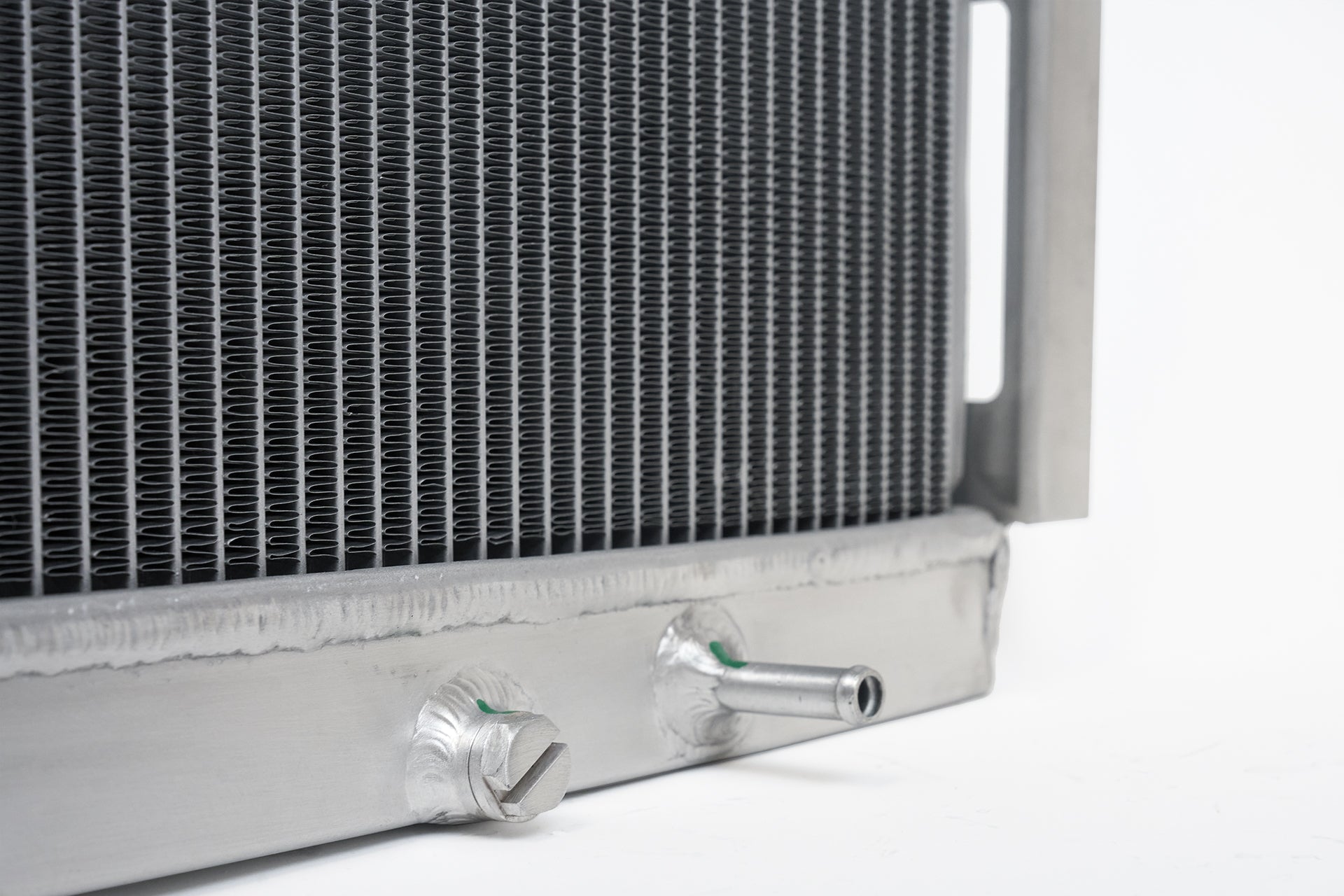

• Built in Heavy-Duty High-Performance 5 Plate Transmission Oil Cooler in bottom tank

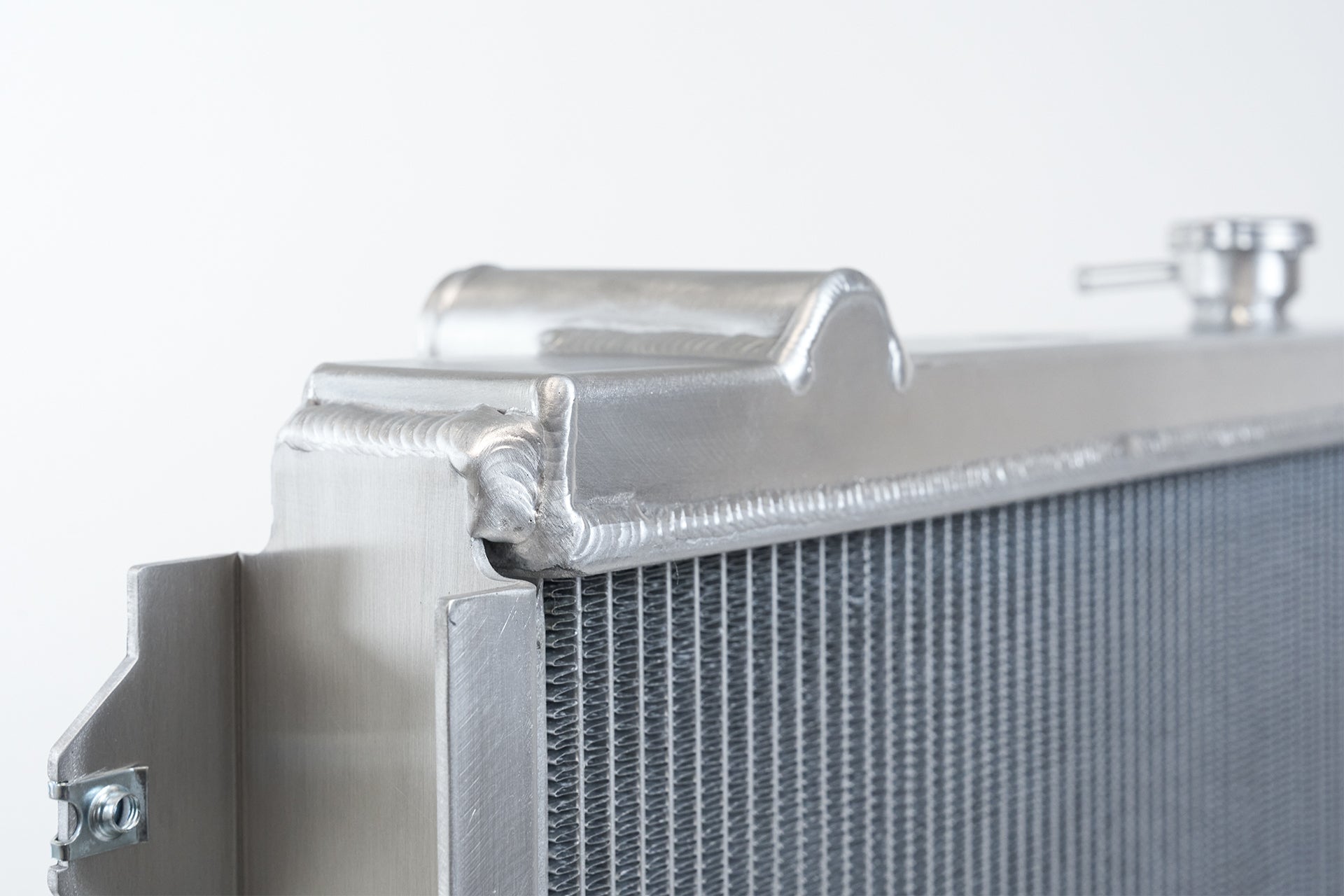

• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications

OEM Part Numbers

• Toyota: 16410 AZ011 *AT & MT All Years
• Toyota: 16410-AZ011 *AT & MT All Years
• Toyota: 16410AZ011 *AT & MT All Years
• Toyota: 16400 75180 *AT & MT All Years
• Toyota: 16400-75180 *AT & MT All Years
• Toyota: 1640075180 *AT & MT All Years
• Toyota: 16400 75160 *AT & MT All Years
• Toyota: 16400-75160 *AT & MT All Years
• Toyota: 1640075160 *AT & MT All Years
• Toyota: 16410 YZZAJ *AT & MT All Years
• Toyota: 16410-YZZAJ *AT & MT All Years
• Toyota: 16410YZZAJ *AT & MT All Years

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit the CSF Warranty Page

SKU# 7210 Warranty Term: 2 years
