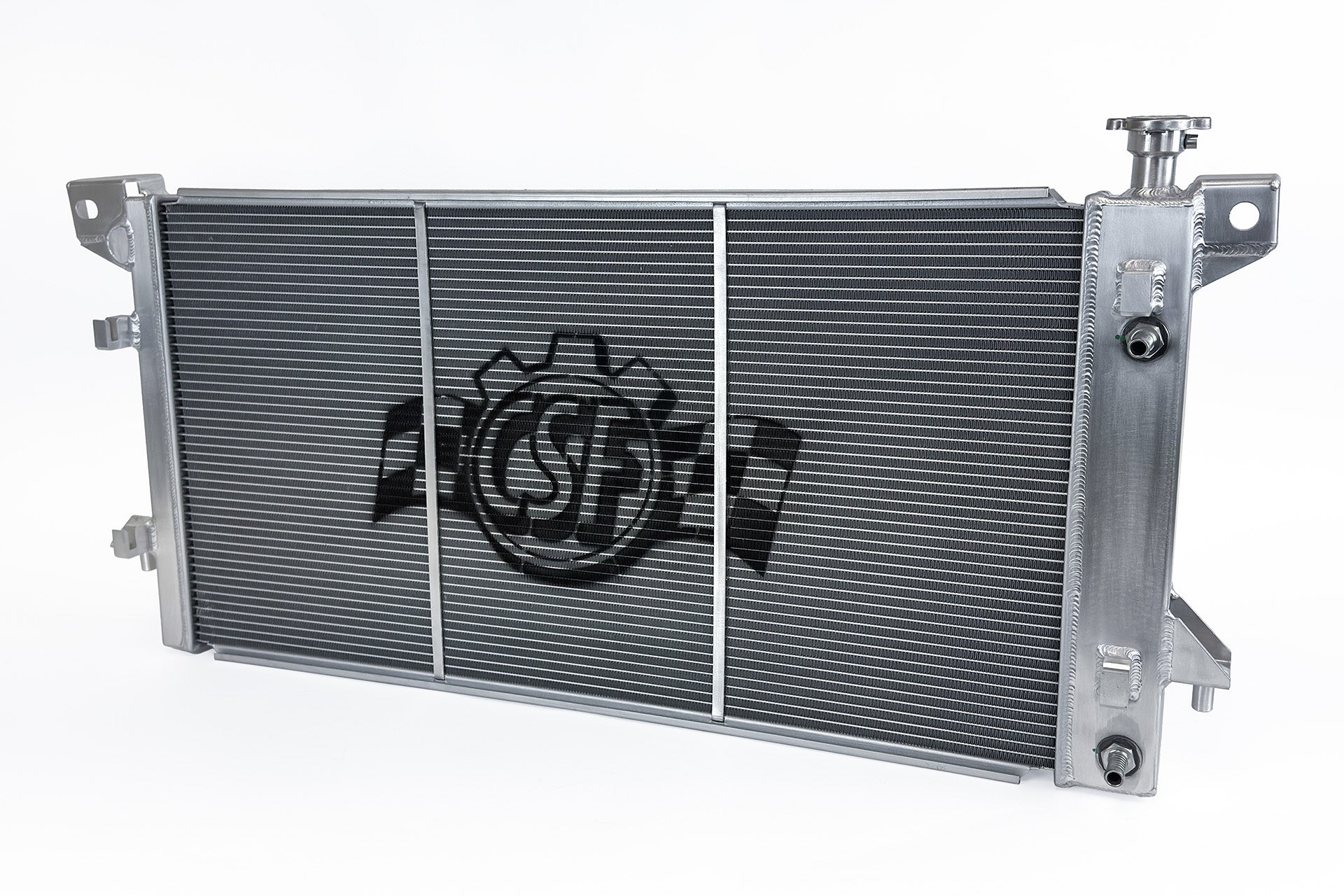

1st Gen Raptor & 12th Gen F-150 Heavy-Duty All-Aluminum Radiator

Upgraded cooling systems are not just for off-road rigs and big haulers. Even basic mods/upgrades like oversized tires can increase strain on your engine in adverse conditions. The CSF Radiator provides extra protection that: Extends engine life by maintaining optimal coolant temperatures. Improves towing capacity by enhancing cooling efficiency. Eliminates performance limitations during demanding driving conditions. Provides peace of mind with superior construction and durability

When engine coolant overheats, performance suffers and you are forced to stop driving or risk a cooling system failure. CSF & Full-Race engineers identified this vulnerability during extensive real-world testing of F-150 and Raptor models under demanding conditions. Having to stop and wait for your engine to cool down is more than just an inconvenience, it is a limitation that shouldn't exist in modern trucks. Especially not a Raptor.

An upgraded radiator helps eliminate the concern of overheating. These advanced designs feature larger 2-Row, 42mm aluminum cores which increase the fluid capacity of the radiators, and greatly improves heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The result is a dramatic temperature reduction under all driving conditions.

The factory radiators for the 12th Generation F-150s and 1st Gen Raptors were definitely ample for daily driving and even light towing. However, even the larger radiator on trucks with the Super Cooling Package can't always keep up with hauling in adverse conditions and/or extreme off-roading. The CSF design offers: 30-90% larger core volume than the factory radiator. 100% TIG welded Aluminum construction (compared to plastic end tanks crimped). Core straps for strength and added rigidity for extreme reliability in demanding conditions. Perfect for daily driving, towing, and off-road adventures.

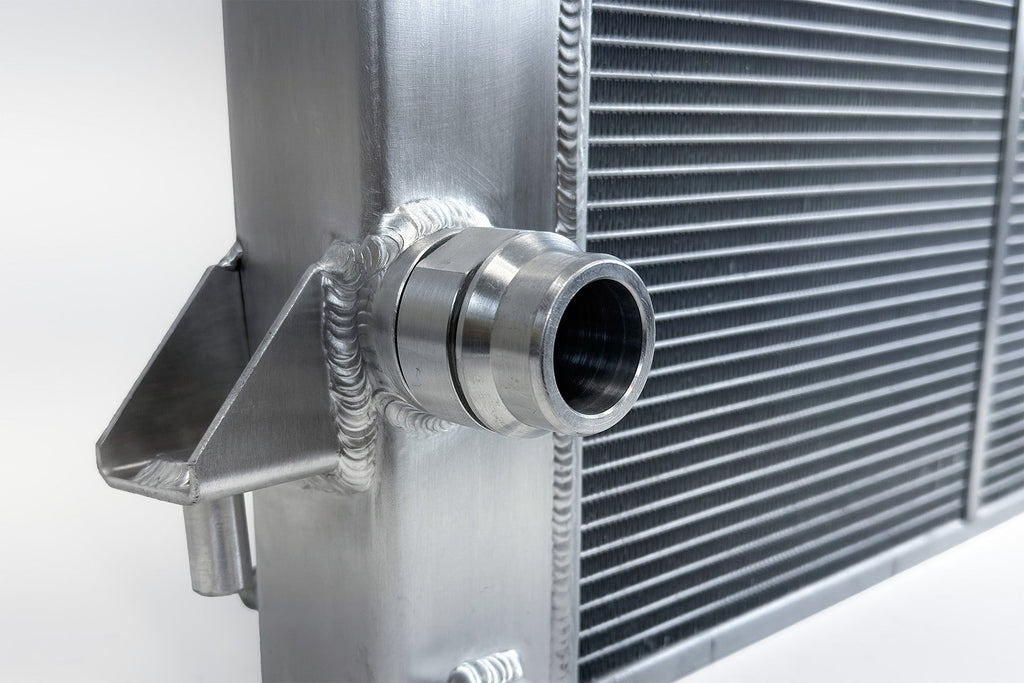

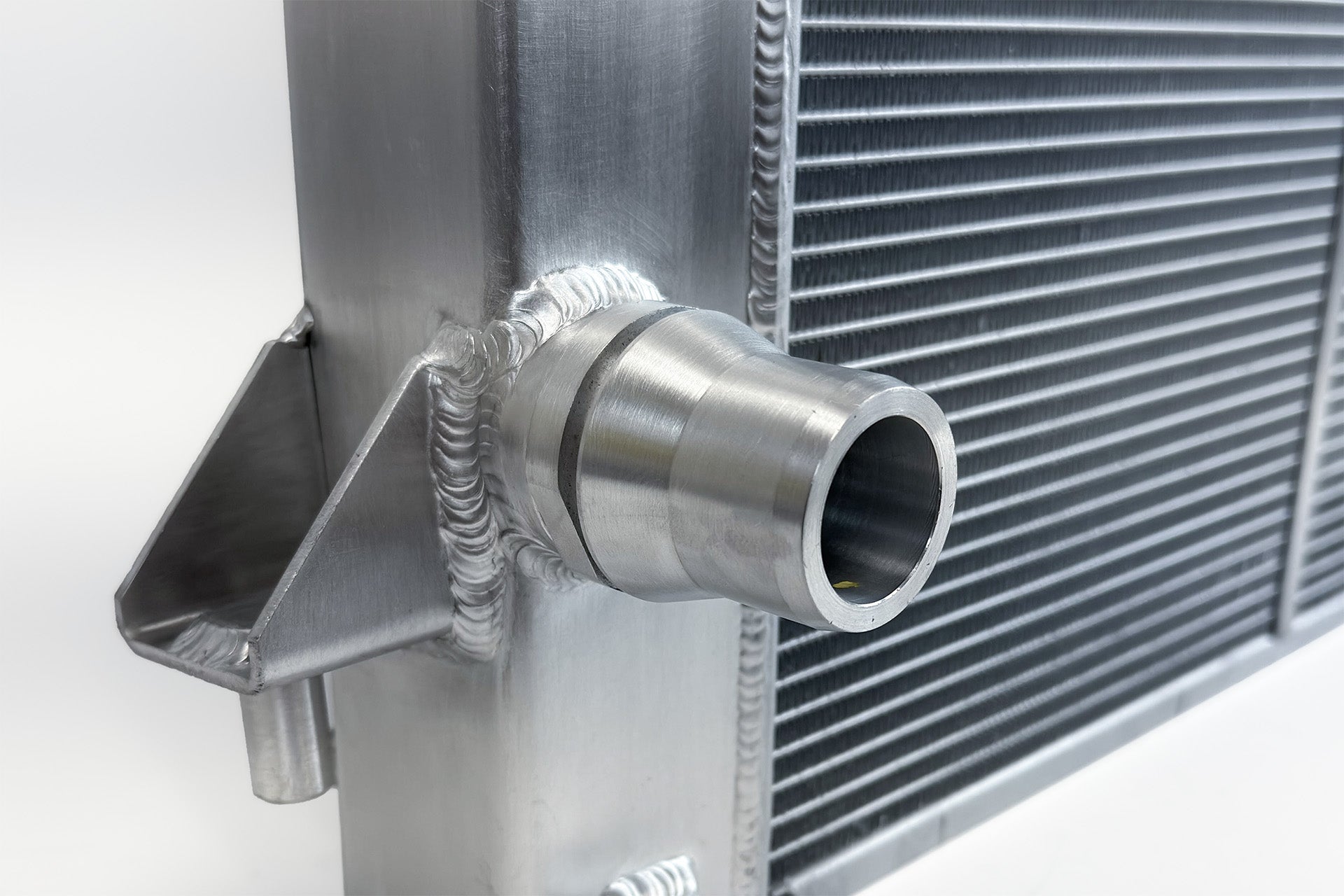

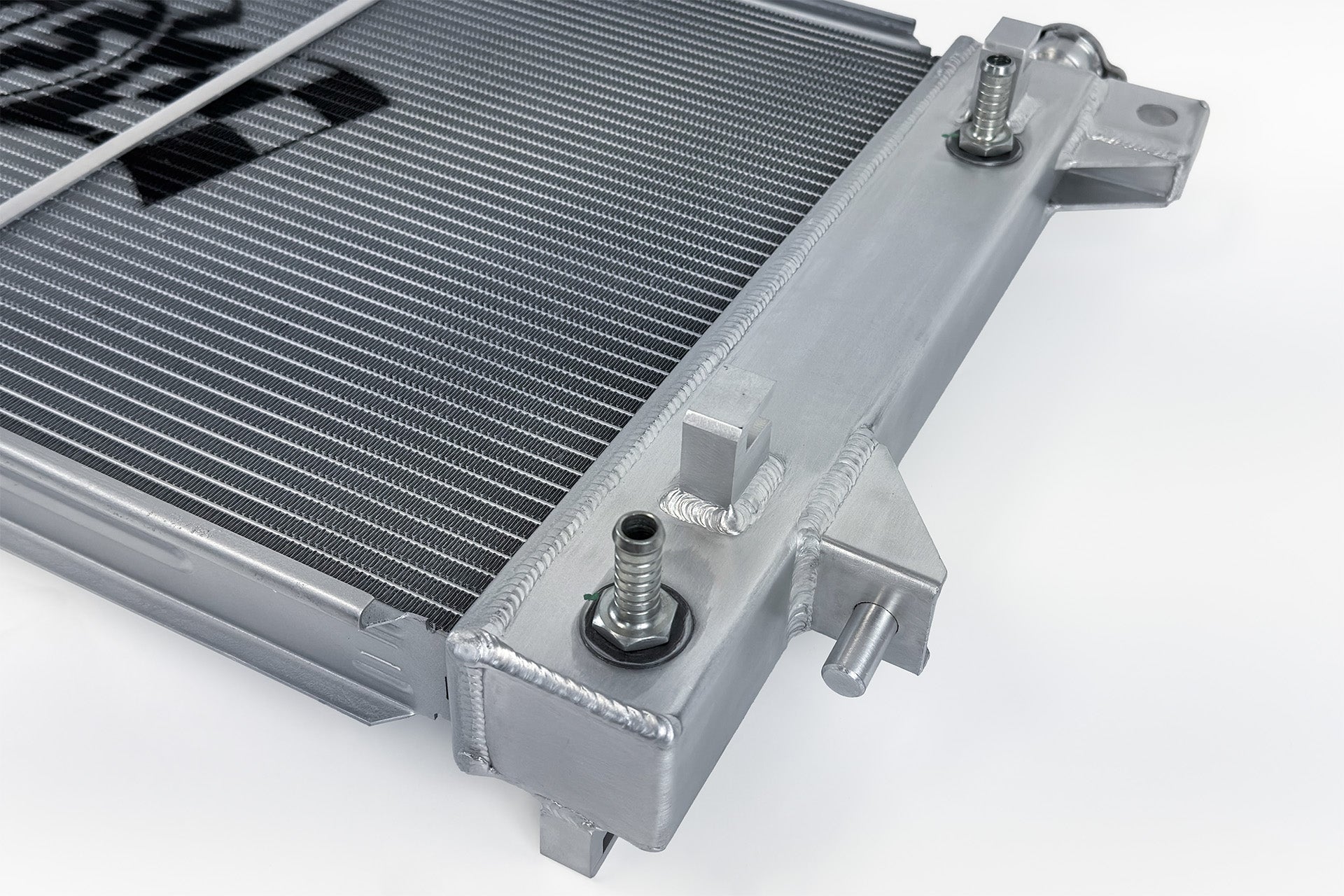

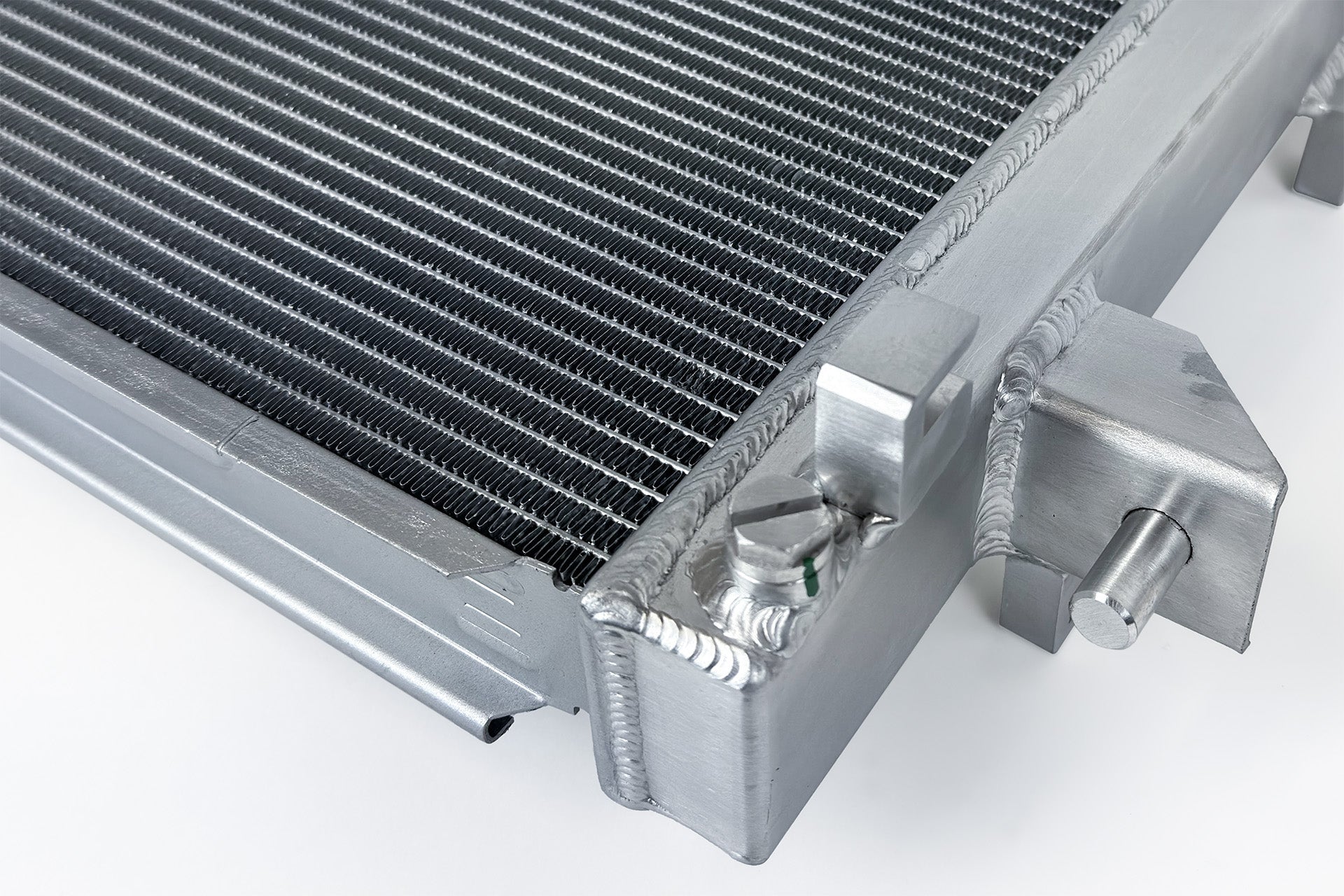

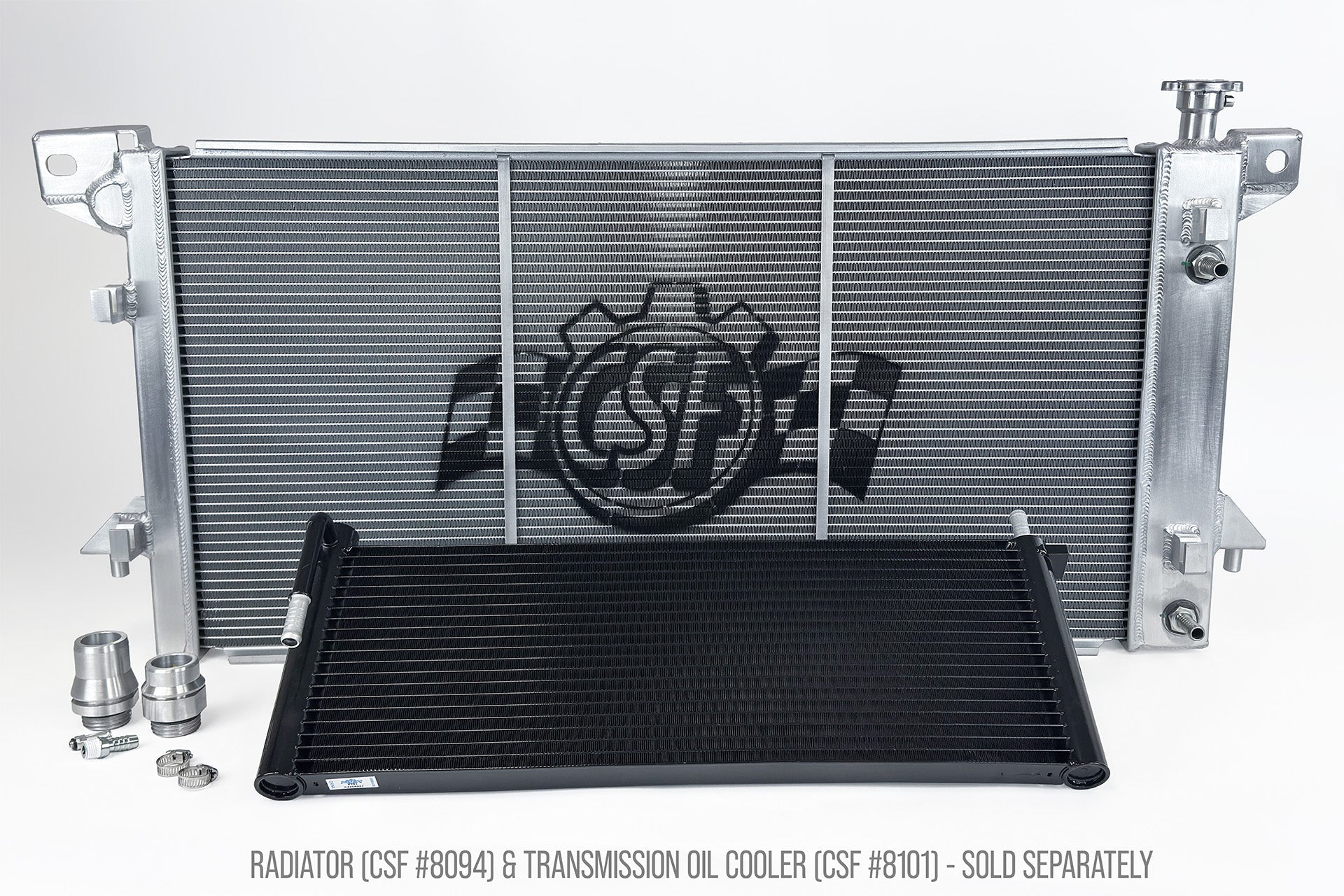

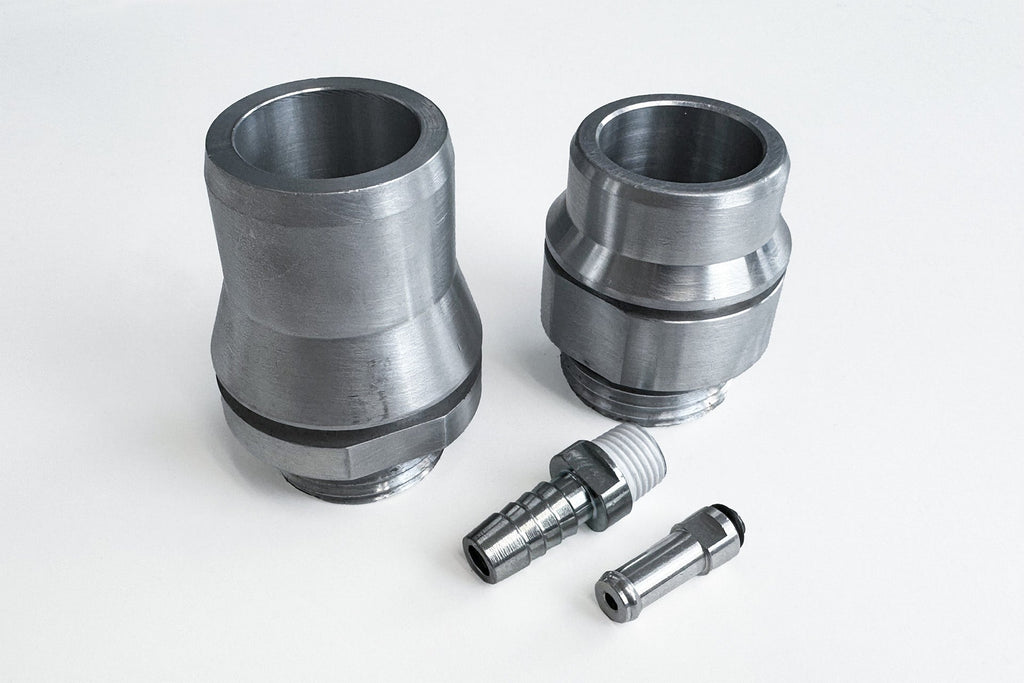

CSF Designed the radiator with modular fittings for a larger application range. There are two fittings for the lower radiator connection. Simply match yours to one of the two options and screw it in place. There are two plugs and barb fittings as well for the two different reservoir designs. This allows you to set up the radiator to fit any factory configuration, as well as convert to a different type overflow/reservoir.

Features

• 2-Row - 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Pins and Brackets

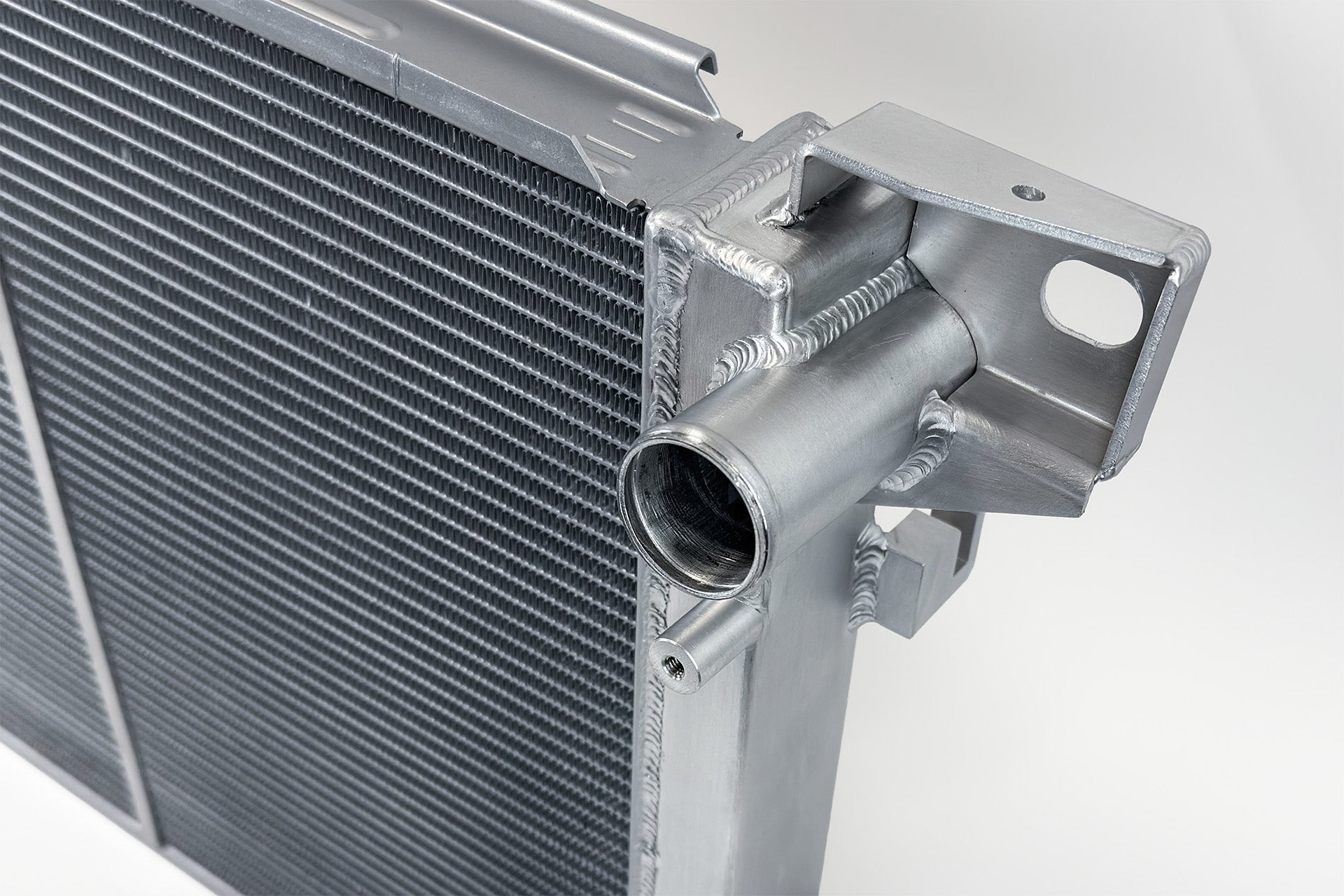

• OEM Style Inlet/Outlet with modular fittings for multi-application fitment
• Core straps for strength and added rigidity

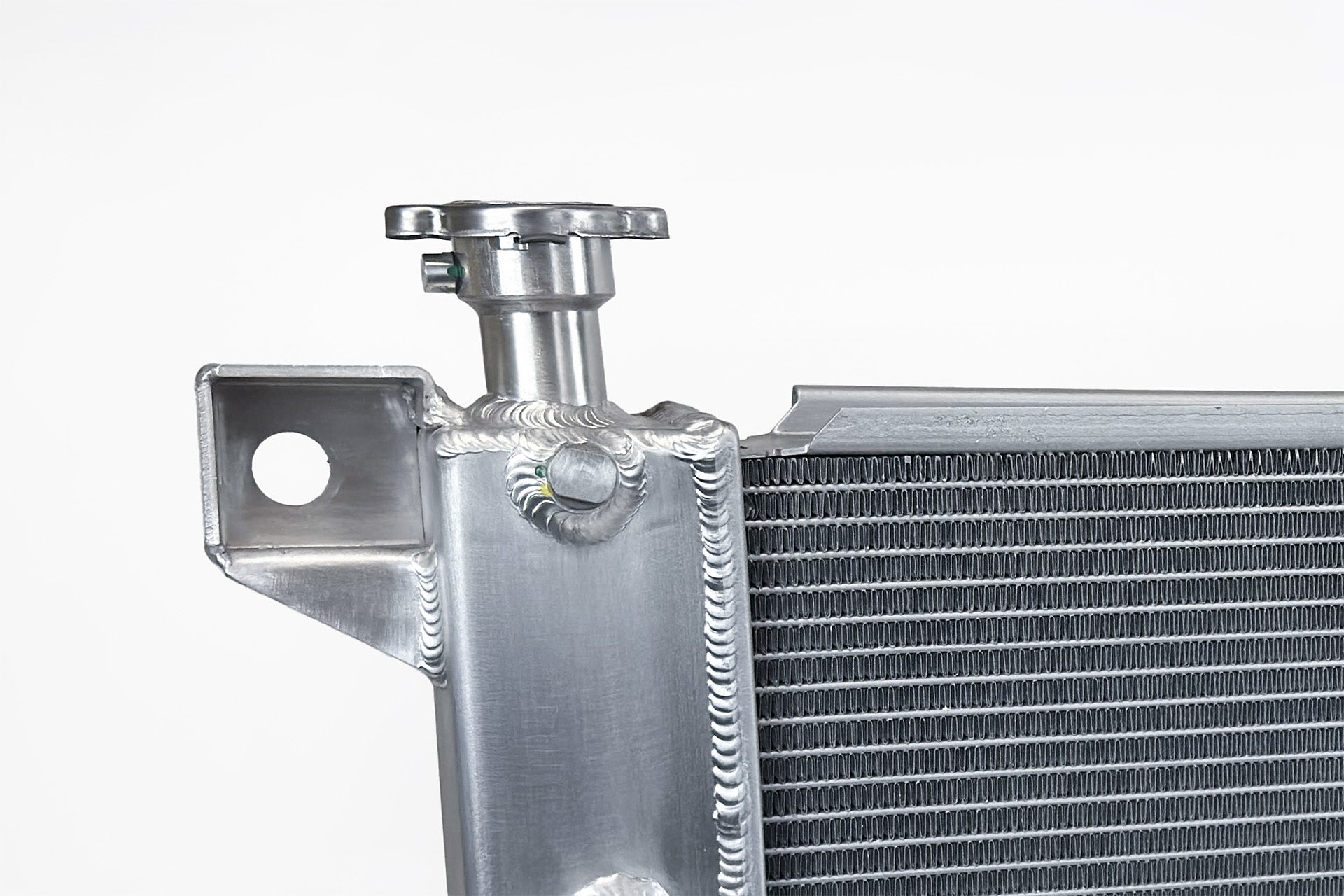

• 100% All Aluminum TIG-Welded Construction
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications

OEM Part Numbers

• Ford: CL3Z 8005 A
• Ford: CL3Z-8005-A
• Ford: CL3Z8005A
• Ford: CL3Z 8005 B
• Ford: CL3Z-8005-B
• Ford: CL3Z8005B
• Ford: CL3Z 8005 C
• Ford: CL3Z-8005-C
• Ford: CL3Z8005C

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit the CSF Warranty Page

SKU# 8094 Warranty Term: 2 years
