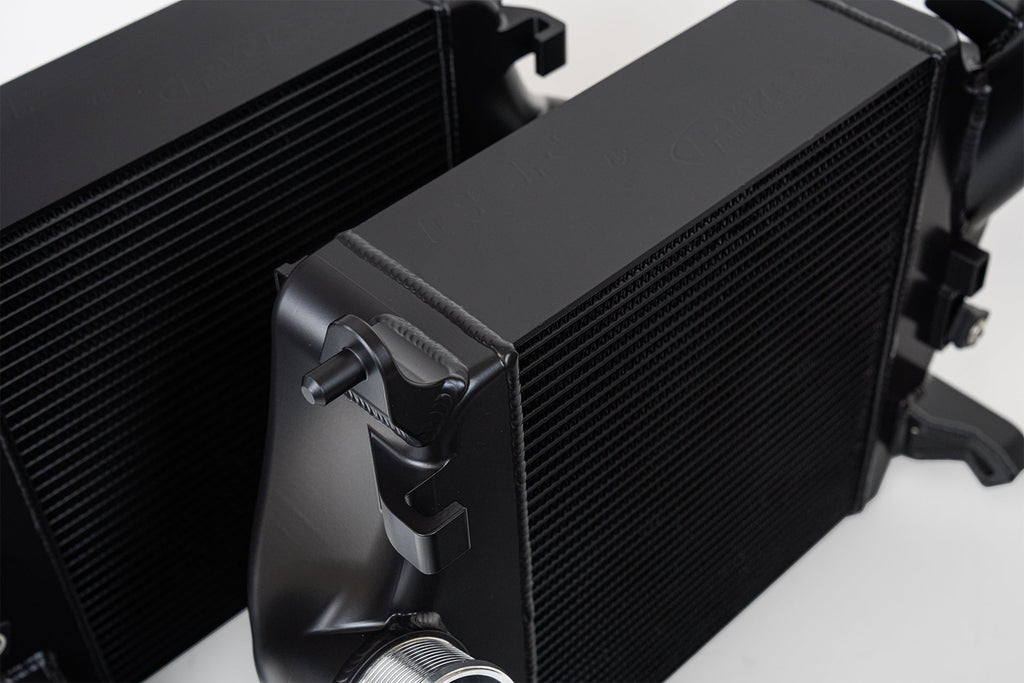

Lamborghini Urus / Audi RS Q8 Twin Intercooler Set - Thermal Dispersion Black

CSF once again has teamed up with leading Southern California VAG specialists, Pacific German from Orange County, CA to design, develop, and test the new intercooler kit on their very own Lamborghini Urus.

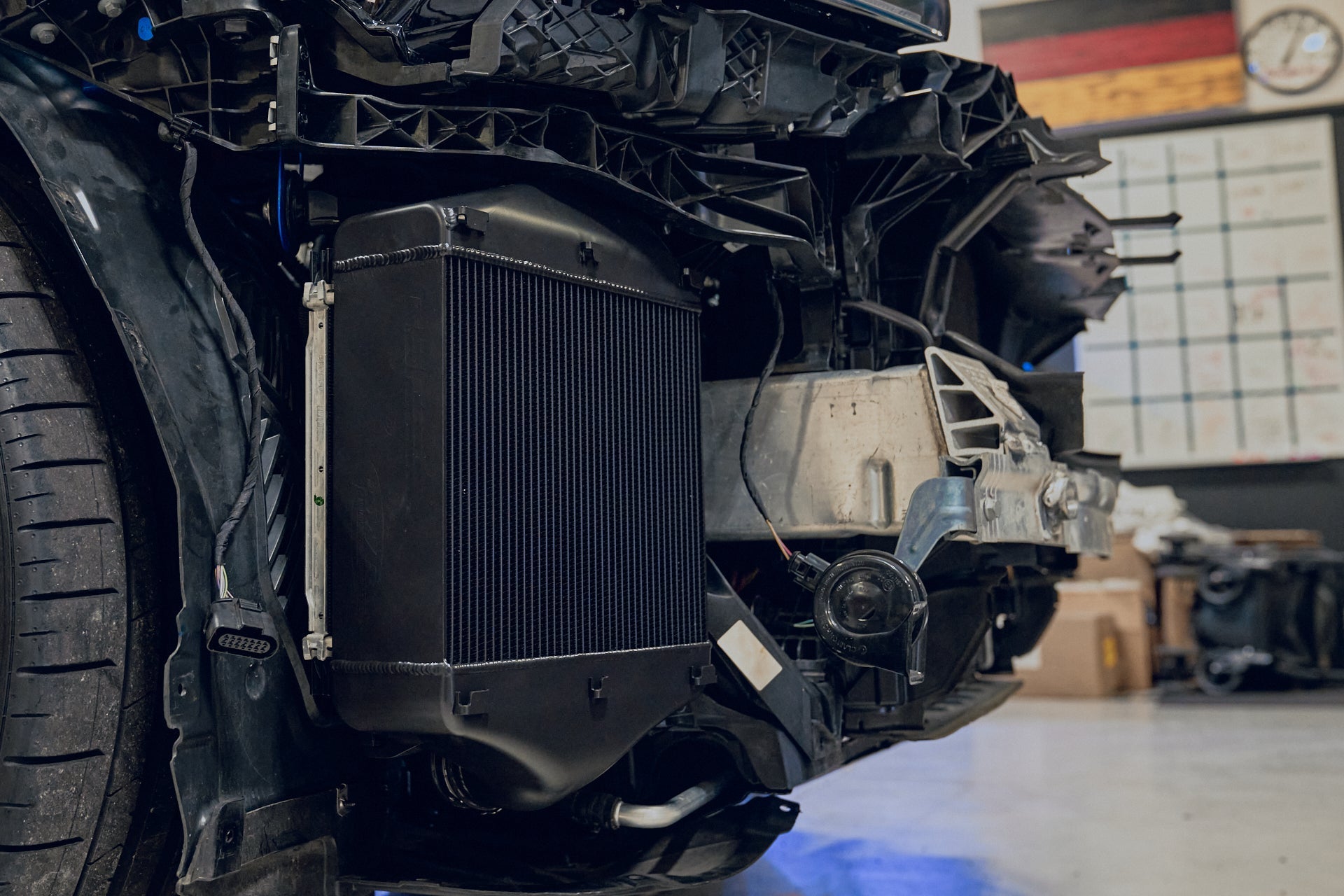

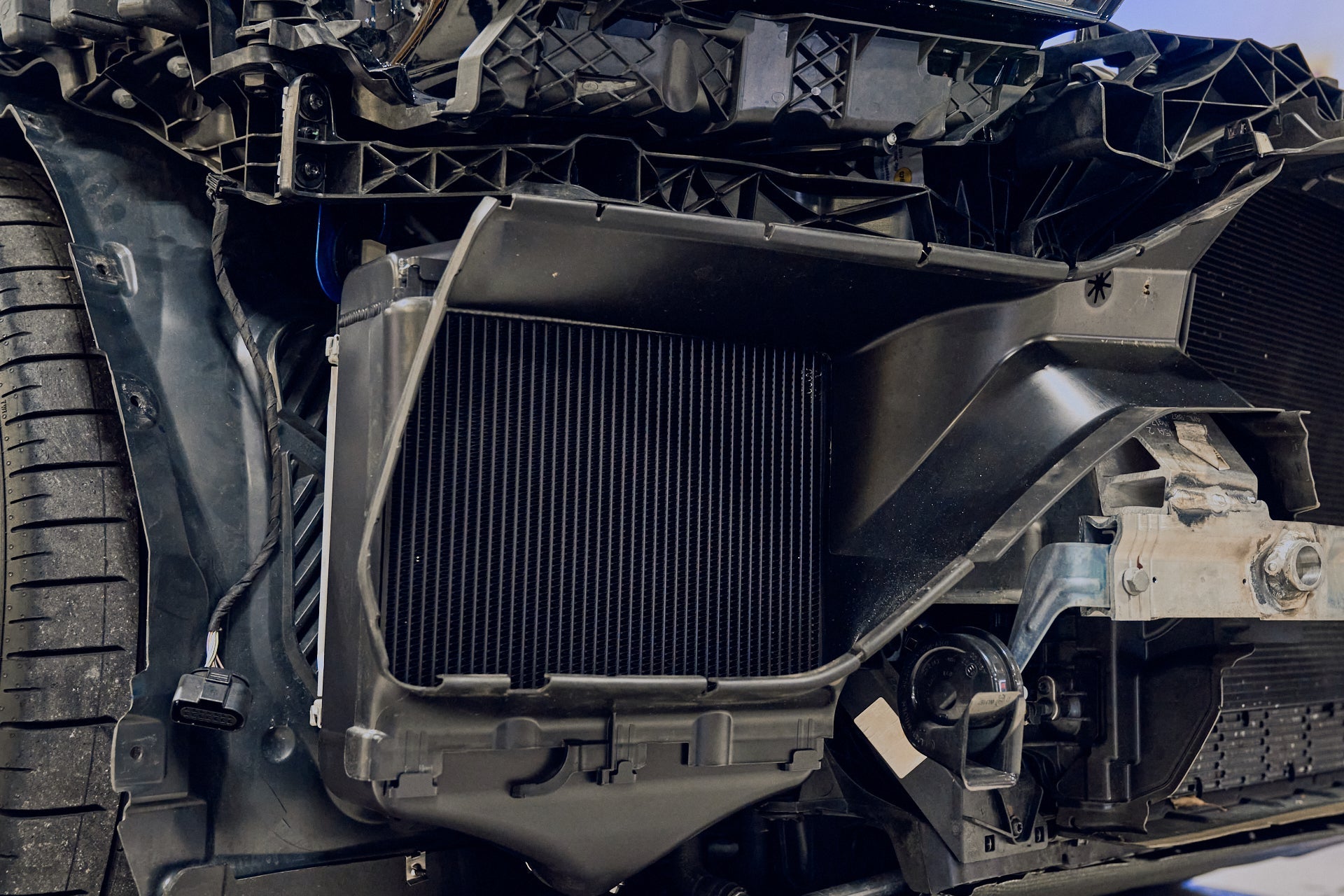

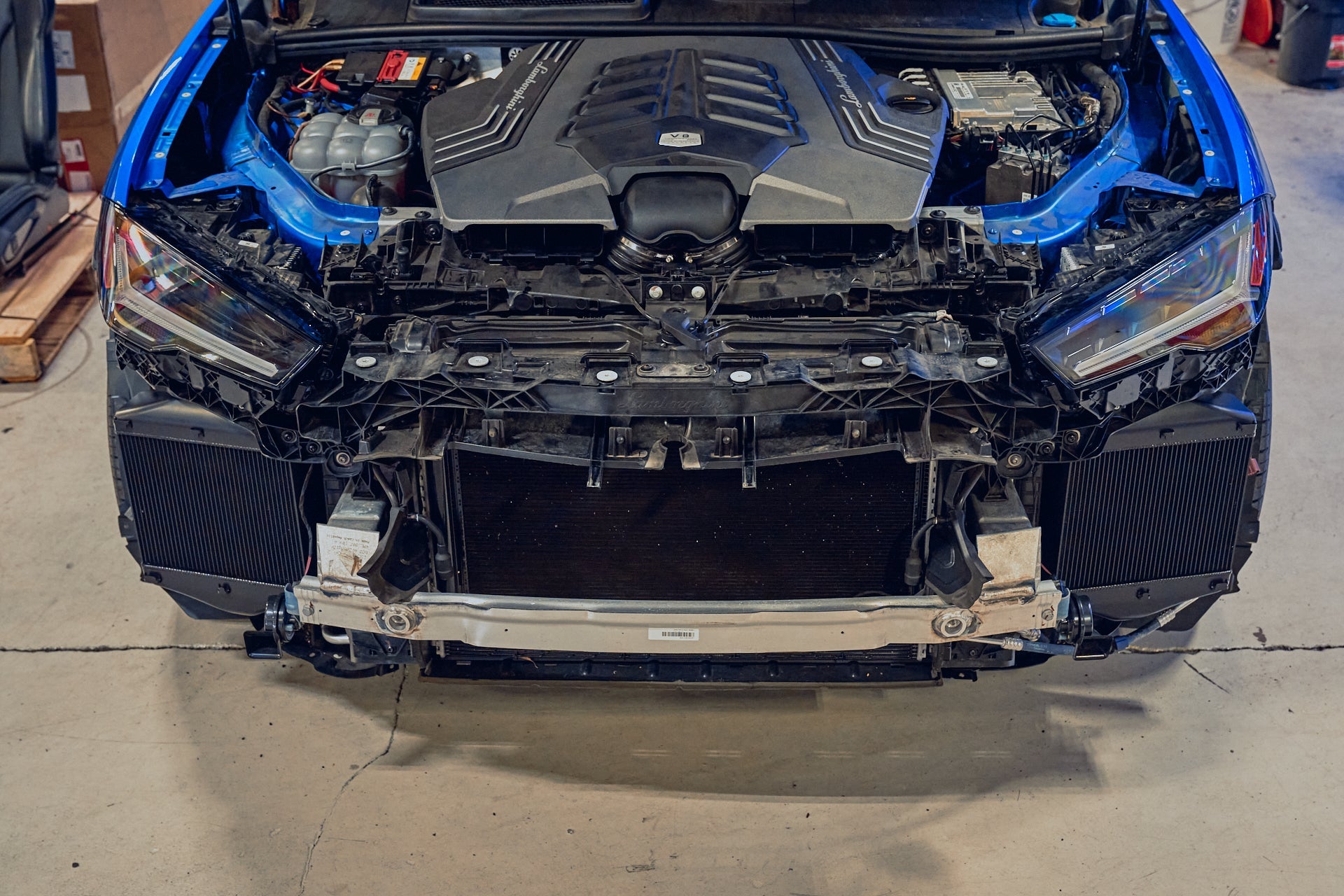

The Urus/RS Q8 Intercoolers have been meticulously designed and engineered to fit exactly like the OEM units they replace. Utilizing all factory mounting points, the installation is straightforward with a "drop-in fit" design. No cutting or modifications are required, and there is no need for aftermarket shrouds or hoses. All mating OEM components can be reused and reinstalled.

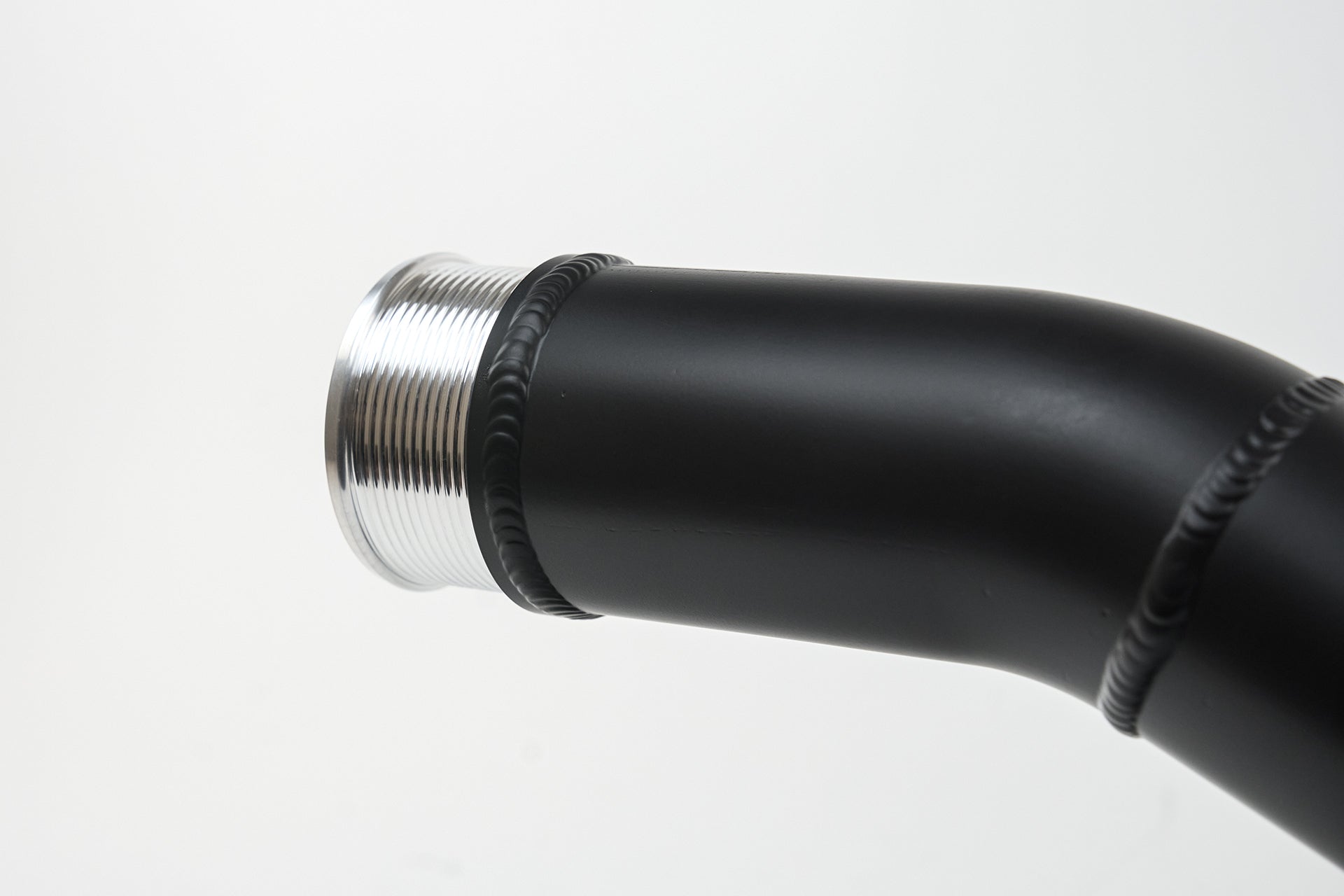

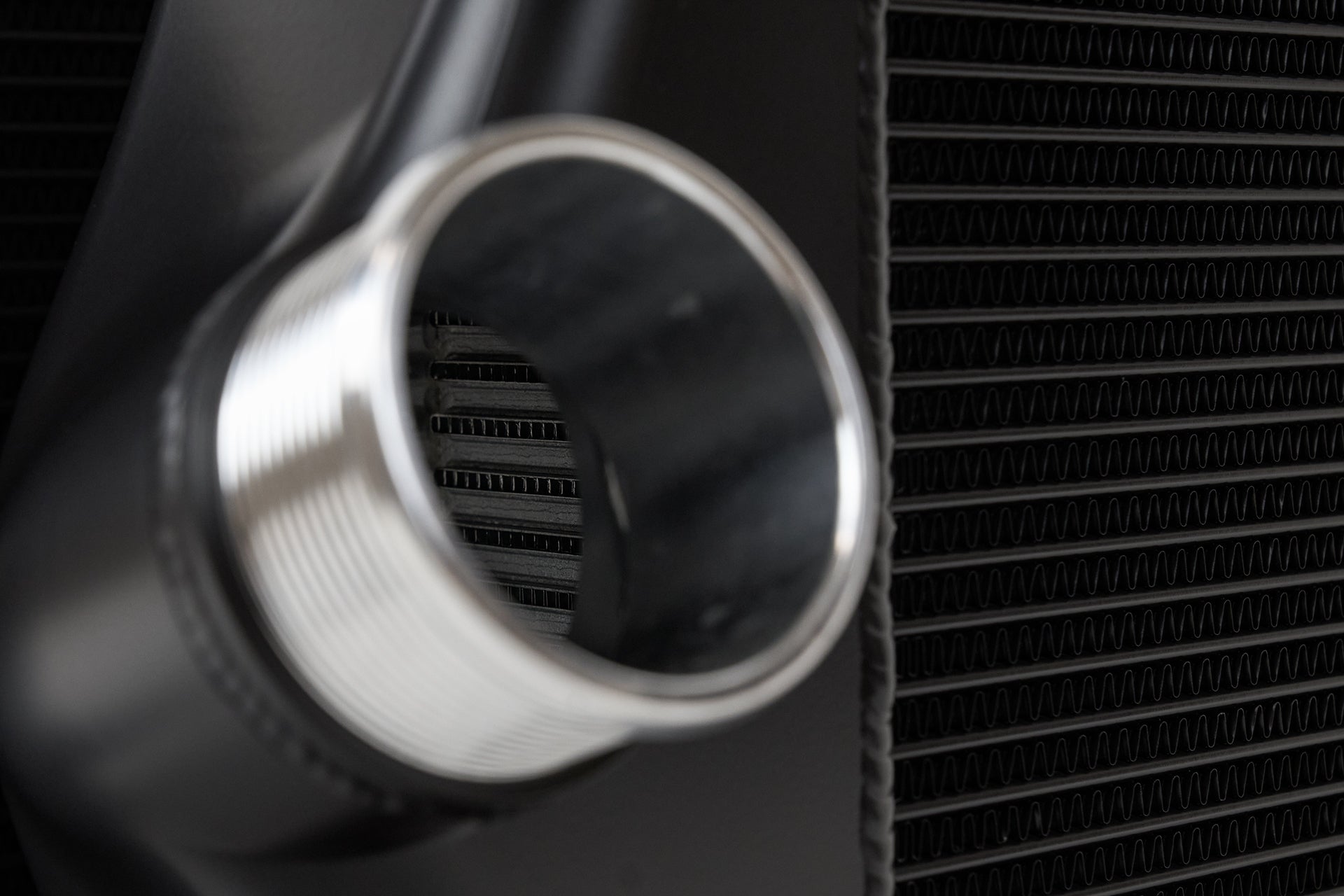

CSF has integrated the charge pipe into the design of the top end tank with an aluminum welded pipe replacing the factory bolt-on plastic part which is sealed with an inner O-Ring. The head technician at Pacific German stated that the OEM O-Rings may be a factory design flaw as they've had to replace them on several stock systems already. This failure causes boost leaks and triggers a check engine light which is quite surprising on such a new vehicle.

The intercooler cores are spec'd out by CSF and custom built by PWR. Featuring two rows of rolled cooling tubes with inner fins, these cores make for the most efficient intercoolers available. Because of this, they are able to eliminate heat soak and lower IATs much more efficiently than traditional Bar & Plate or Tube & Fin designs. This gives us maximum performance for extended periods of time under demanding driving conditions and for vehicles with increased power levels through modifications and tuning.

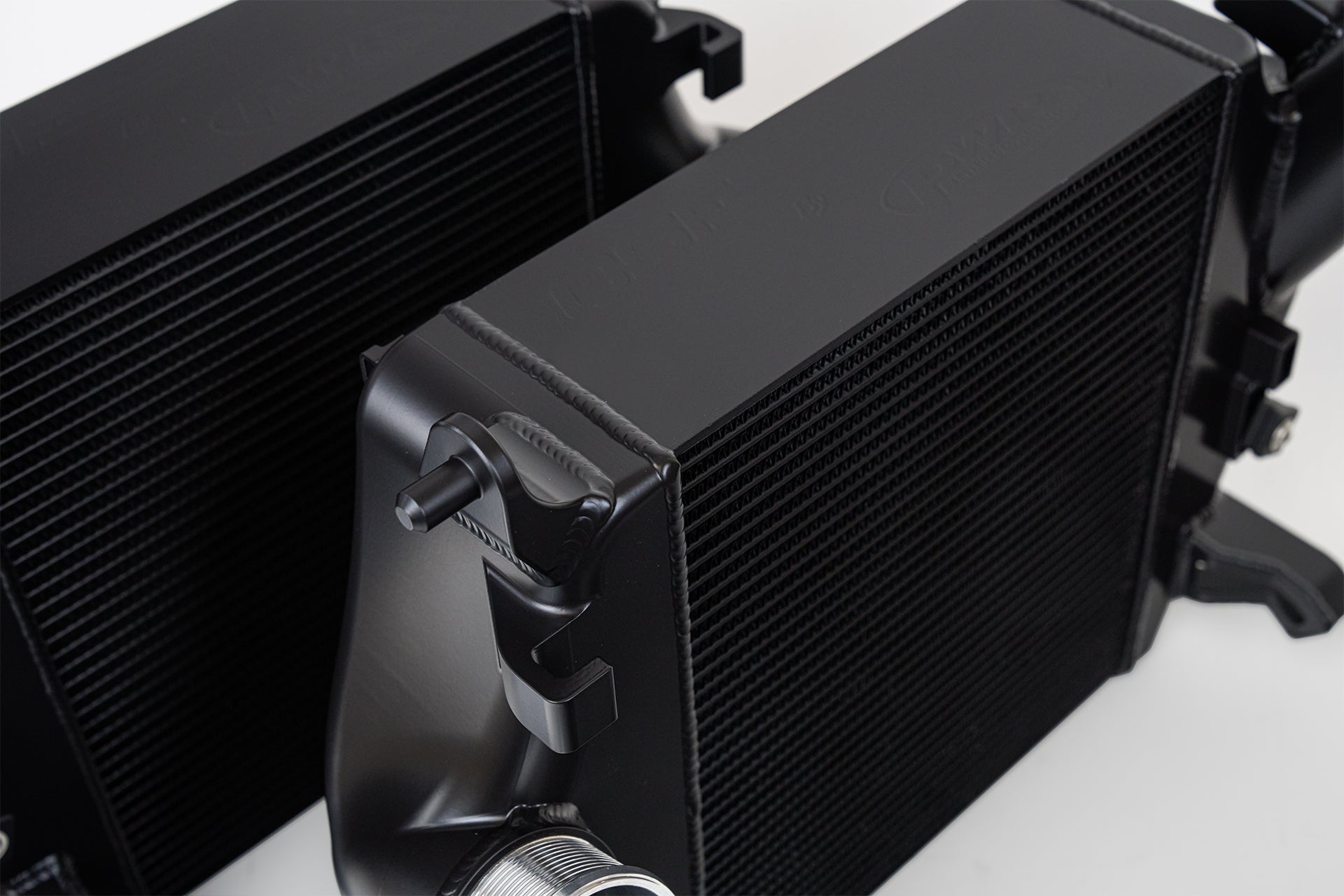

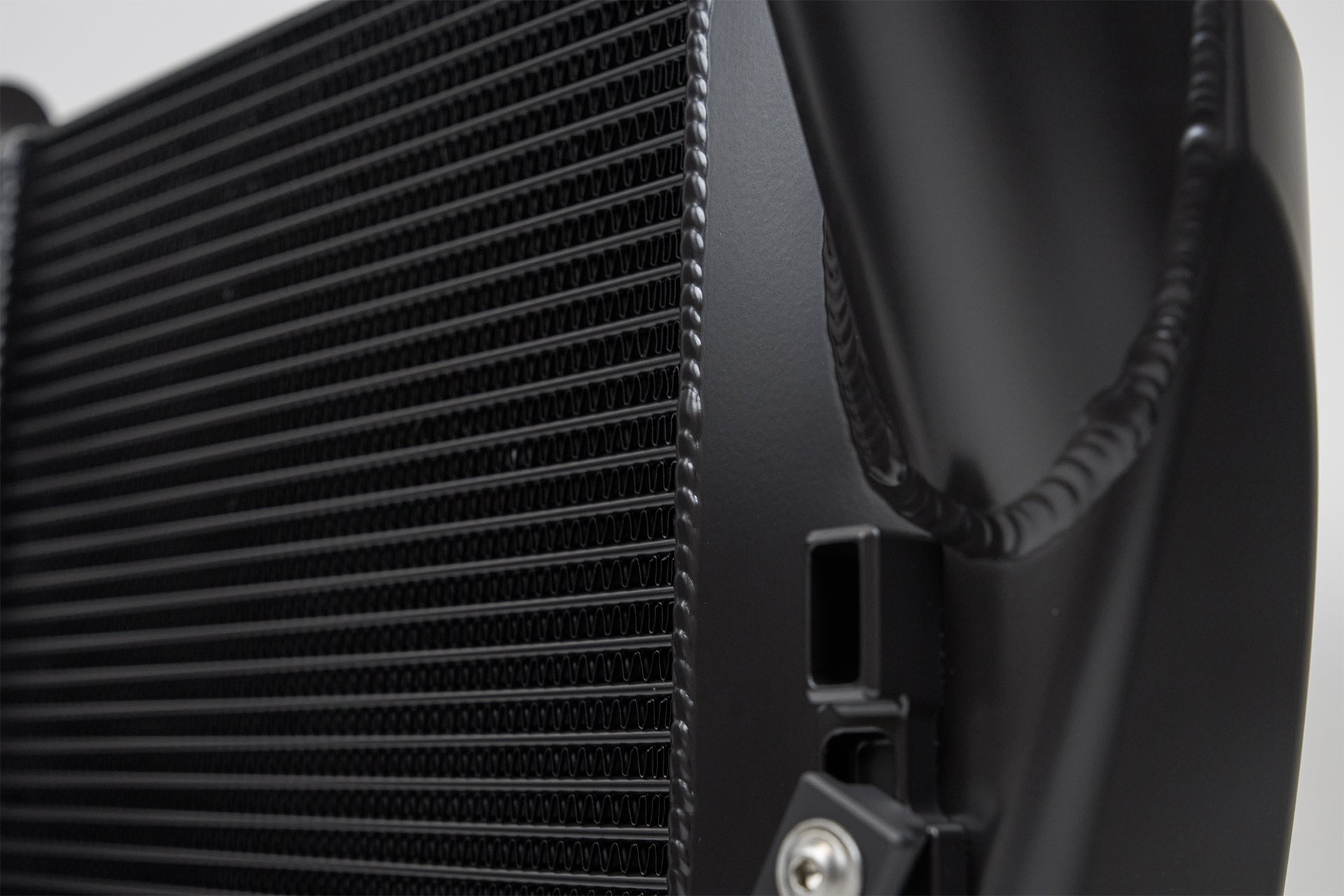

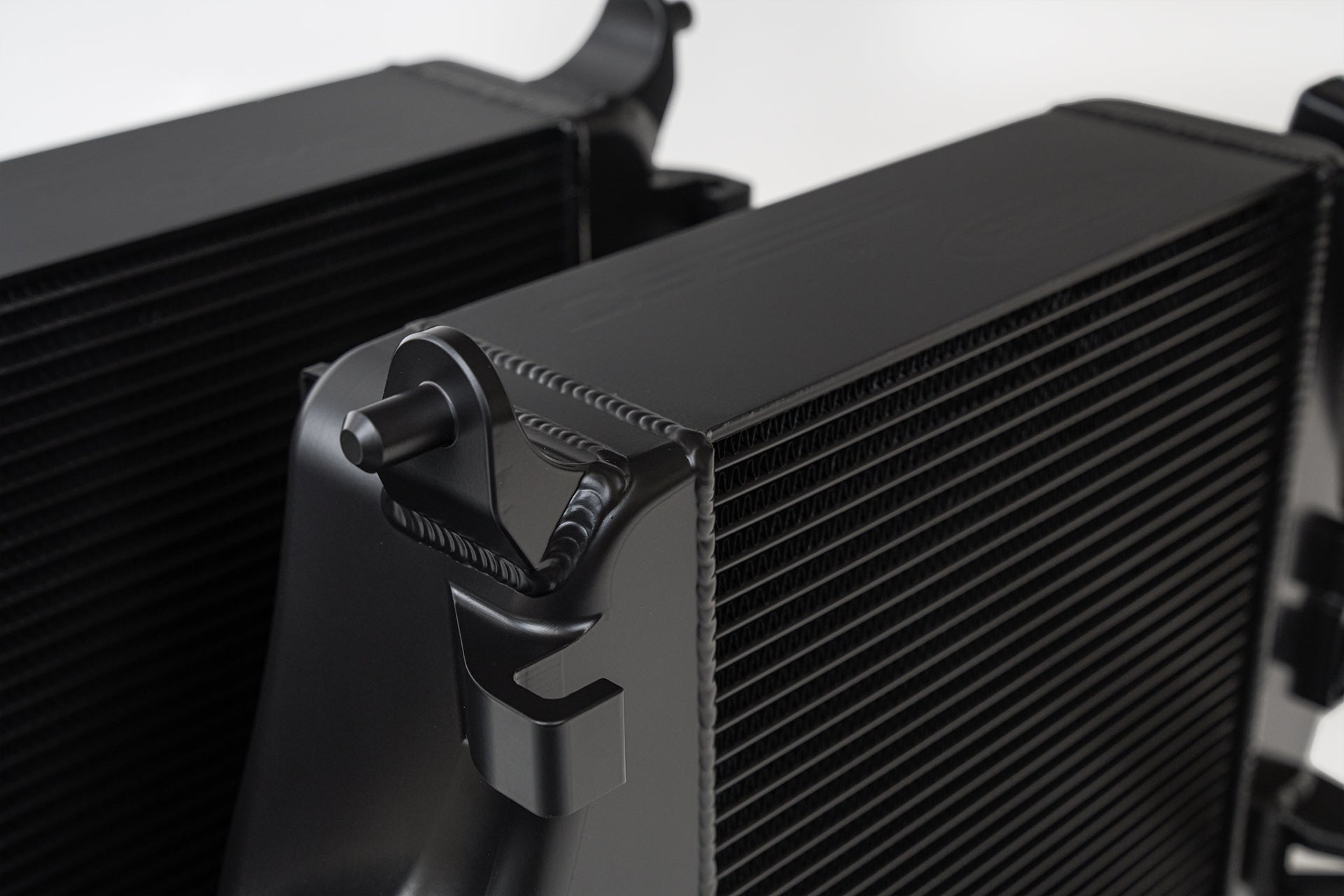

The CSF Intercoolers feature 100% TIG-welded machined billet aluminum end tanks. This feature is not only aesthetically pleasing, but also offers improved longevity and durability. The CNC machined billet end tanks are ready to withstand increased boost pressures from higher performance tunes, as well as upgraded turbochargers.

The CSF #8211R comes in a raw billet aluminum finish. Also available in Thermal Black Heat Dispersion (CSF #8211).

Features

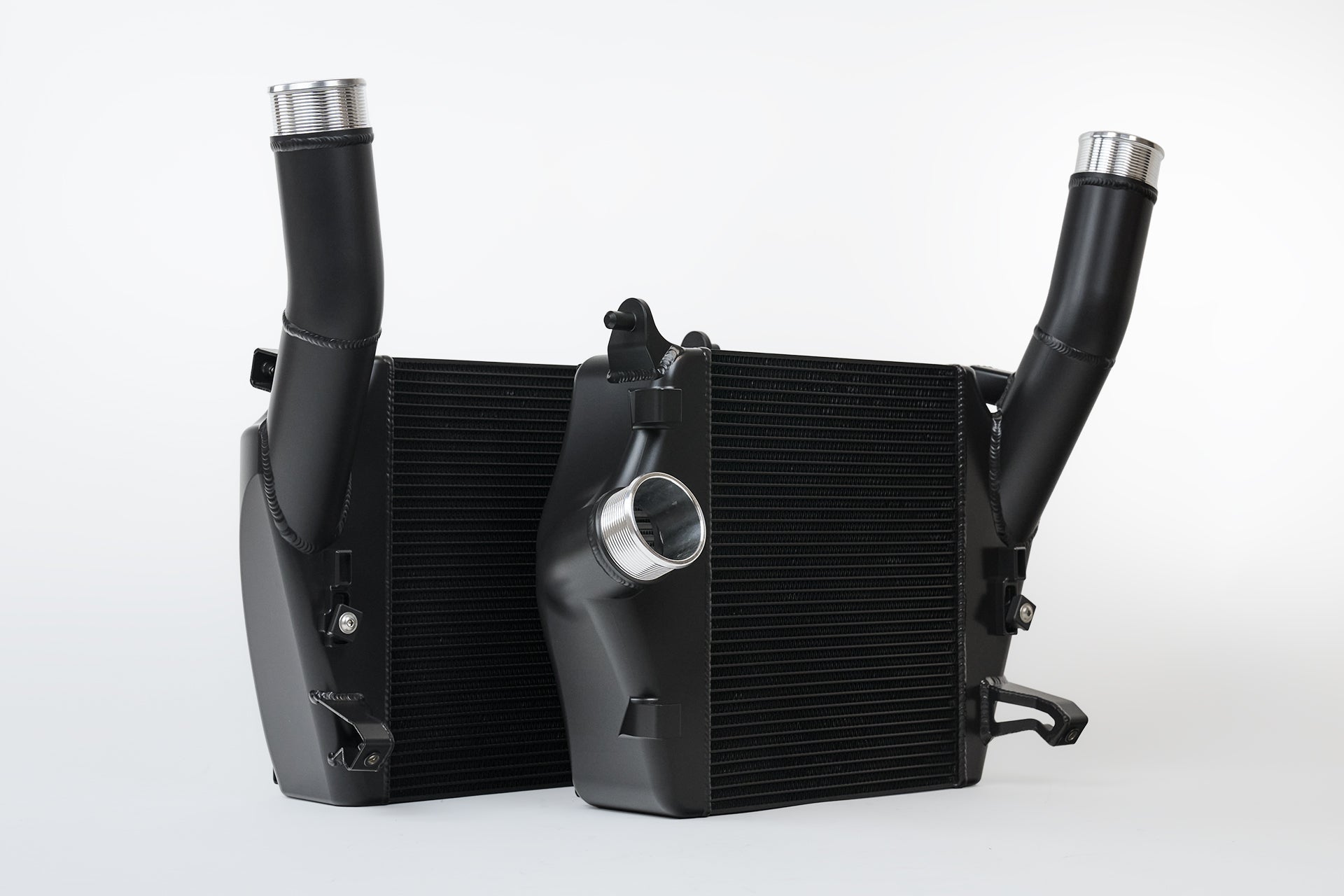

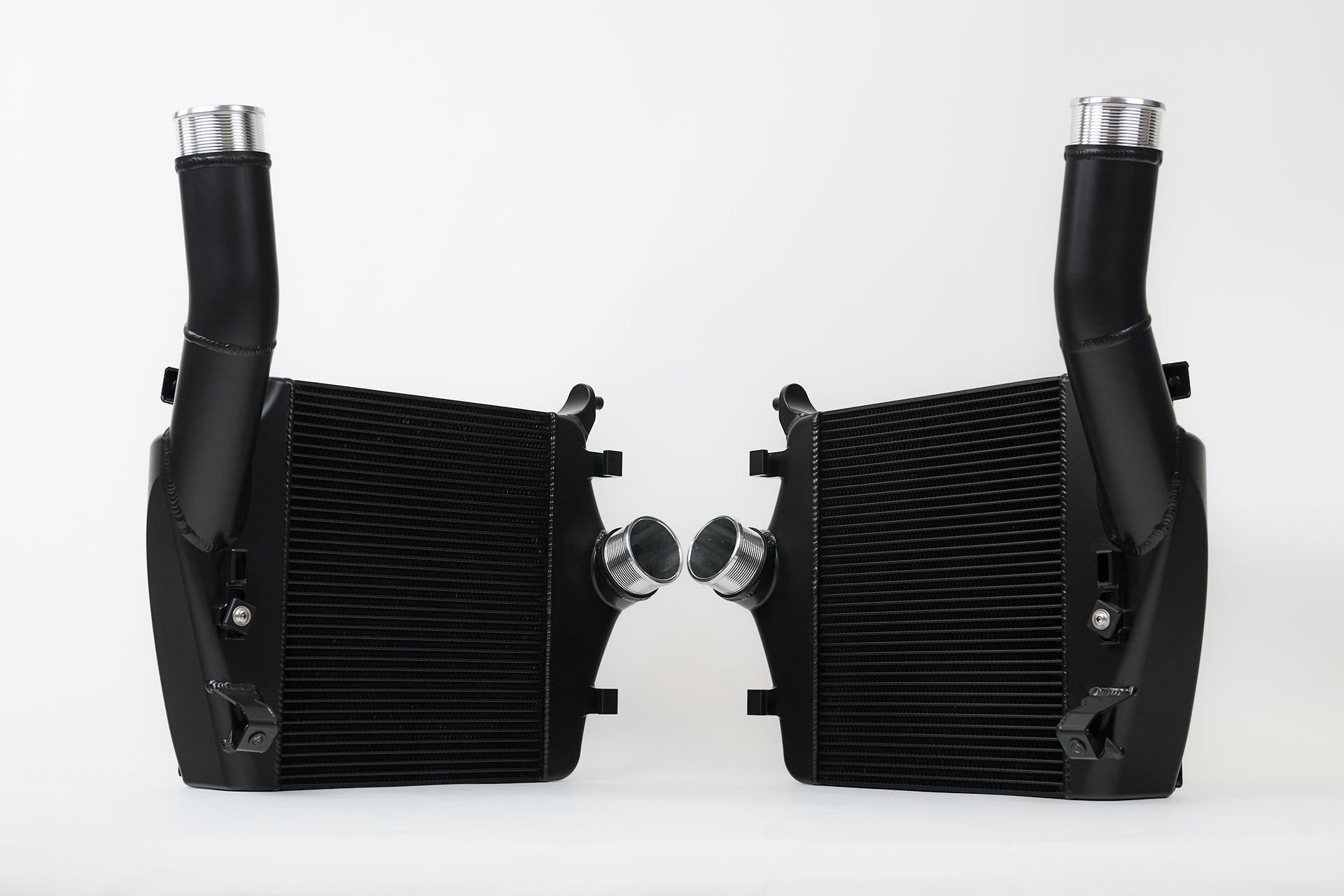

• Sold as a pair (Left & Right Intercoolers)
• Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race Conditions
• Formula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
• CNC Machined Billet End Tanks
• 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
• Made in the USA at PWR North America
• Integrated 1/8th NPT Port with plug on lower outlet tank for Water-Methanol Injection

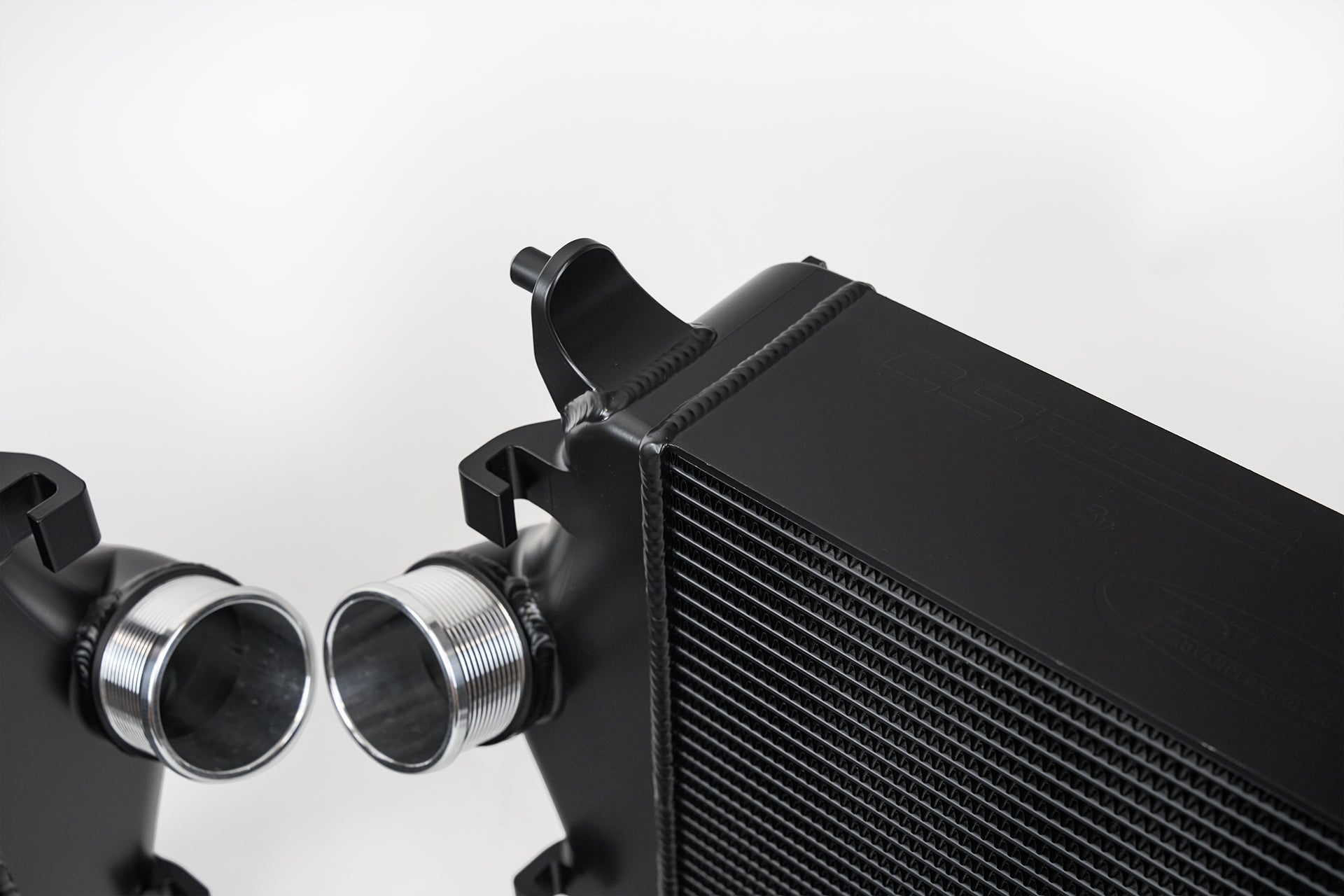

• OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
• Finished in CSF's Thermal Dispersion Ceramic Coating (Available in Raw Finish with no coating - CSF #8211R)
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

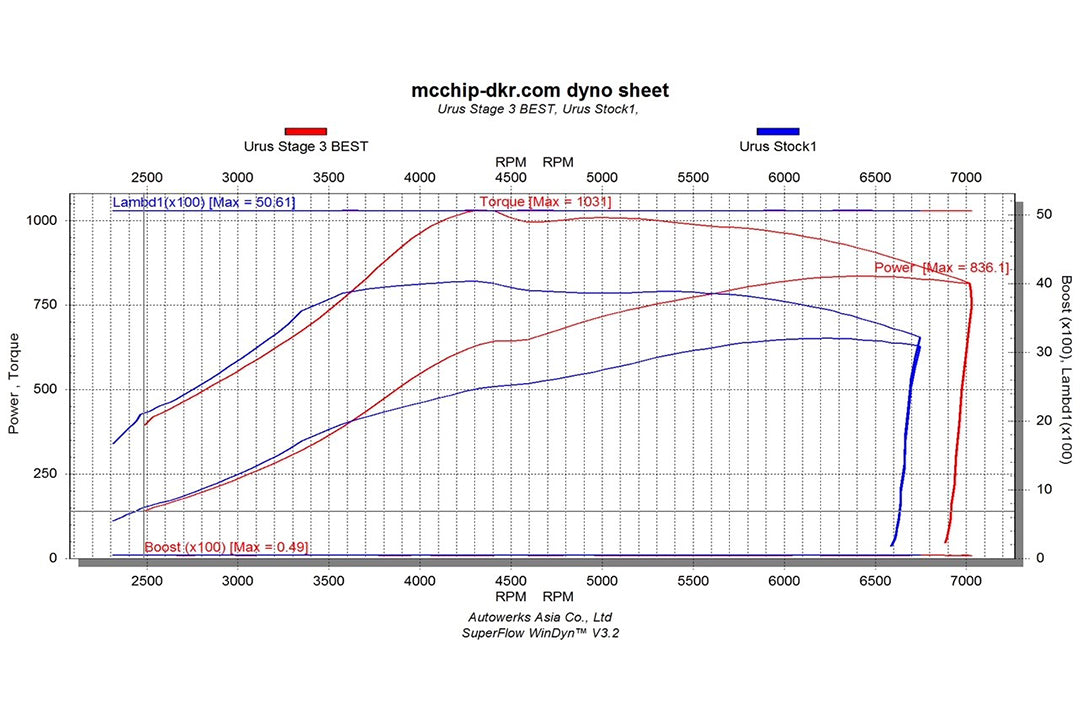

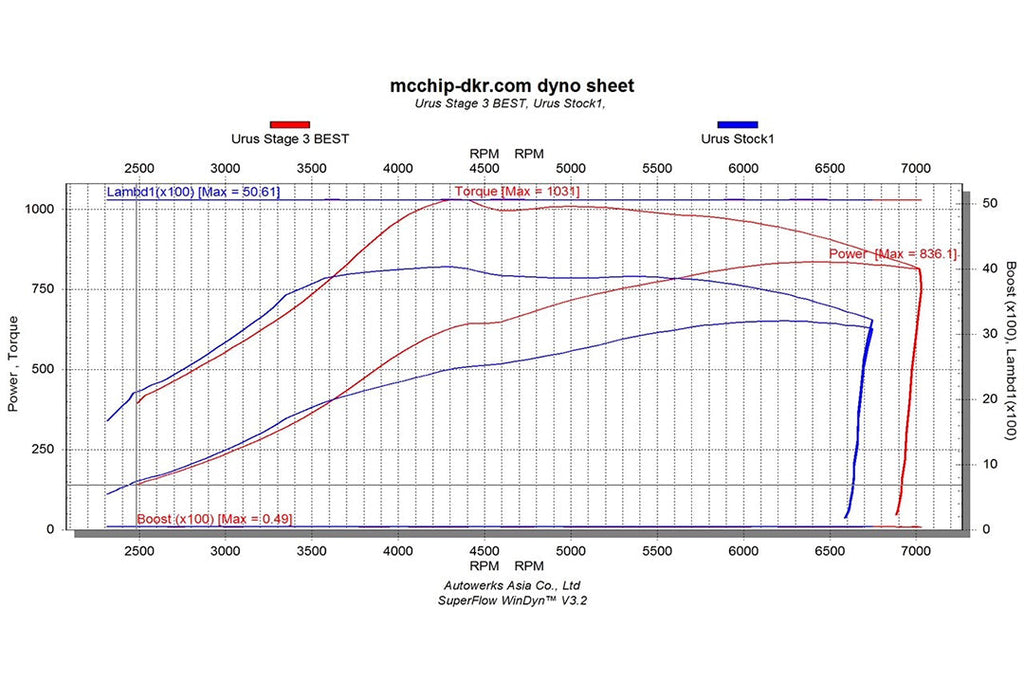

• R&D and Performance Testing by Pacific German & VF Engineering
• 1-Piece Welded Charge Pipe vs OEM Bolt-On Pipe w/ O-Ring (known failure point)

Applications

OEM Part Numbers

• Lamborghini: 4M0 145 804 AK *Right
• Lamborghini: 4M0-145-804-AK *Right
• Lamborghini: 4M0145804AK *Right
• Lamborghini: 4M0 145 803 AK *Left
• Lamborghini: 4M0-145-803-AK *Left
• Lamborghini: 4M0145803AK *Left
• Audi: 4M0 145 804 BT *Right
• Audi: 4M0-145-804-BT *Right
• Audi: 4M0145804BT *Right
• Audi: 4M0 145 803 BT *Left
• Audi: 4M0-145-803-BT *Left
• Audi: 4M0145803BT *Left
• Porsche: PAB 145 804 B *Right
• Porsche: PAB-145-804-B *Right
• Porsche: PAB145804B *Right
• Porsche: PAB 145 803 B *Left
• Porsche: PAB-145-803-B *Left
• Porsche: PAB145803B *Left
• Porsche: PAB 145 804 D *Right
• Porsche: PAB-145-804-D *Right
• Porsche: PAB145804D *Right
• Porsche: PAB 145 803 E *Left
• Porsche: PAB-145-803-E *Left
• Porsche: PAB145803E *Left

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit the CSF Warranty Page

SKU# 8211 Warranty Term: Limited Lifetime Warranty
