Hyundai Veloster N / i30 N (DCT) Stepped-Core Intercooler - Black (Discontinued)

Bisimoto is no stranger to Hyundai tuning - back in 2019, Bisi approached CSF back in need of an upgraded intercooler for his factory-backed Veloster N SEMA project. Pushing the limits of the N platform, Bisi's car featured upgraded turbos and high-performance tuning, resulting in the OEM intercooler showing its weaknesses and inability to shed heat from the turbo system. With technology taken from CSF's #1 selling BMW N54/N55 intercooler, the front face of the intercooler features CSF's exclusive rounded bar/plate design, which aids the air entering the intercooler core by curving around the front bars rather than hitting and scattering on the surface of a traditional flat-bar faced intercooler. CSF's stepped-core design maximizes all of the available frontal area behind the front bumper and underneath the crash bar. The stepped-core protrudes upwards in front of the A.C. Condenser and sits just shy of the crash bar, for both the Veloster N and i30 N. Through prototype testing and data acquisition with Bisimoto, the decision was made to keep the OEM-sized inlet and outlet connections. This resulted in low pressure drop, even considering how much larger the CSF intercooler is - in addition, this feature removes the need to include costly and unnecessary silicone hoses, allowing CSF to offer the N community the best value, entering the market at the most aggressive price point.

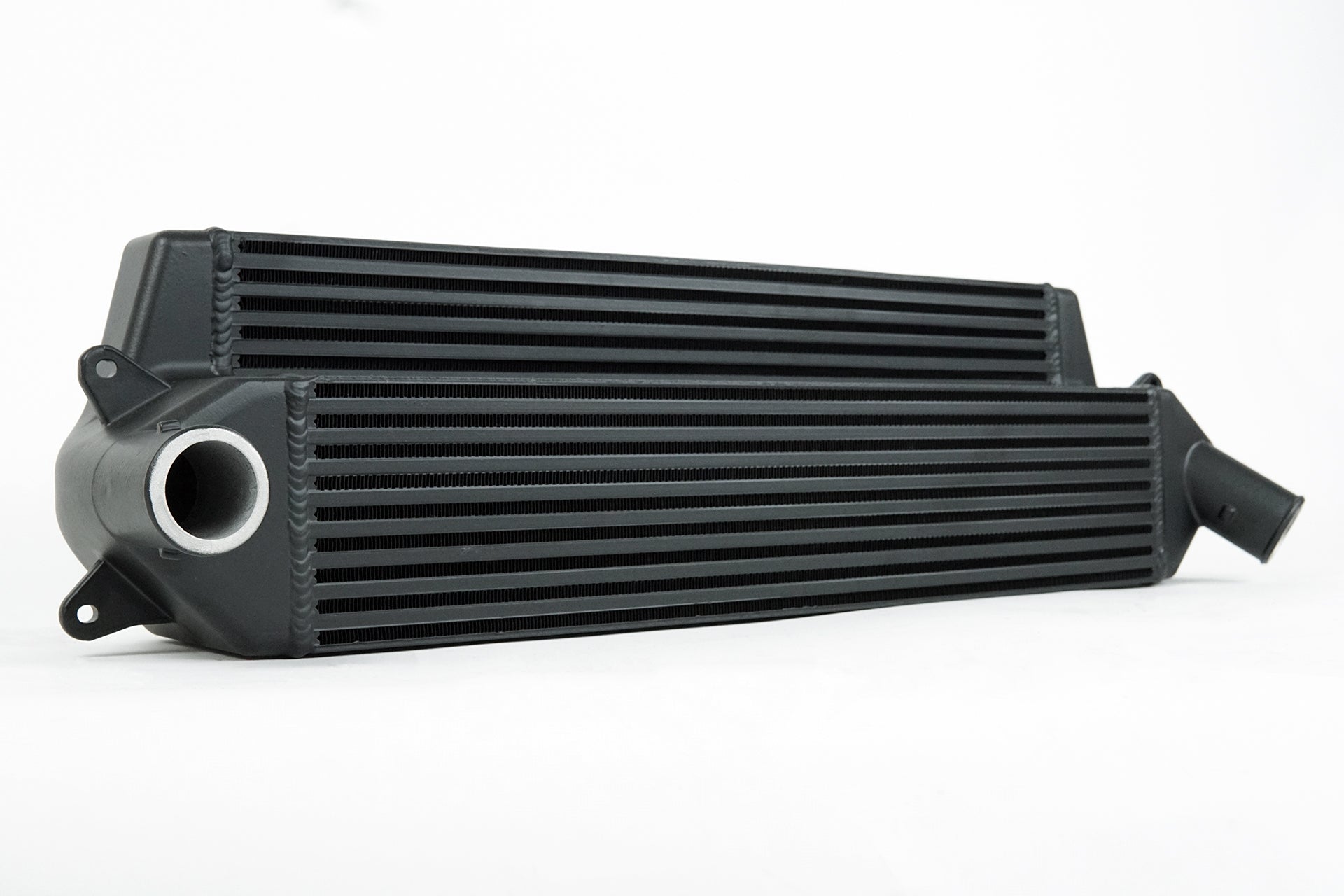

The CSF #8238B comes in a black finish. It is also available in silver (CSF #8238). The CSF #8238/8238B are for DCT only. The CSF #8192/8192B are available for the Manual Transmission equipped Veloster N/i30 N.

Features

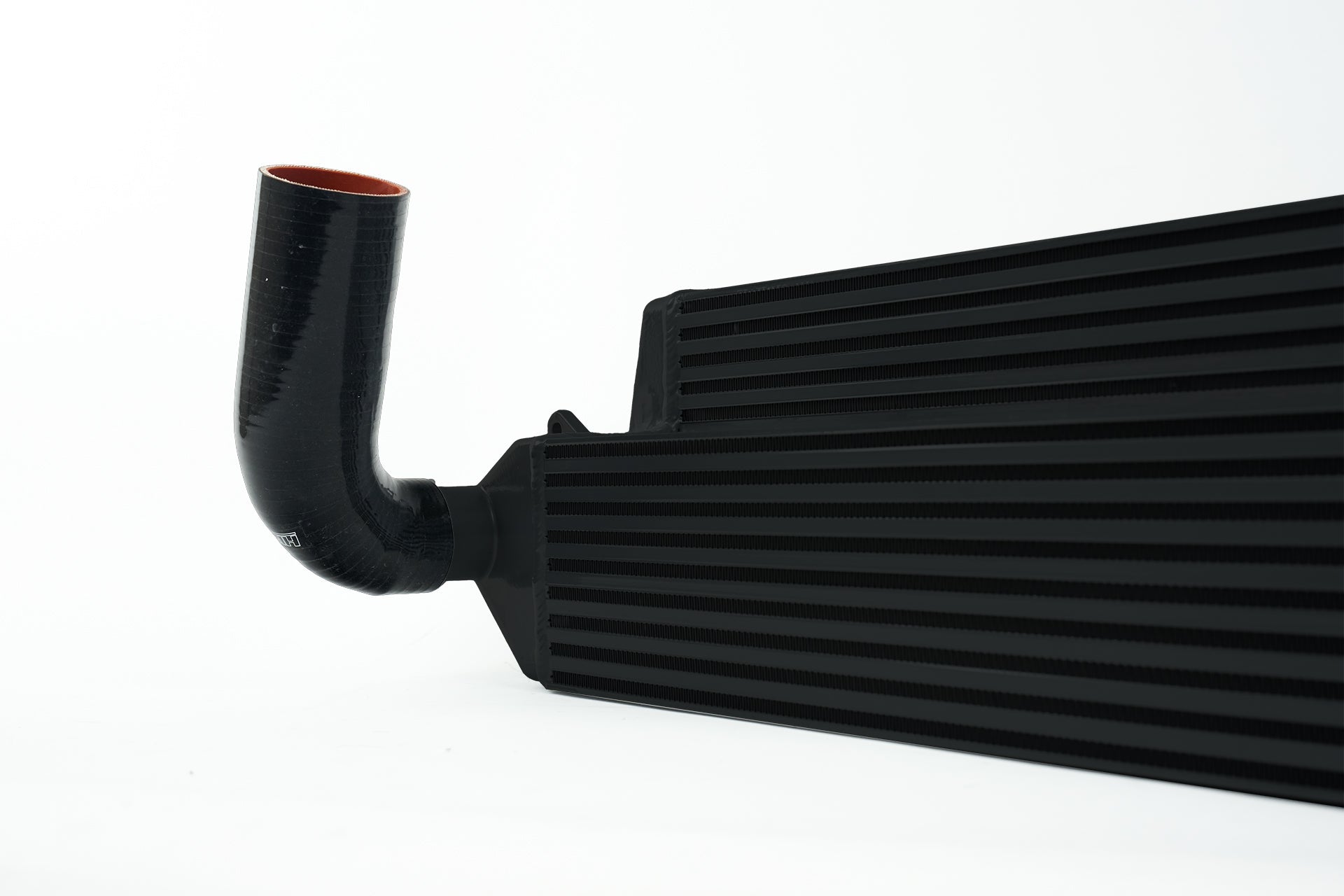

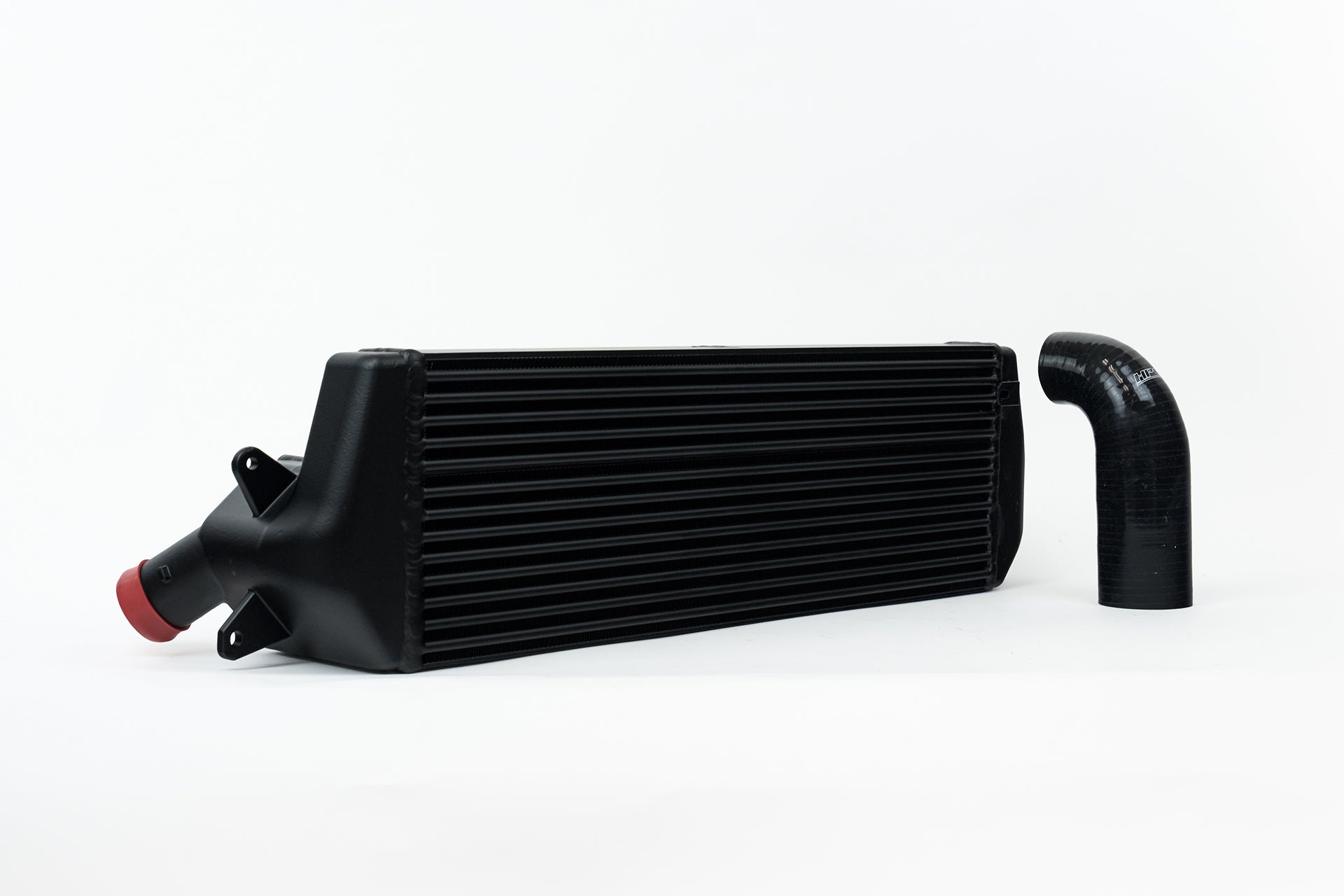

• Includes intercooler to charge pipe hose for the DCT Veloster N & i30N.
• Hose made by HPS for CSF - 90 Degree 21/2" ID High Temp 4-ply reinforced silicone - suitable for factory & high boost applications
• Stepped Core Design for Maximum Surface Area Contact and Internal Intake Air-Flow Volume
• Largest "Drop-in Fit" Intercooler Available in the Industry
• Designed with 3D Scanning/Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization
• Lab Tested in CSF's In-House Wind Tunnel

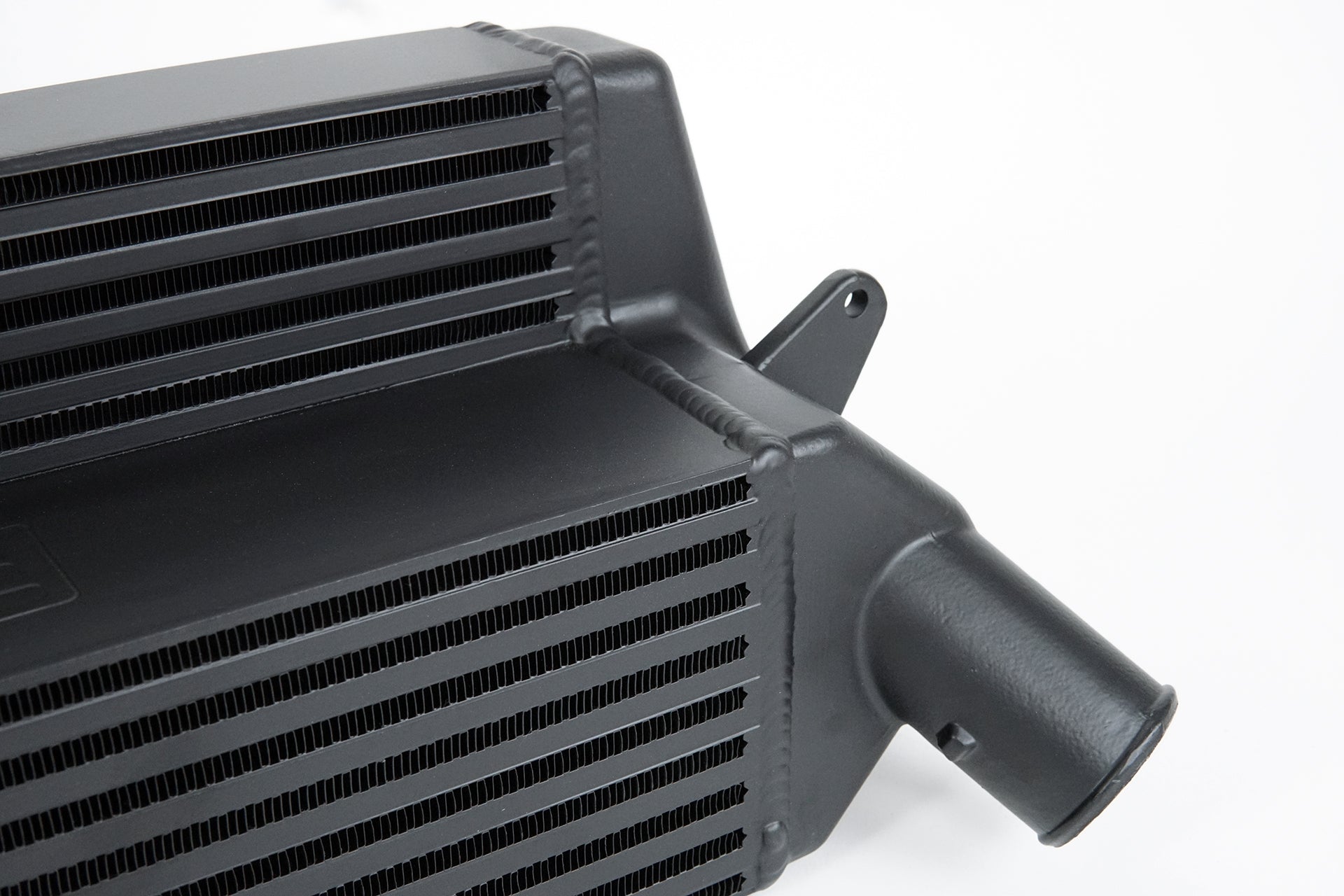

• Rounded Front Face Bar/Plate Design for Optimized Airflow Through the Core
• Integrated Air Temperature Sensor Bracket
• "Drop-in Fit" Design for an Easy & Quick Plug-and-Play Installation
• Fully Reversible Back to OEM Spec with No Modifications Needed
• Available in Both Black (CSF #8238B) and Silver (CSF #8238) Finishes

Applications

OEM Part Numbers

• Hyundai: 28270 2GTF0
• Hyundai: 28270-2GTF0
• Hyundai: 282702GTF0

Warranty

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit the CSF Warranty Page

SKU# 8238B Warranty Term: 2 years
