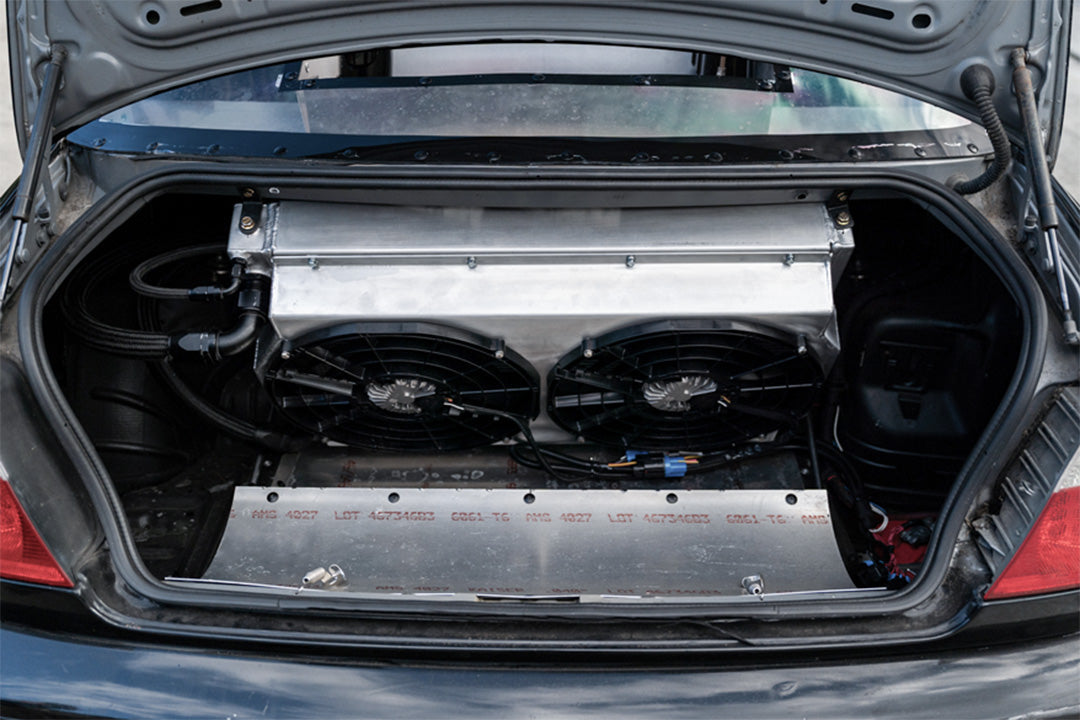

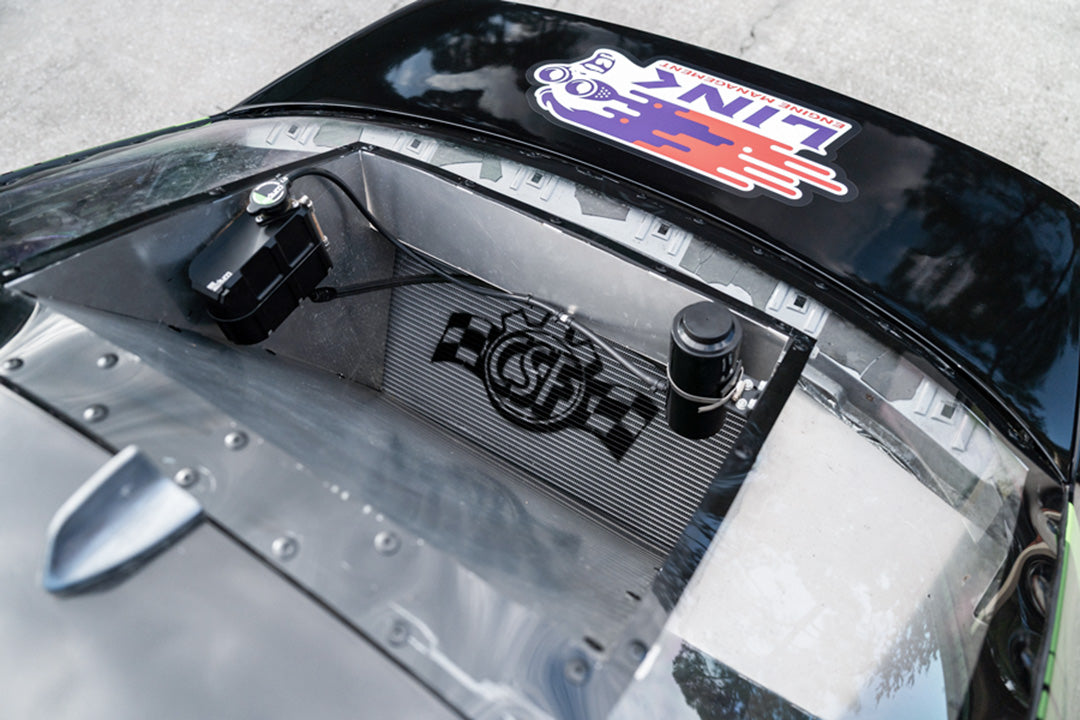

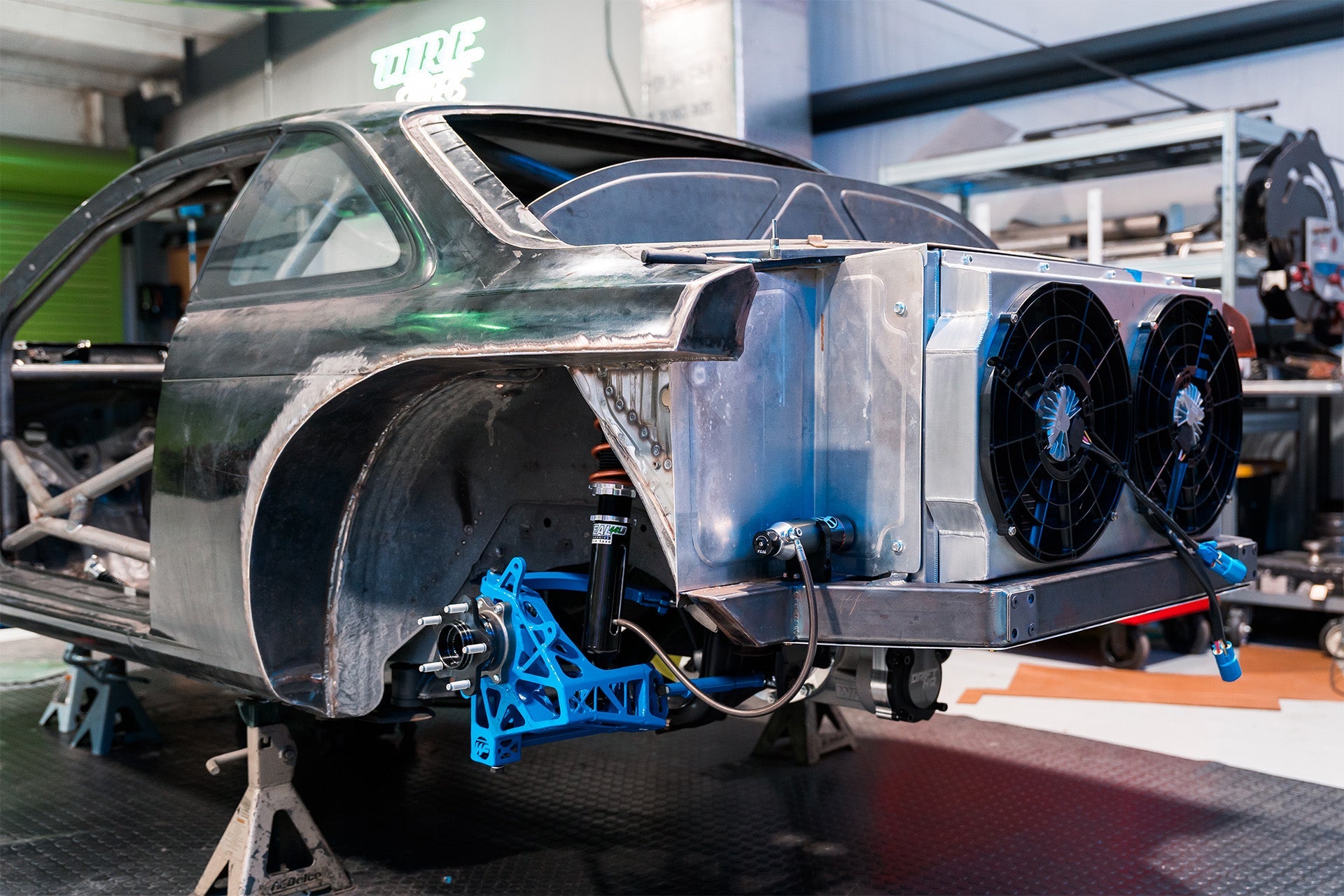

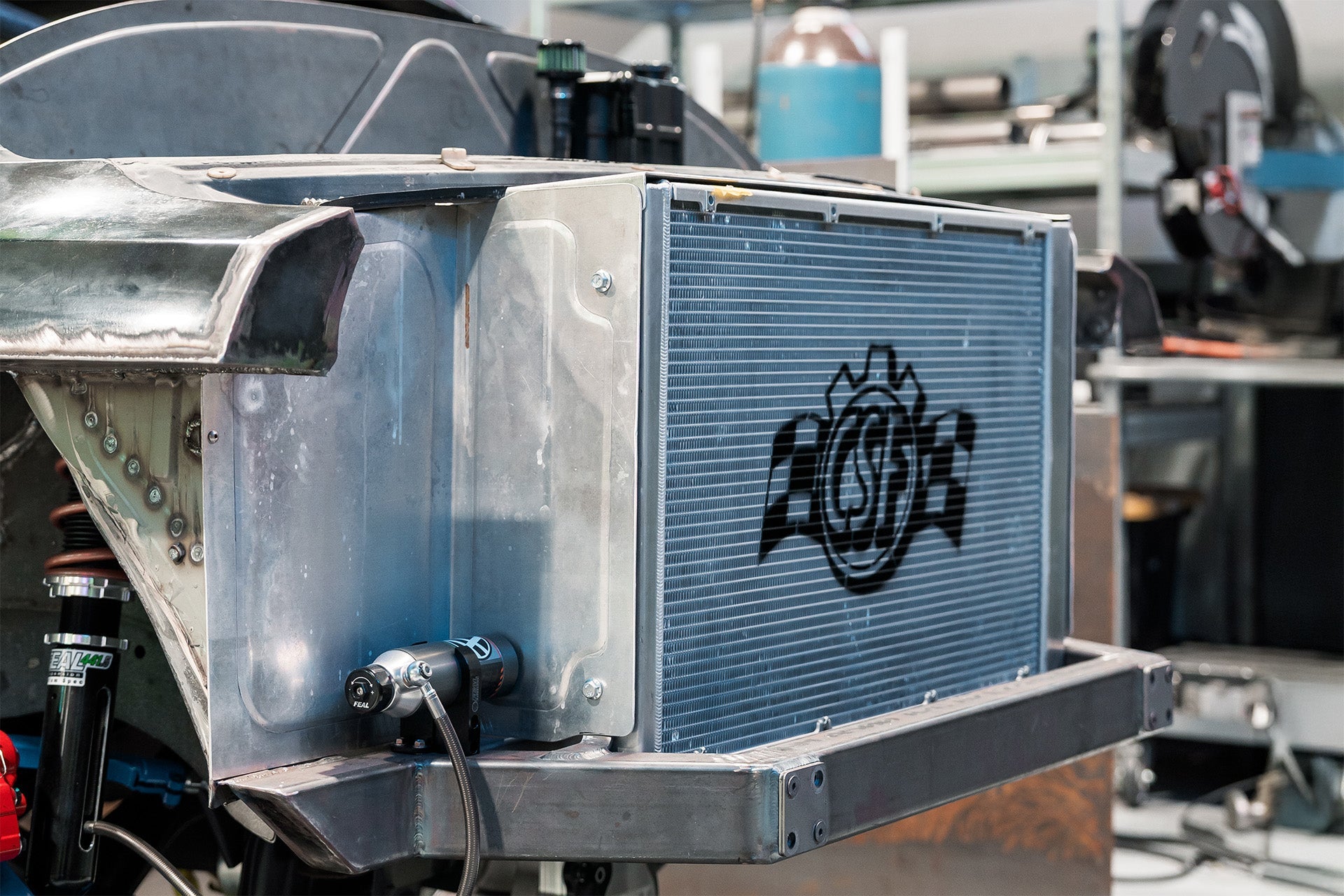

The CSF engineering team has spent over a year working with companies like Drift HQ as well as Pro/Am Drifters to develop and refine the ultimate Drift Radiator. This new Universal Radiator can be used in any racing or motorsport application, but it was purpose built for Drift Vehicles. The size makes it ideal for rear mounted setups and offers an optional shroud with fans capable of keeping the hottest cars cool when sideways. This is the largest Drift Radiator Module on the market and delivers the cooling performance you need to compete.
CSF has been heavily involved in motorsports for years supporting teams and enthusiasts in Time Attack, GTC, SRO, Drifting, along with Drag and Roll Racing. Many of CSF's "Drop-In" fit cooling systems are used in competition in addition to the Universal Systems. One thing that has been missing from the CSF catalog though was a large motorsport radiator; until now.

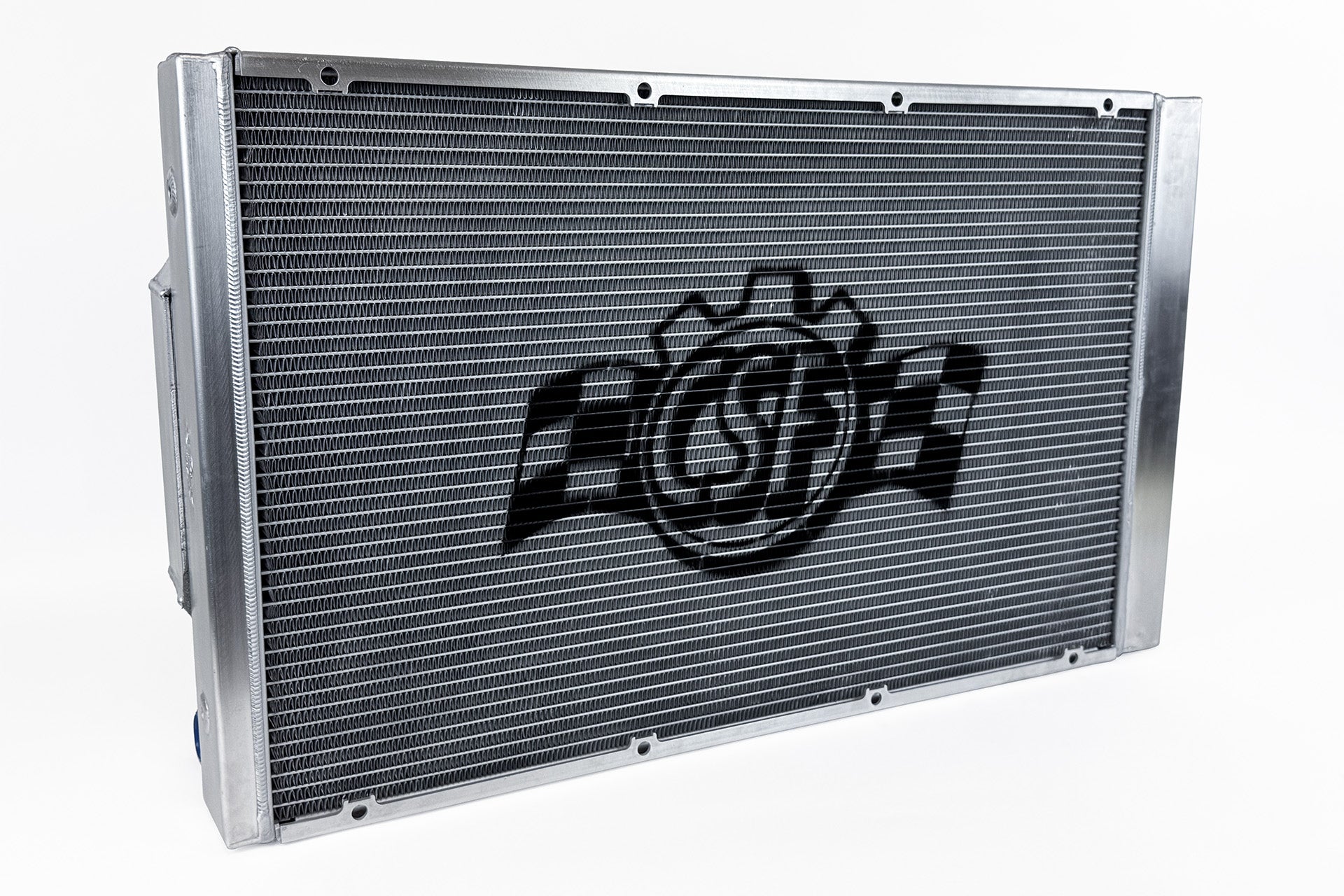

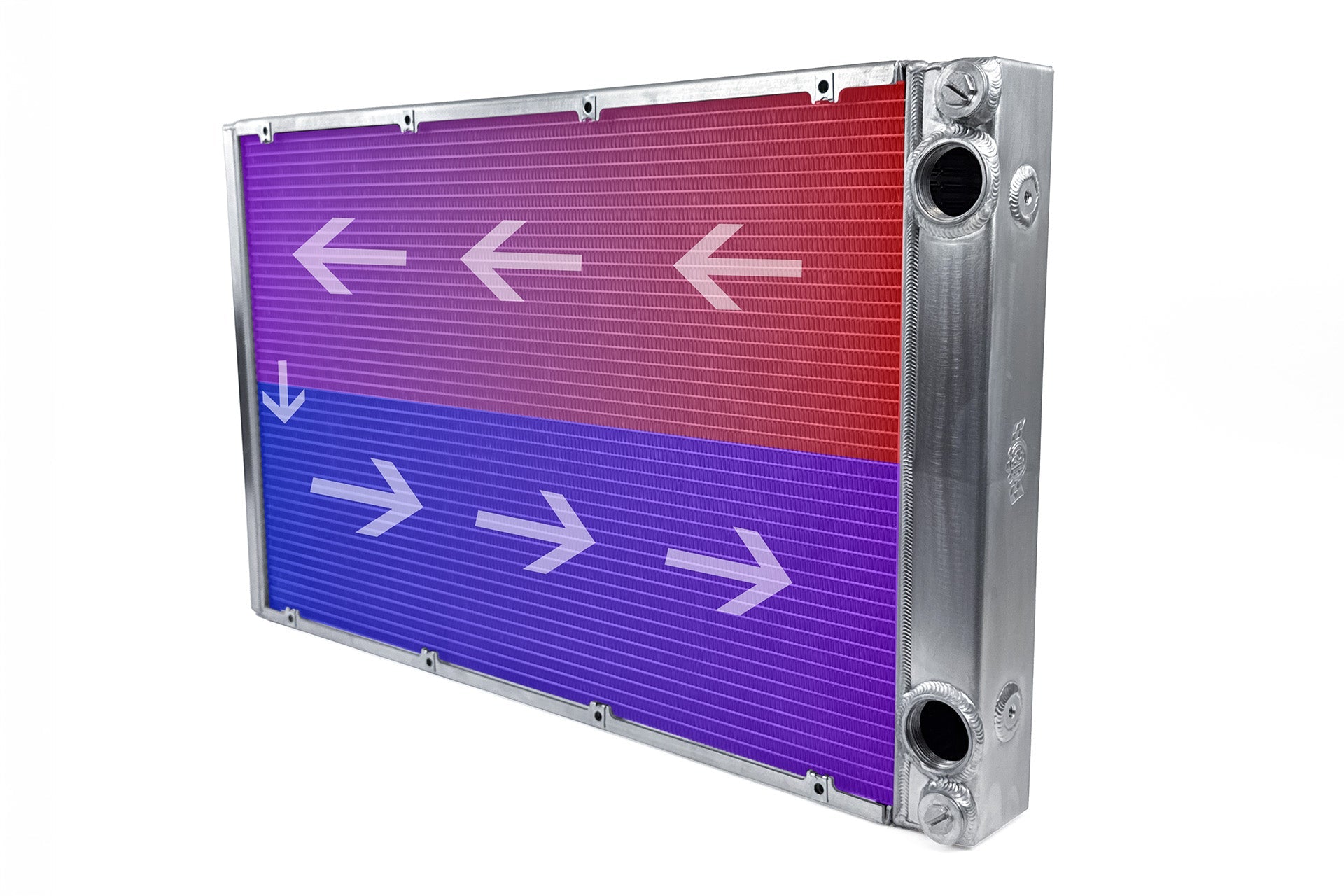

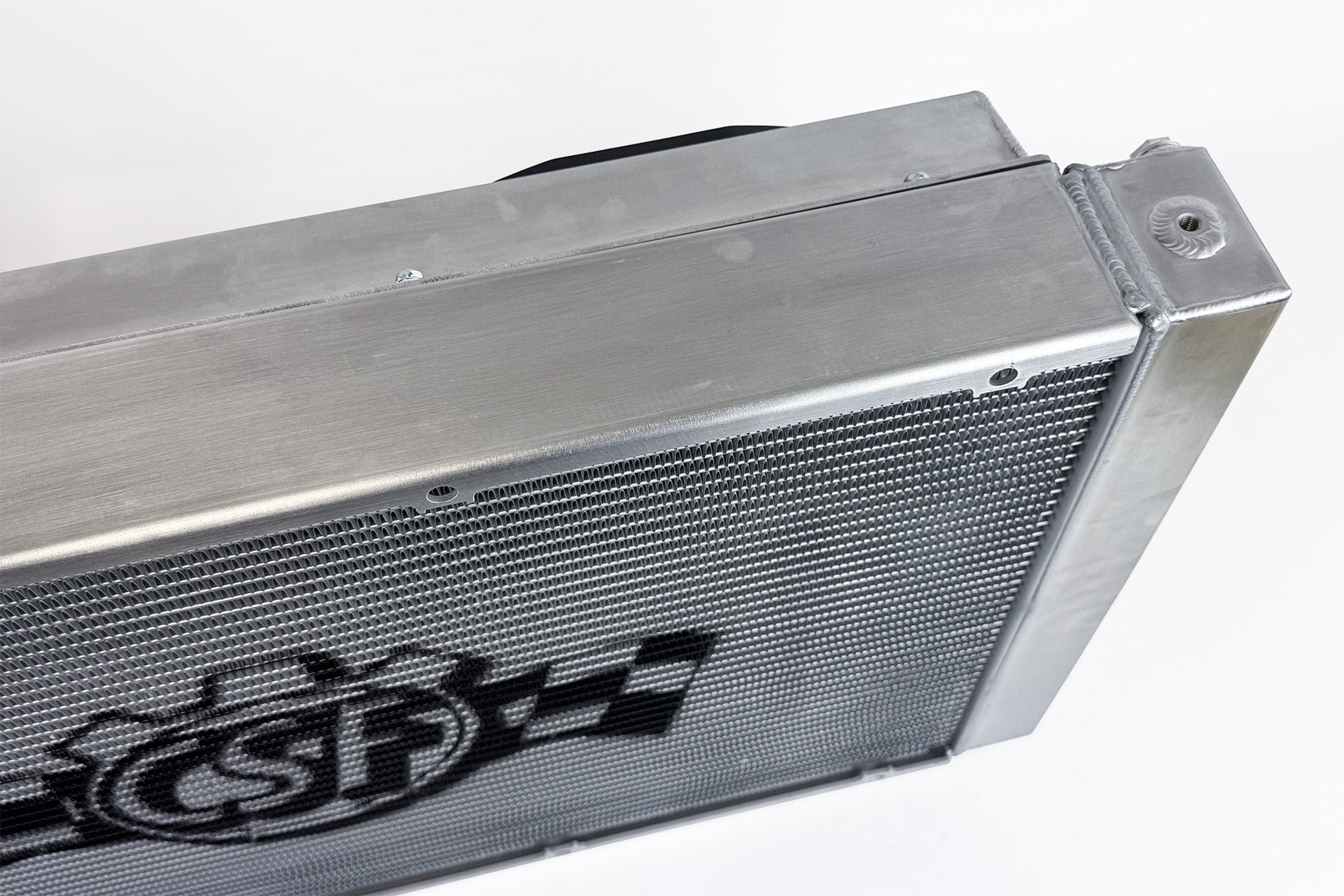

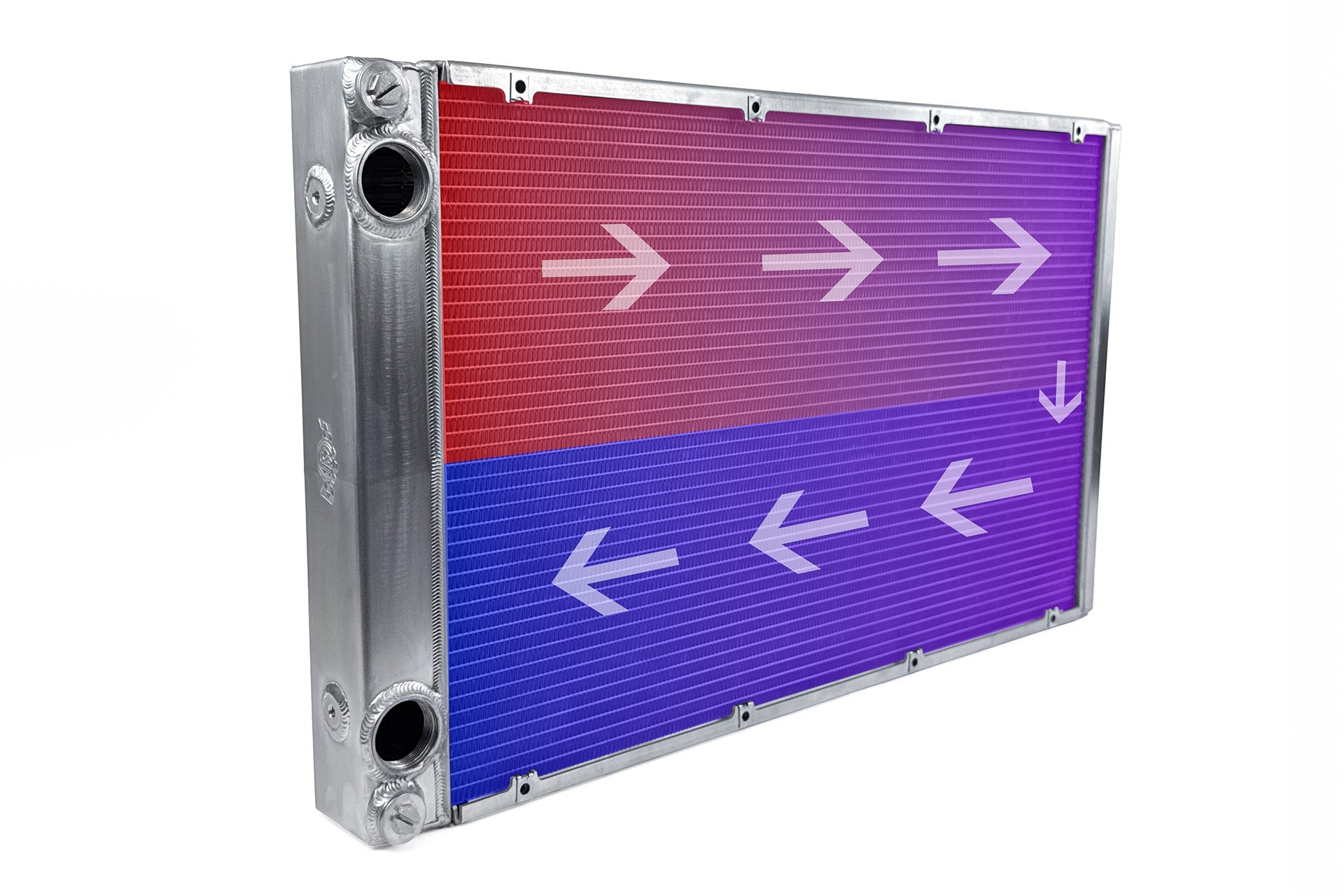

The new Motorsport Dual-Pass Radiator is the largest and most efficient cooler CSF manufactures. It features a mammoth 705mm x 448mm (27x75" x 17.5") core that is 68mm thick. The 68mm core is 24% thicker than the nearest competitor which uses a 55mm core. It offers more heat transfer and thermal capacity than any other radiator on the market.
CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. The 44 rows of 8mm super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

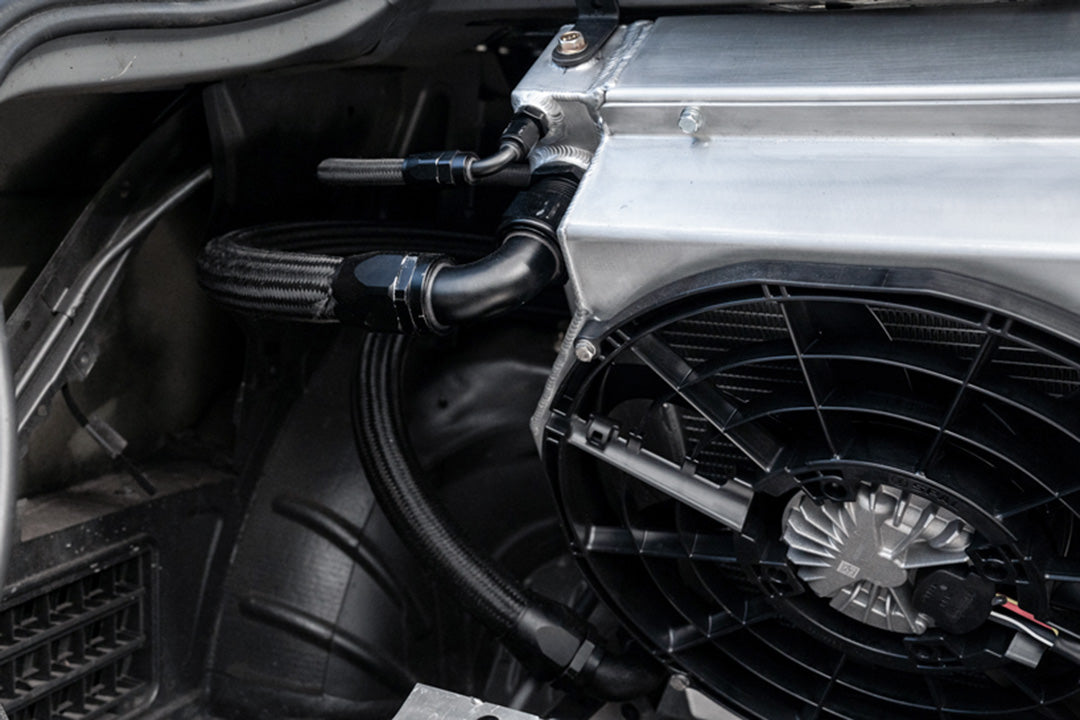

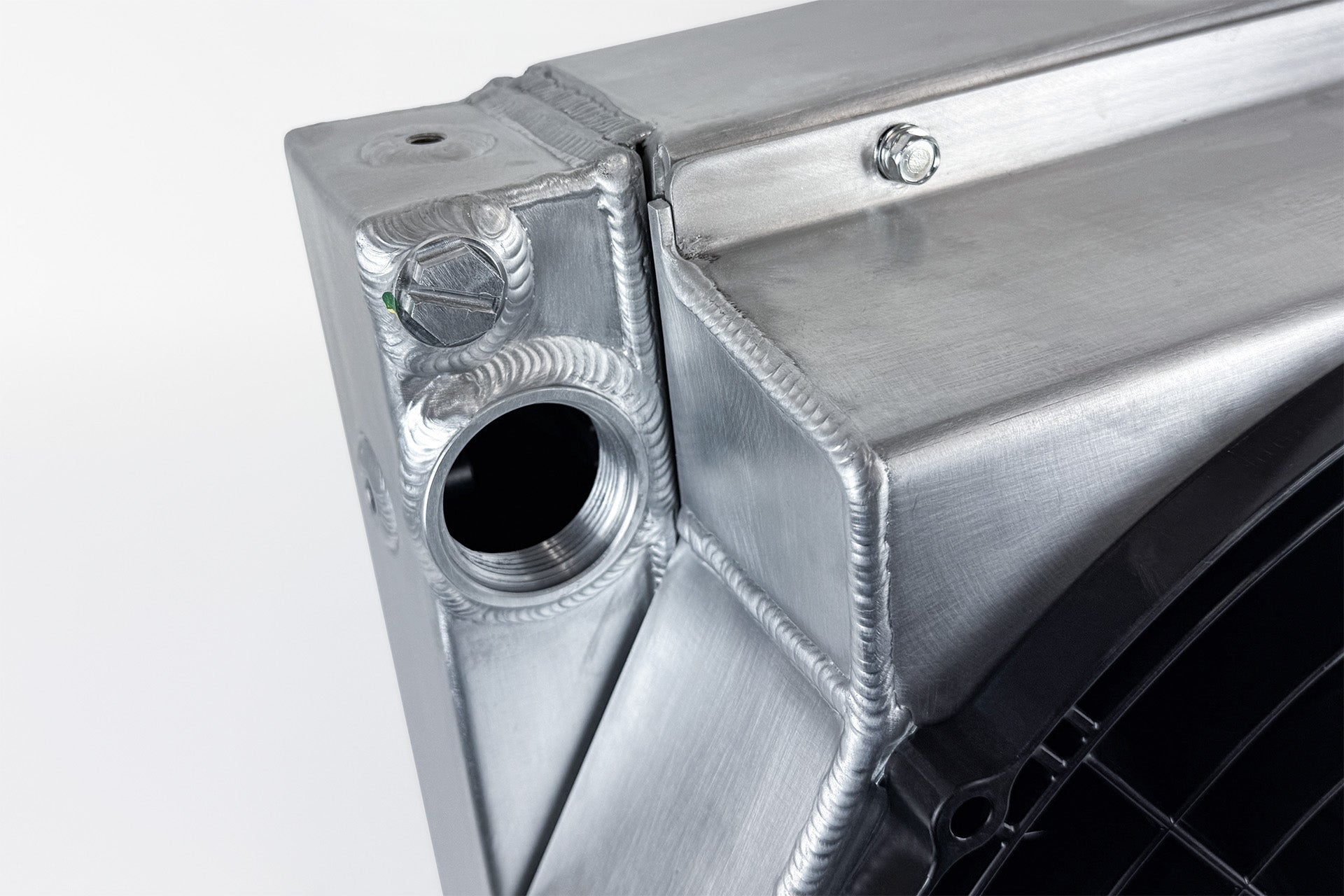

The radiator features threaded -20AN ORB ports for the main coolant inlet and outlet for maximum flow capabilities. One piece of feedback CSF has gotten over the years with the R-1 Triple-Pass "Ultimate Motorsports" Competition Radiator (CSF #8023) has been wanting something with -20AN capabilities instead of only -16AN.

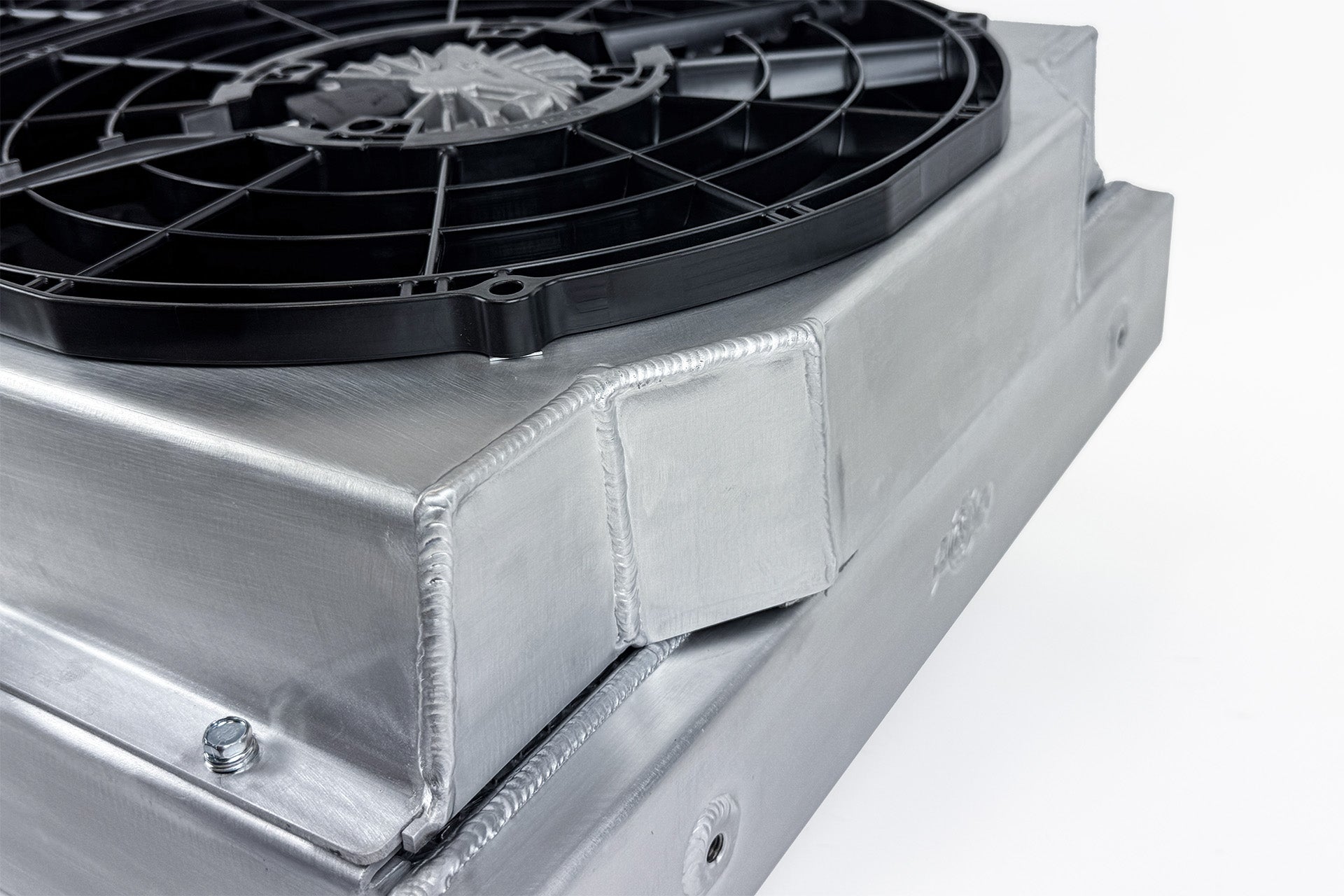

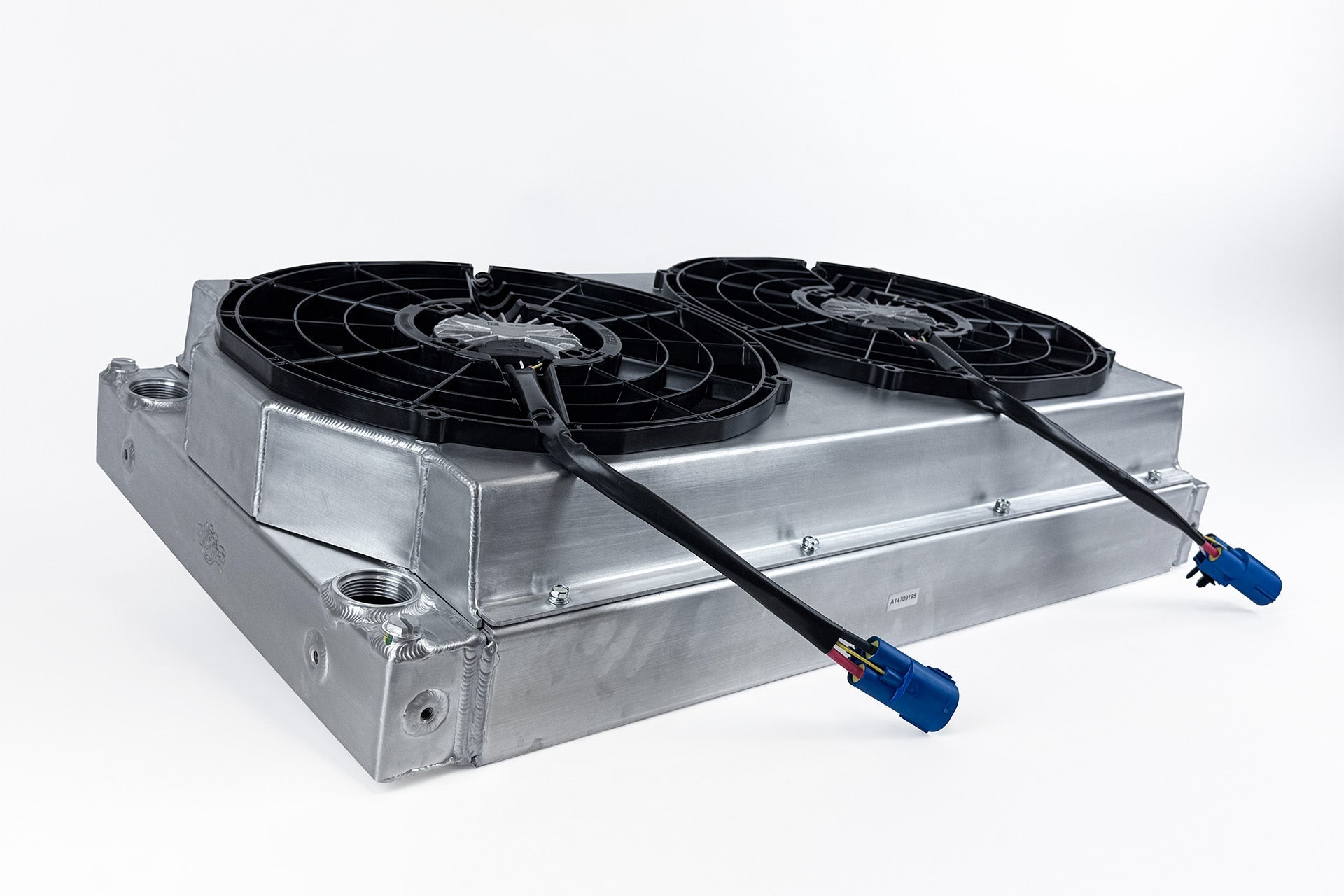

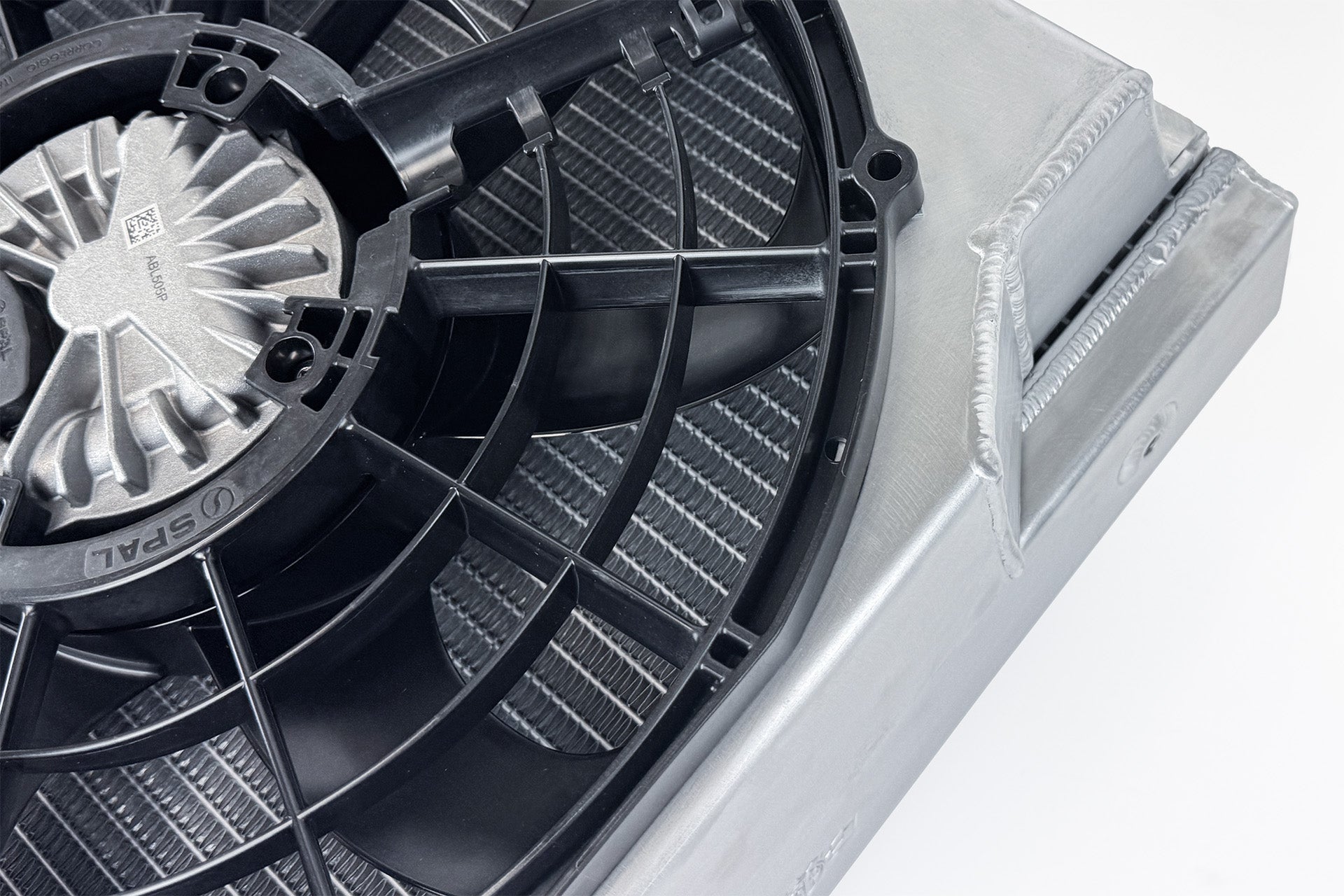

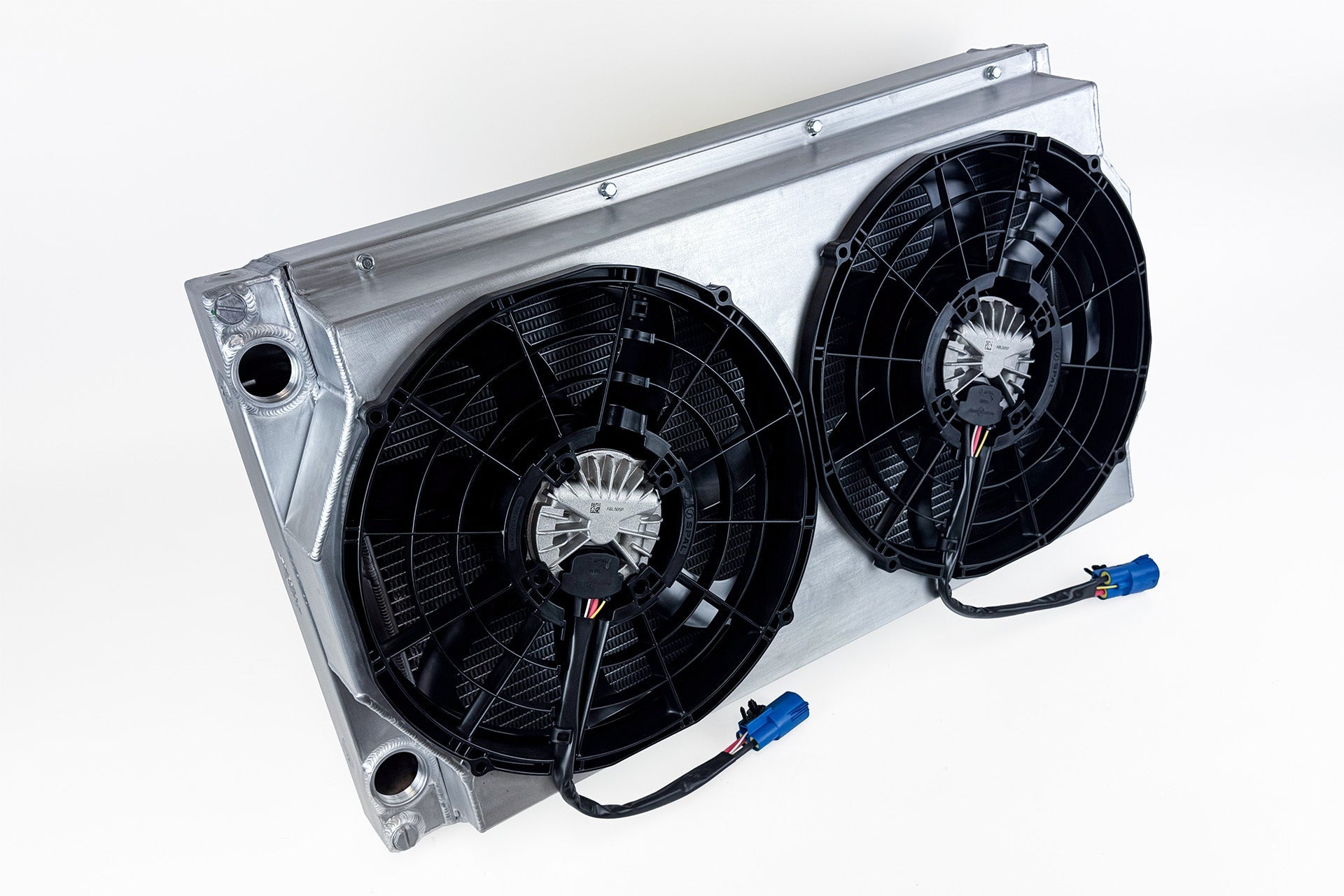

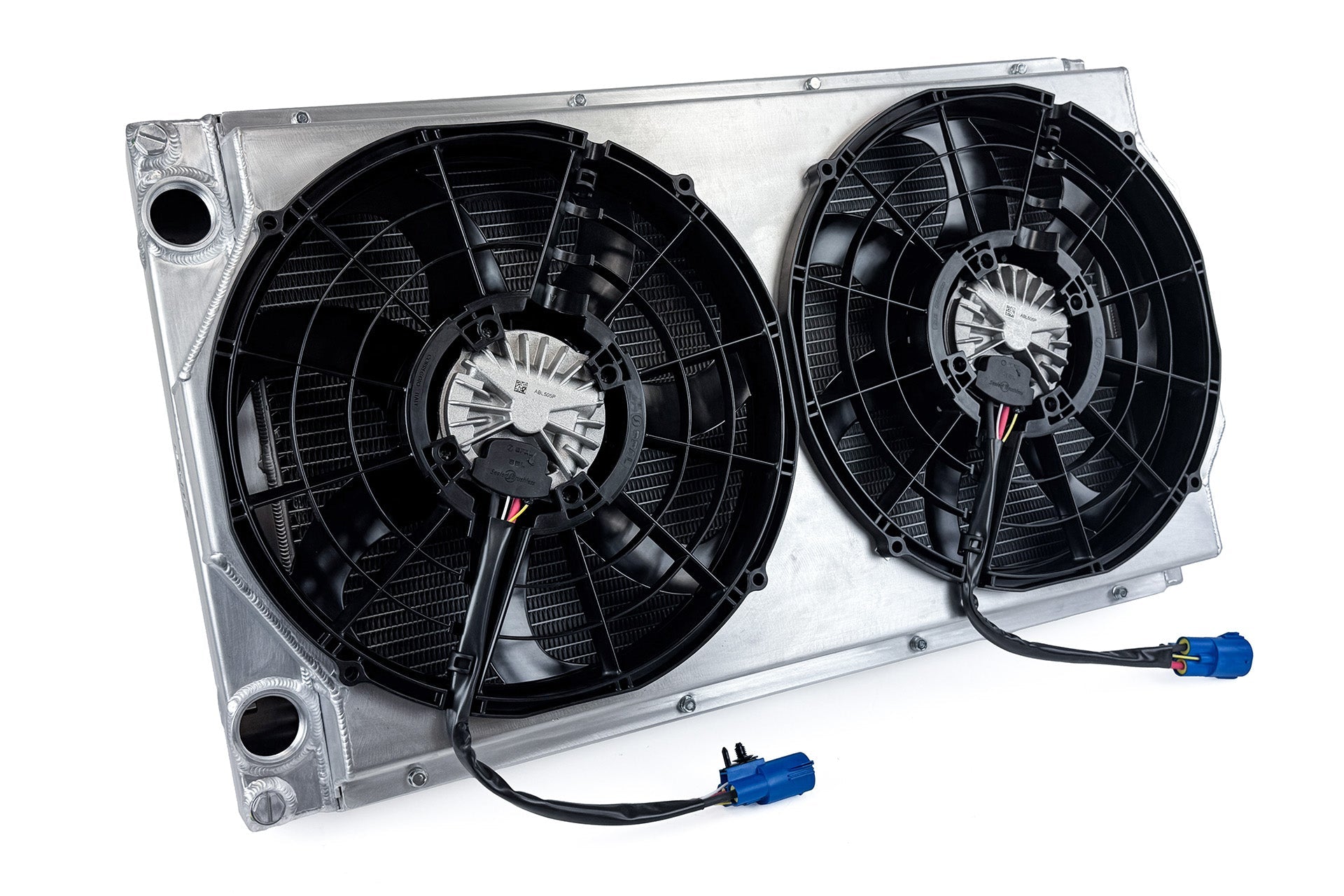

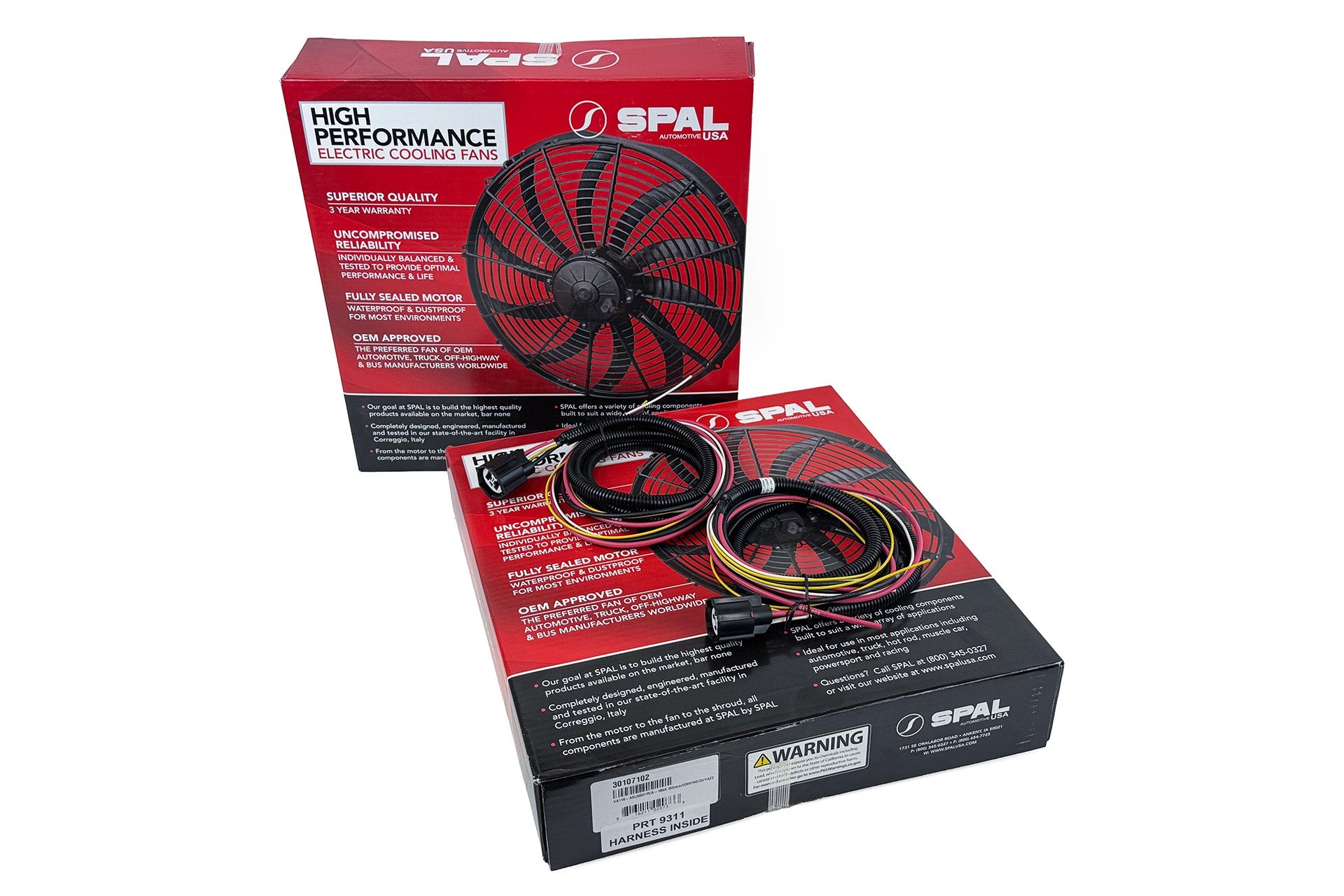

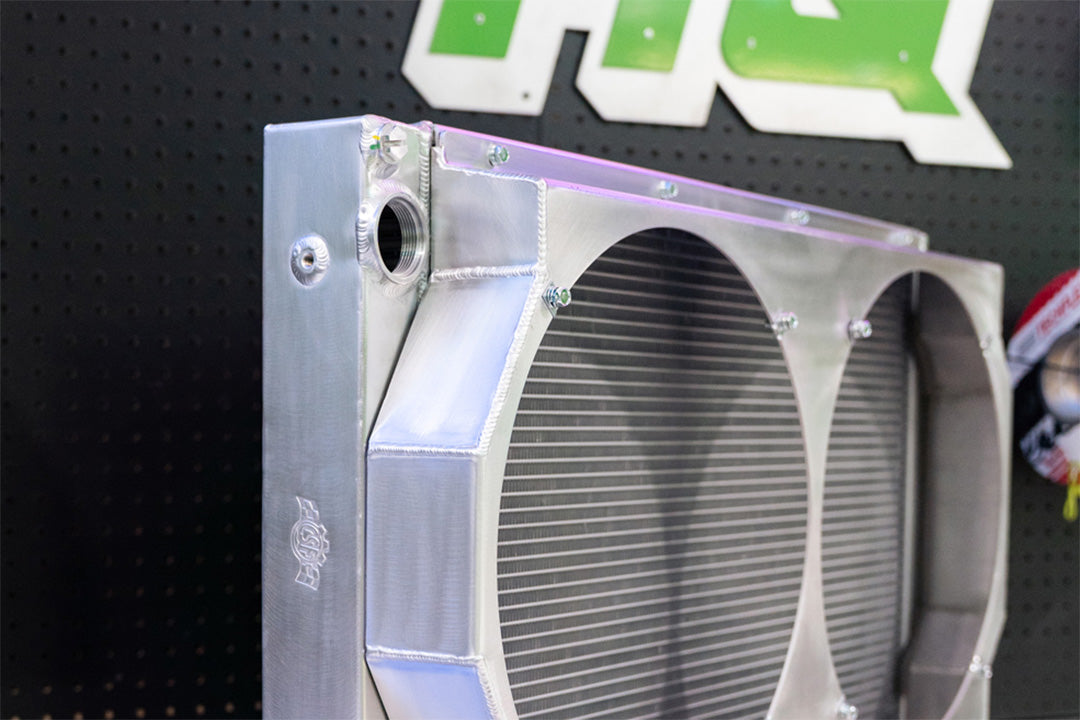

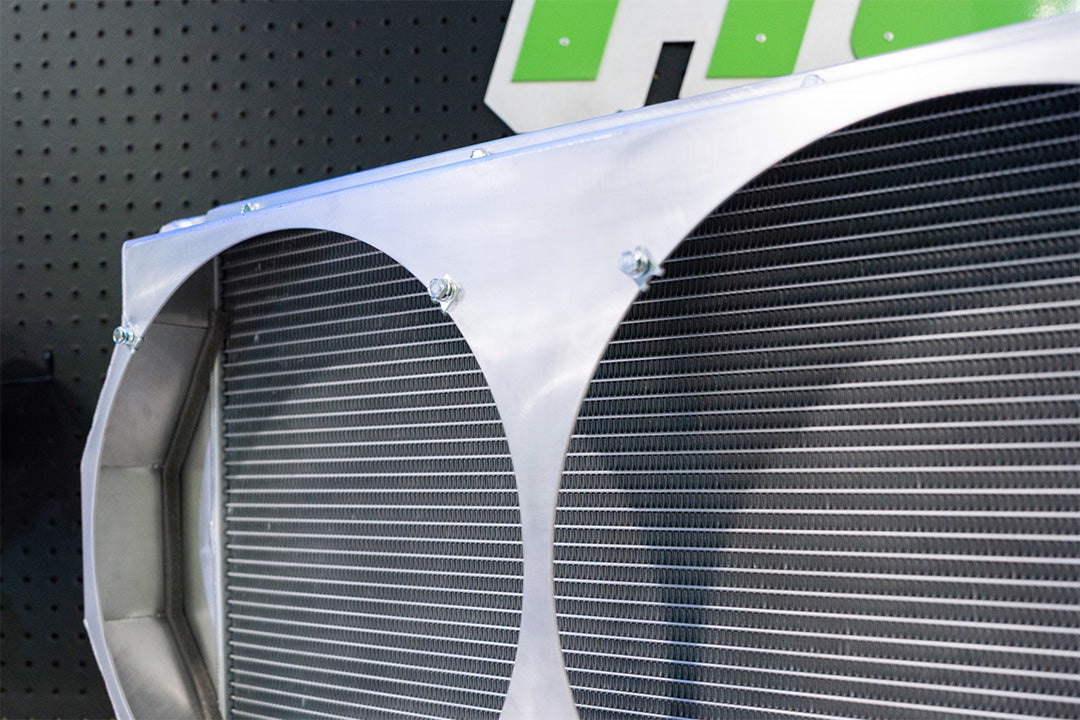

The radiator is offered in two versions: Radiator only (CSF#8378) and Radiator with Shroud + 14" SPAL Brushless Fans (CSF #8374). The shroud is made of TIG welded laser cut aluminum that bolts to either side of the radiator. The fans are 14 inch (355mm) SPAL ABL505P 12V Brushless Puller Fans (SPAL 30107102). Each fan is capable of moving 2395 CFM (4060 m3/h) of air for a combined total of 4790 CFM (8120 m3/h).

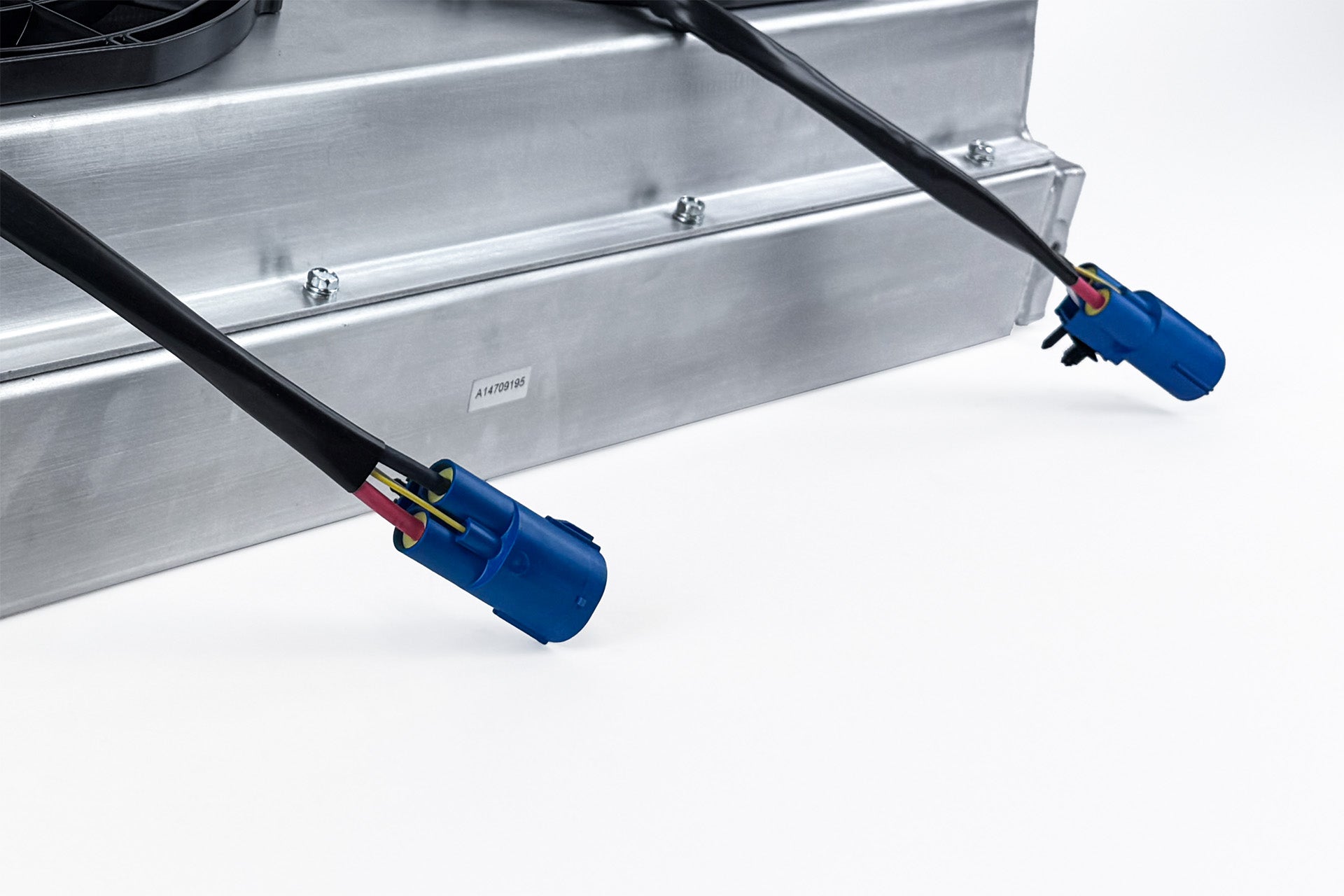

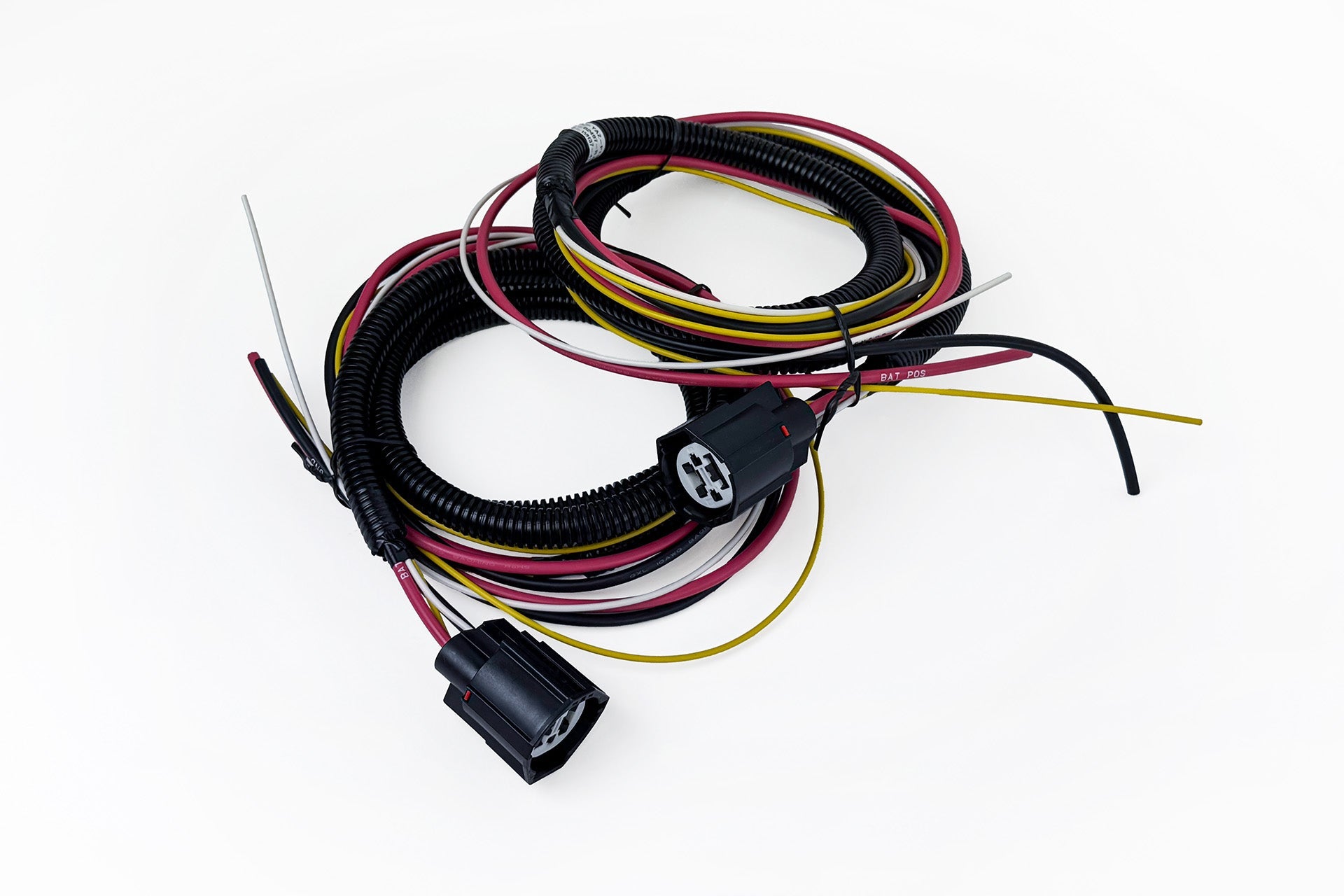

Most aftermarket fan kits don't include the jumper harnesses (pig tails) and rely on the customer to source their own or rewire in the factory connectors. While this works when replacing factory cooling fans, custom race setups can't always rely on this method. Especially when the radiator will not be mounted in the factory location. CSF includes the jumper harnesses (SPAL SBL-YAZ-PT10) with the #8374 to make the wiring process as easy as possible.
Features
- 100% All Aluminum TIG-Welded Construction

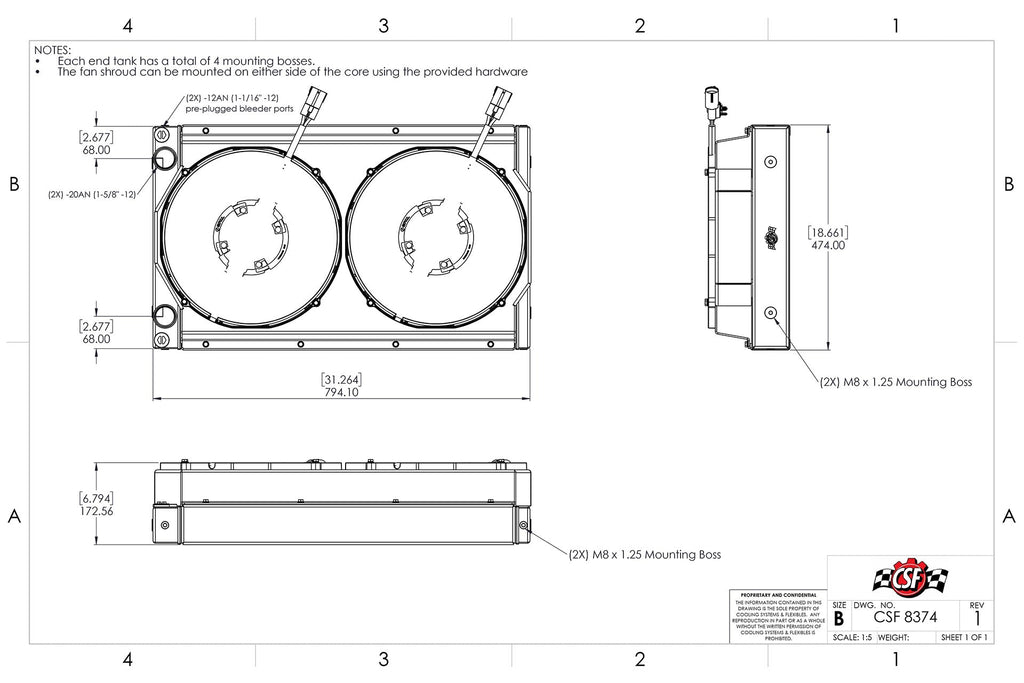

- Overall Dimensions Including Shroud & Fans (WxHxD): 794.10 x 470.00 x 172.56 mm (31.264 x 18.661 x 6.749 inches)
- Overall Dimensions Radiator Only (WxHxD): 794.10 x 470.00 x 90.00 mm (31.264 x 18.661 x 3.543 inches)
- 2-Row - 68mm Ultra-High-Performance Dual Pass Core: 705 mm L x 448 mm H (27.75 x 17.5 inches)
- 45 Rows of 8mm Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- 44 Rows of Cooling Tubes with CSF's Exclusive B-Tube Technology

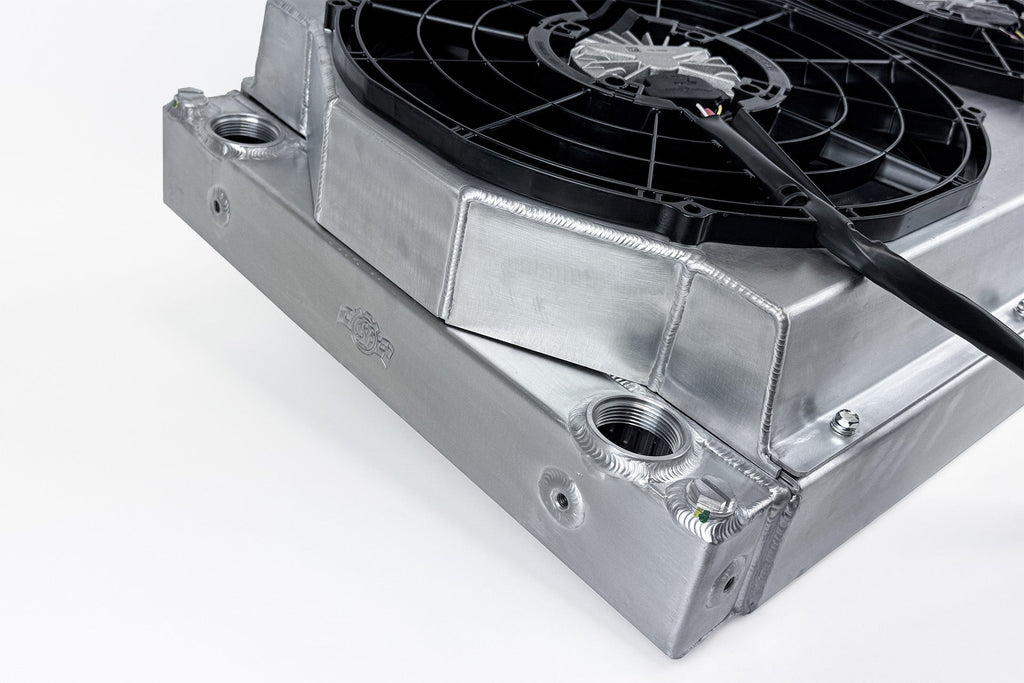

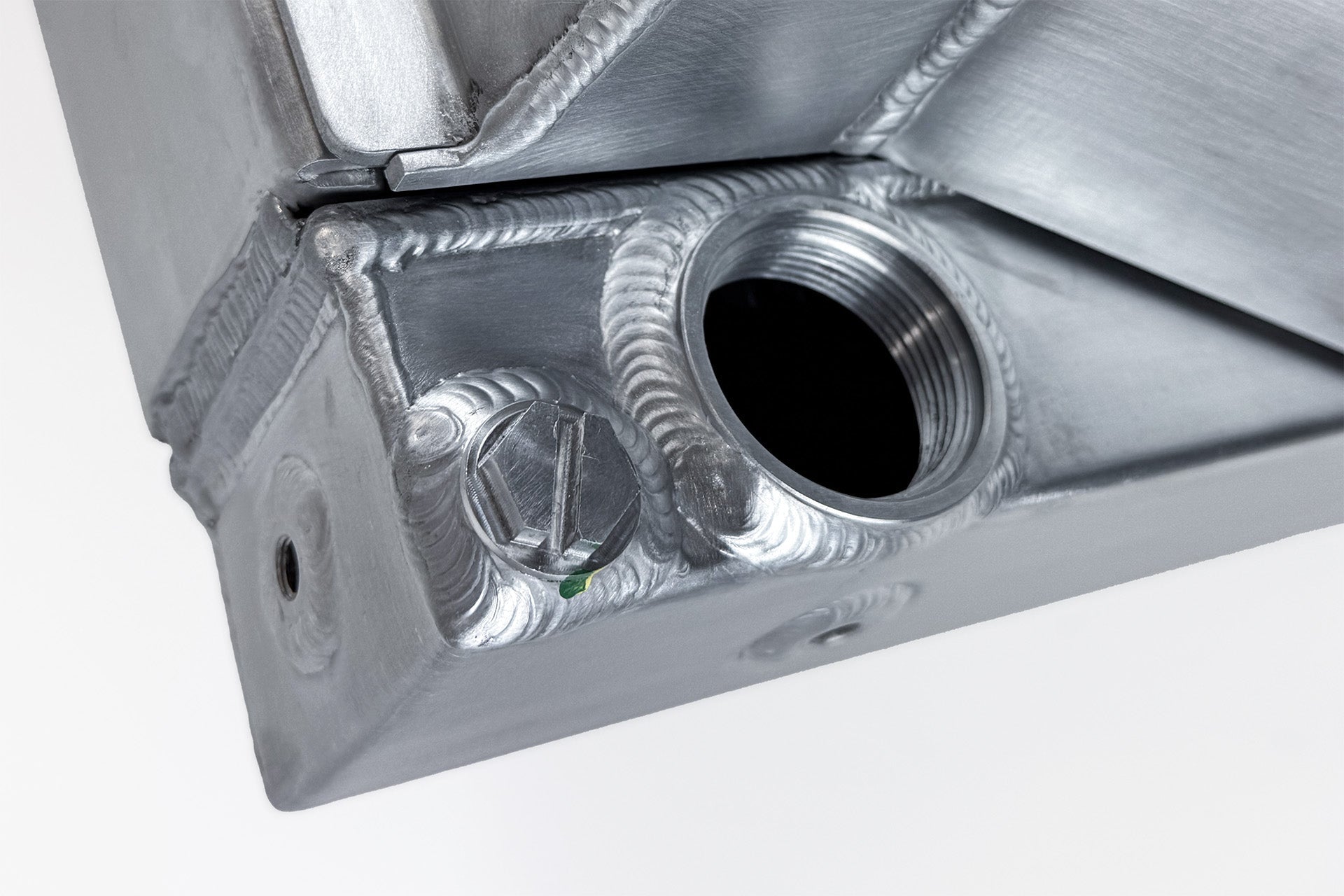

- Inlet/Outlet: -20AN (1 5/8" - 12) Threaded female ORB bosses - Fittings NOT Included
- 8 total M8x1.25 Mounting Bosses (4 per tank) for mounting versatility
- 2 -12AN (1 1/16"-12) ORB ports for sensor mounting, overflow or expansion tank mounting, and/or bleeding - Fittings NOT Included - only plugs
- Removable Fan Shroud - Can Be Mounted on Either Side of the Core with included hardware
- Dual 14" 500W SPAL Brushless Fans - Total of 4790 CFM (SPAL 30107102)
- Includes Two Jumper Harnesses for the SPAL Fans (SPAL SBL-YAZ-PT10)
- Hand Brushed Satin Finish
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Applications
| Year Range |
Make |
Chassis Code |
Model |
Trim |
Engine / Trans / Etc |
Notes |
|
Universal |
- |
- |
- |
- |
- |
|
- |
- |
- |
- |
- |
Universal |
OEM Part Numbers
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit the CSF Warranty Page
SKU# 8374 Warranty Term: 2 years
