CSF has decades of experience designing and manufacturing A/C Condensers, and has once again applied modern design and manufacturing techniques to these Ferrari units. The result is a condenser that fits perfectly, outperforms the factory system by a significant margin, and costs less than a new OEM unit.

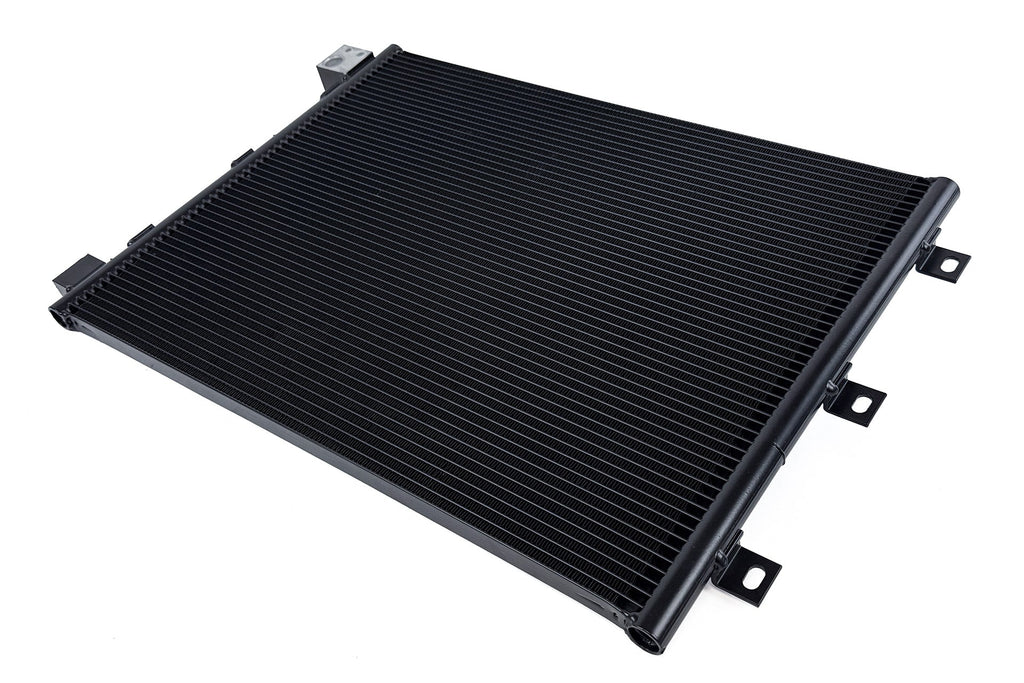

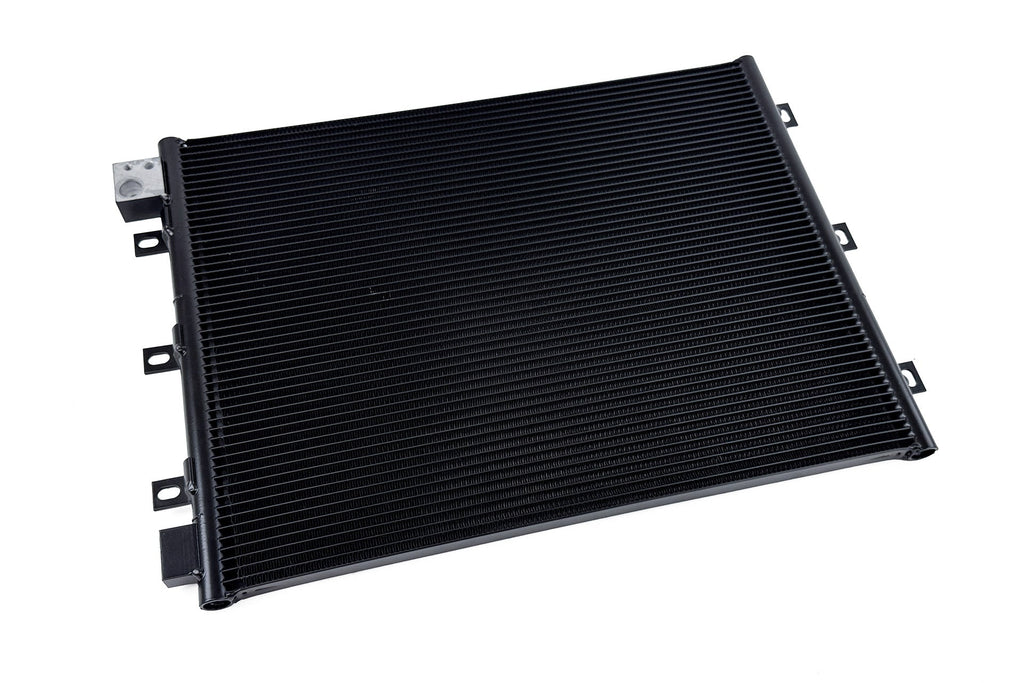

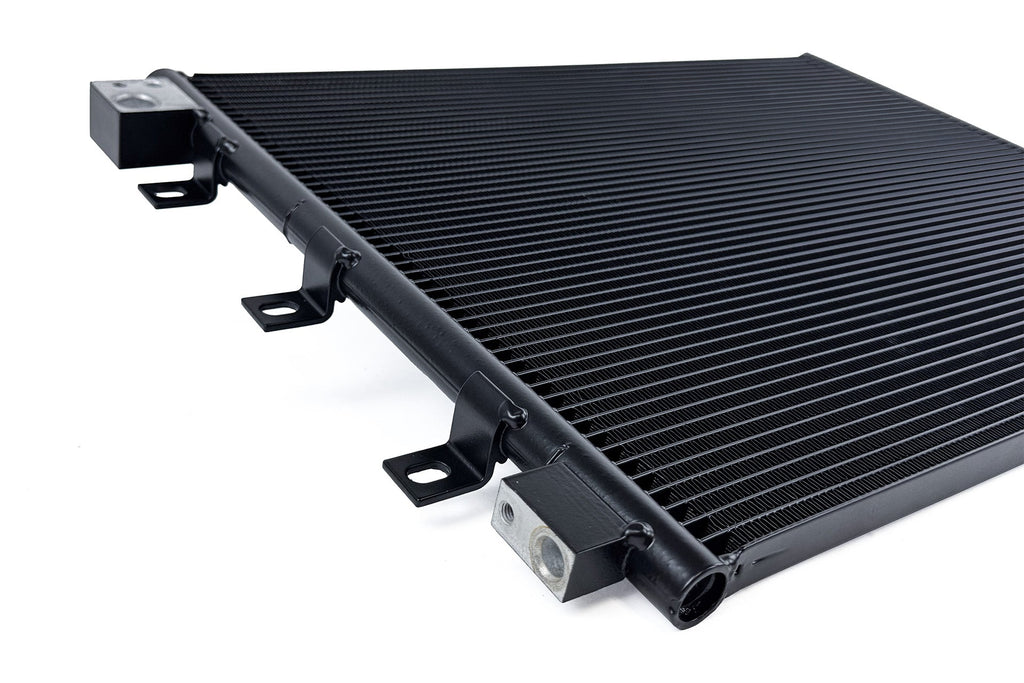

The Ferrari 458 Condenser utilizes a modern parallel-flow core design similar to the original OE unit. However, the CSF 16mm 14-channel microtube core offers better flow and more surface area contact for superior heat transfer. The 5.4mm tall multi-louvered fins further improve heat transfer over the basic fin design of the OE unit. Together, these features offer better heat dissipation for the refrigerant while increasing airflow to the radiator behind it.

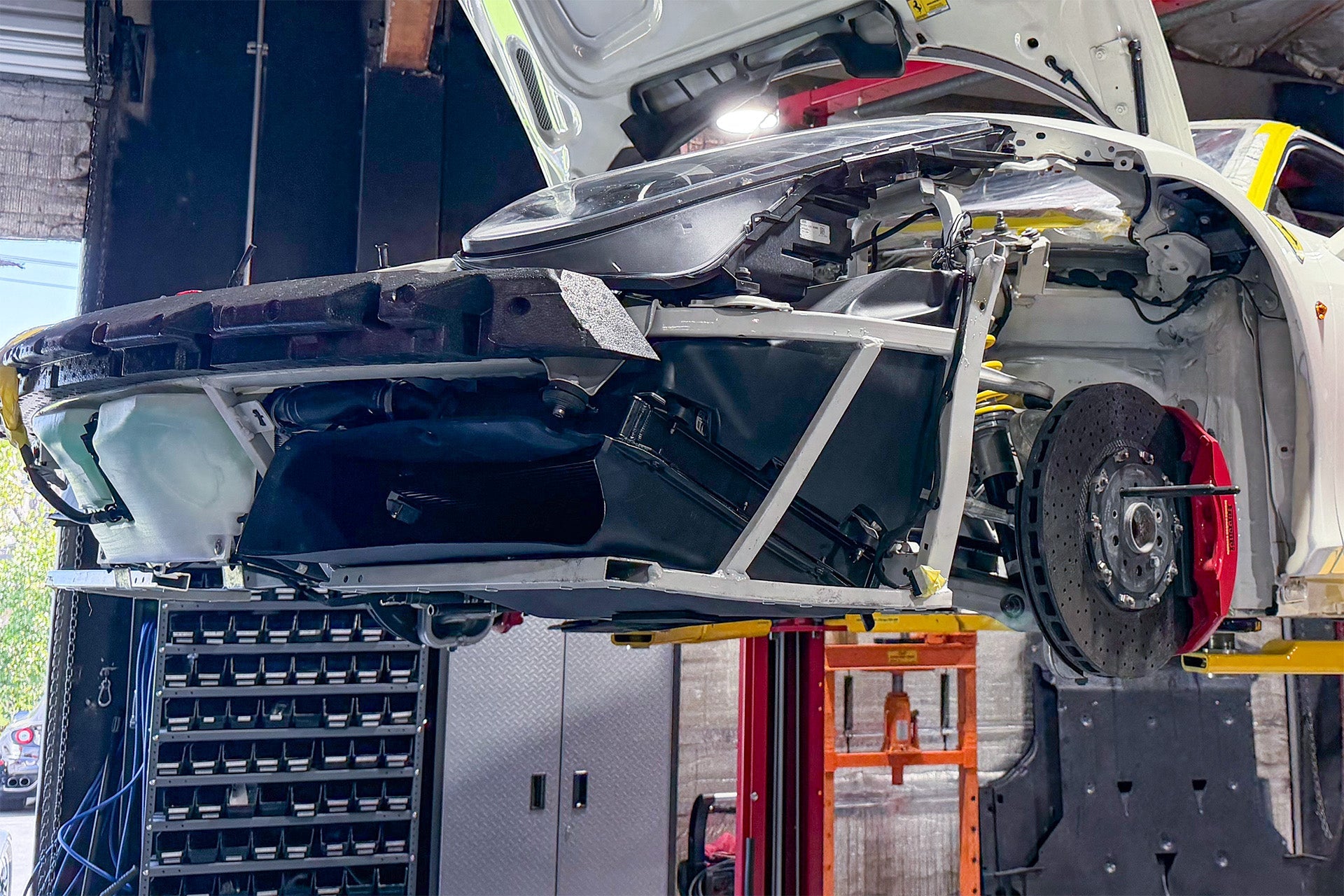

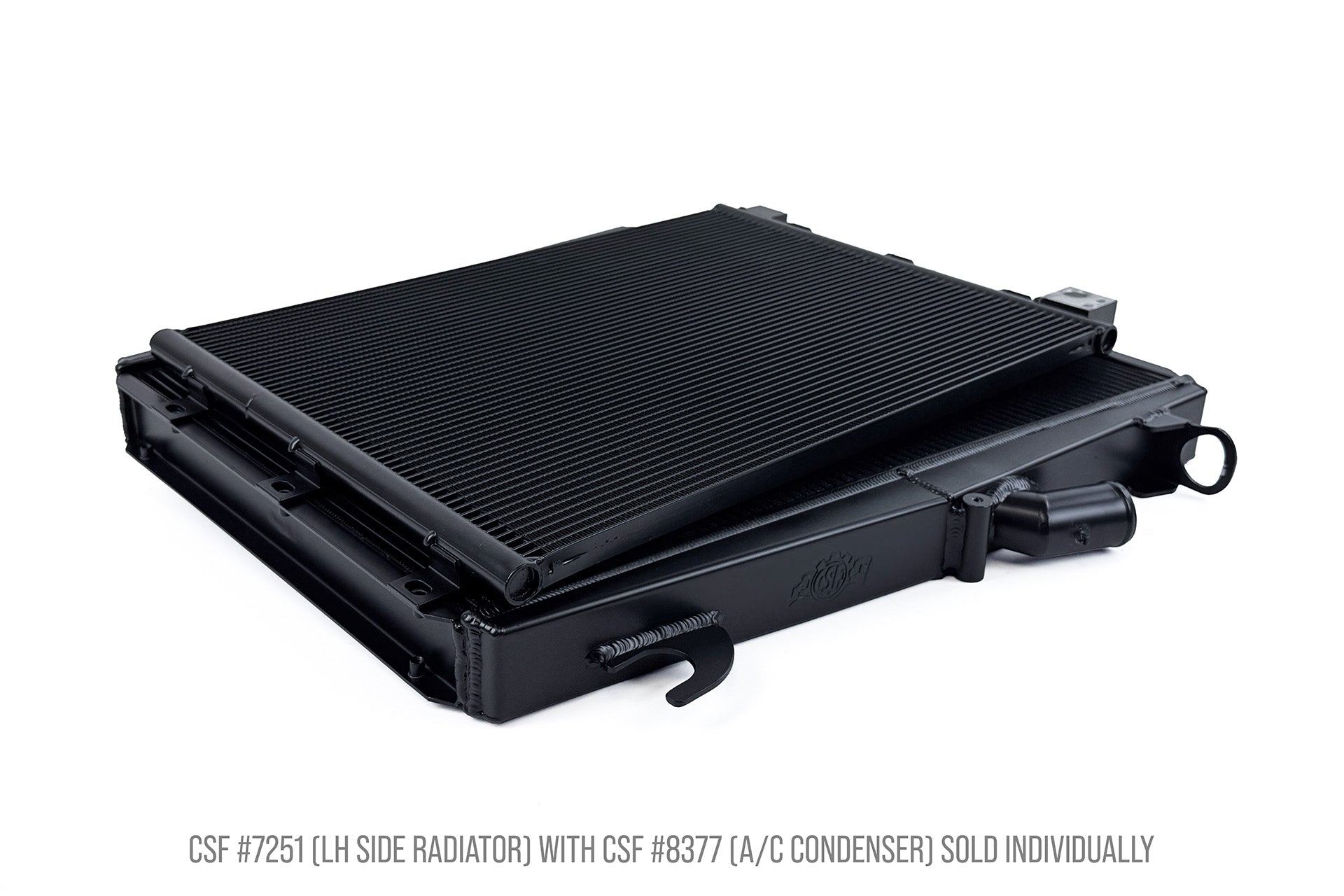

Whether your original condenser is dinged up or clogged from normal wear and tear, or it's slowly leaking due to age, CSF's OEM+/Performance A/C Condenser is a no-brainer. It is a straight forward plug-and-play installation, more efficient, and built to last. If you are already replacing the radiators, it is a good time to replace your old condenser while the front end is apart for the job, saving you more on labor costs.
Features
- Made with a Dual Pass Cross Flow CSF A/C Parallel Condenser Core
- Super-High Pressure 16mm 14-Channel Microtube for Optimal Flow and Maximum Surface Area Contact
- 51 Rows of Cooling Tubes and paired with 52 Rows of 5.4mm Tall Multi-Louvered Fins

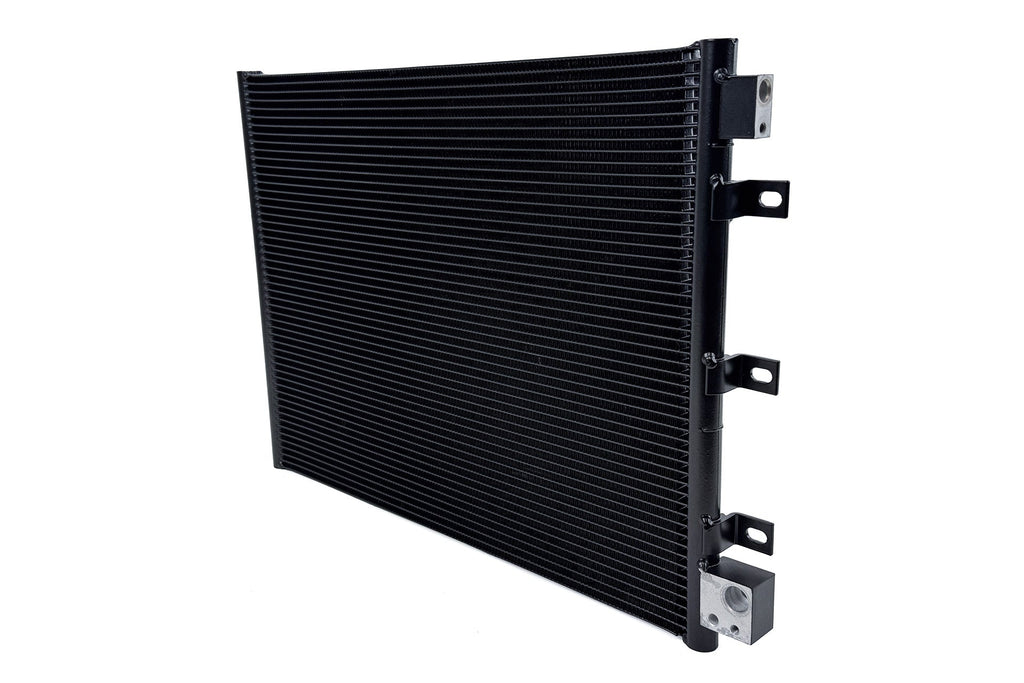

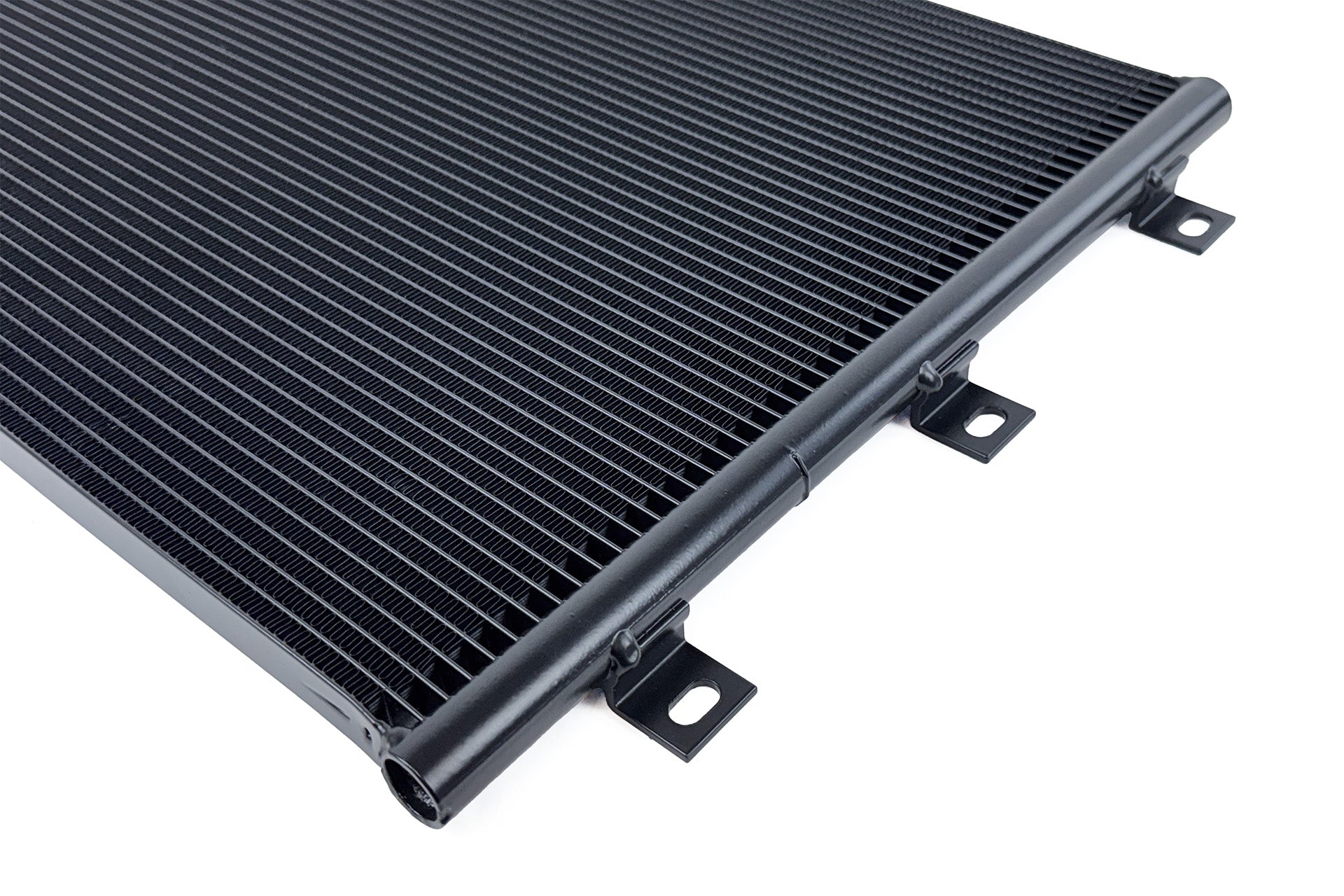

- Laser Cut Mounting Brackets and OEM Style Block Fitting Connector
- 100% All Aluminum Construction
- Satin Black Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Applications
| Year Range |
Make |
Chassis Code |
Model |
Trim |
Engine / Trans / Etc |
Notes |
| 2010-2015 |
Ferrari |
- |
458 Italia |
- |
4.5L V8 |
- |
| 2012-2015 |
Ferrari |
- |
458 Spider |
- |
4.5L V8 |
- |
| 2015 |
Ferrari |
- |
458 Speciale |
- |
4.5L V8 |
- |
| 2016-2019 |
Ferrari |
- |
488 GTB |
- |
Turbocharged 3.9L V8 |
- |
| 2019-2021 |
Ferrari |
- |
488 Pista |
- |
Turbocharged 3.9L V8 |
- |
| 2019-2021 |
Ferrari |
- |
488 Pista Spider |
- |
Turbocharged 3.9L V8 |
- |
| 2016-2019 |
Ferrari |
- |
488 Spider |
- |
Turbocharged 3.9L V8 |
- |
| 2020-2022 |
Ferrari |
- |
F8 Spider |
- |
Turbocharged 3.9L V8 |
- |
| 2020-2022 |
Ferrari |
- |
F8 Tributo |
- |
Turbocharged 3.9L V8 |
- |
| 2020-2024 |
Ferrari |
- |
SF90 Stradale |
- |
Turbocharged 4.0L V8 |
- |
| 2021-2024 |
Ferrari |
- |
SF90 Spider |
- |
Turbocharged 4.0L V8 |
- |
| 2024-2026 |
Ferrari |
- |
SF90 XX Stradale |
- |
Turbocharged 4.0L V8 |
- |
| 2024-2026 |
Ferrari |
- |
SF90 XX Spider |
- |
Turbocharged 4.0L V8 |
- |
| 2026-2027 |
Ferrari |
- |
849 Testarossa |
- |
Turbocharged 4.0L V8 |
- |
| 2022-2027 |
Ferrari |
- |
296 GTB |
- |
Turbocharged 3.0L V6 |
- |
| 2023-2027 |
Ferrari |
- |
296 GTS |
- |
Turbocharged 3.0L V6 |
- |
| 2026-2027 |
Ferrari |
- |
296 Speciale |
- |
Turbocharged 3.0L V6 |
- |
| 2014-2017 |
Ferrari |
- |
LaFerrari |
- |
6.3L V12 |
- |
| 2023 |
Ferrari |
- |
Daytona SP3 |
- |
6.5L V12 |
- |
OEM Part Numbers
Warranty
Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit the CSF Warranty Page
SKU# 8377 Warranty Term: 2 years
